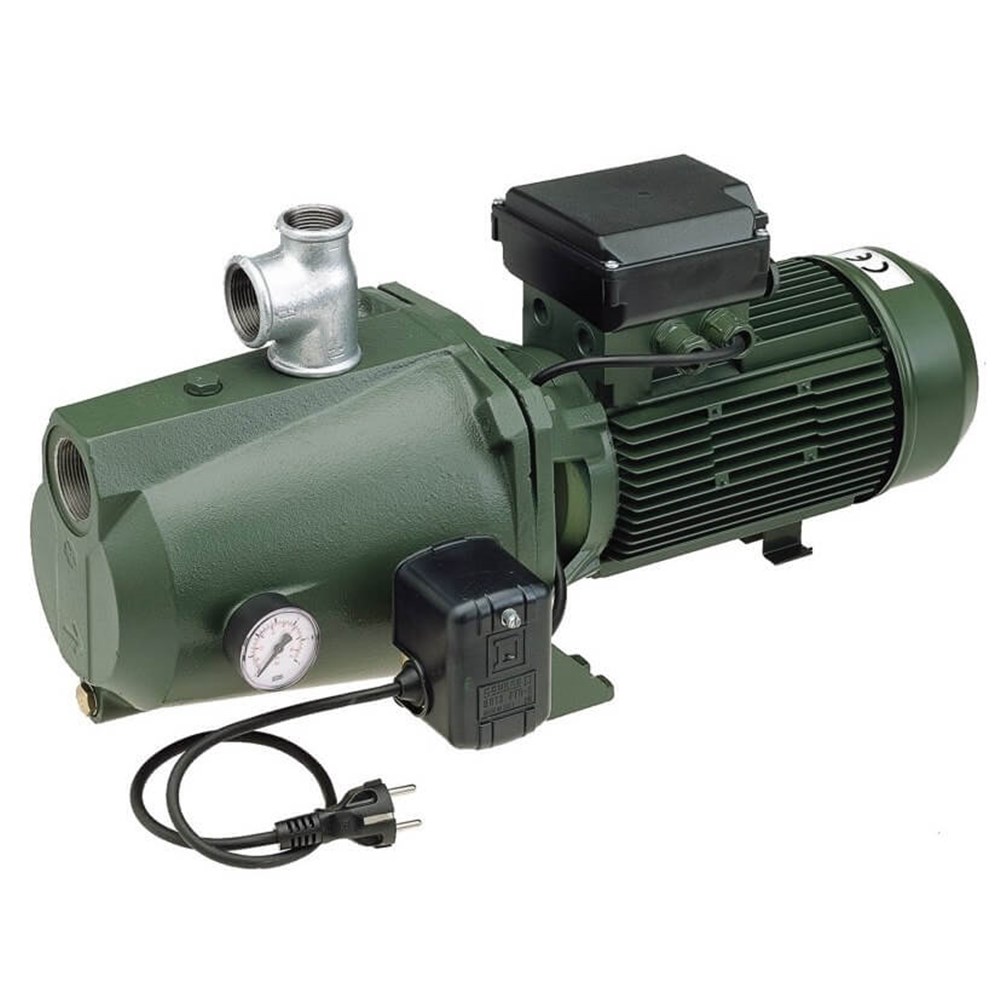

DAB-200MP - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 175L/MIN 41M 1.47KW 240V

Code: 701399

Print
Product Code
DAB-200MP
RRP: $1532.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Suitable For Tank Transfer
Bar 4.1 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 175 L/min
Hp 2 Hp
kPa 415 kPa
Kilo Watts 1.47 kW
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 41 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 240 V
Watts 1470 W
Pack Weight (KG):
27.50
Description
Self Priming Single and Multistage Cast Iron Jet Pressure Systems

1.47kW, 2.0hp, 240V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out

PRESSURE TANKS ARE SOLD SEPARATELY

Warranty

2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702210
DABSR00005203
702209
DABSR00005202
702211
DABSR00005205 6204DU
702212
DABSR00005206 31.5UF CABLE
702308
DABSR00005428
702207
DABSR00005199
702129
DABSR00004703
702219
DABSR00005213
702214
DABSR00005208
702220
DABSR00005221
702208
DABSR00005200
702217
DABSR00005211
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
