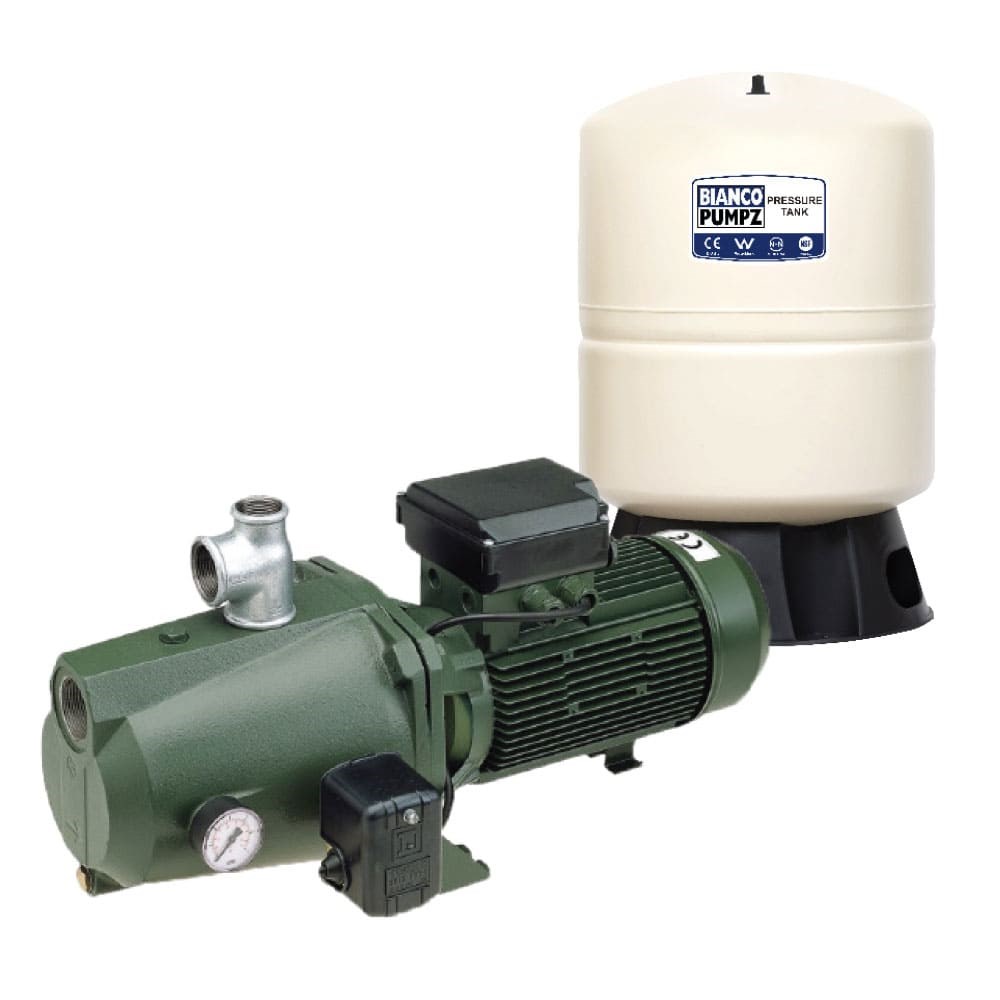

DAB-200MP - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 175L/MIN 41M 1.47KW 240V + 60L TANK

Order Code: 711565

Print
Product Code
DAB-200MP-50V
RRP: $2656.50 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Suitable For Clean Water
Bar 4.1 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 175 L/min
Hp 2 Hp
Kilo Watts 1.47 kW
Head Range Category b. 40 - 59 m
Max Head (m) 41 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1-1/4" BSPF outlet
Powered Electric
Taps 17 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 1470 W
Pack Weight (KG):
0.00
Description
Self Priming Single and Multistage Cast Iron Jet Pressure Systems

1.47kW, 2.0hp, 240V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 60L
  • Nominal Draw-off: 18L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 390 mm
  • Height: 592mm
  • Net Weight: 9.4Kg
  • System Connection: GI
  • Colour: Almond
Downloads
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

You may also need these:

Similar Products

Spare Parts
Code
Part Number
Description
702210
DABSR00005203
BOLT JET200M-N.1
702209
DABSR00005202
DABS R00005202 - O RING
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702212
DABSR00005206 31.5UF CABLE
DABS R00005206 - CAPACITOR 31.5UF CABLE
702213
DABSR00005207
DABS R00005207 Impeller Kit, includes Impeller, Diffuser, O-ring, Key
702216
DABSR00005210
DABS R00005210 SEAL JET200M-N.1
702218
DABSR00005212
DABS R00005212 VENTURI JET200M-N.1
702244
DABSR00005258
DABS R00005258 - FRONT BEARING
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
702220
DABSR00005221
PUMP BODY JET200M-N.1
702208
DABSR00005200
SUPPORT JET200M-N.1
702217
DABSR00005211
TERMINAL BOARD JET151M-N.3
