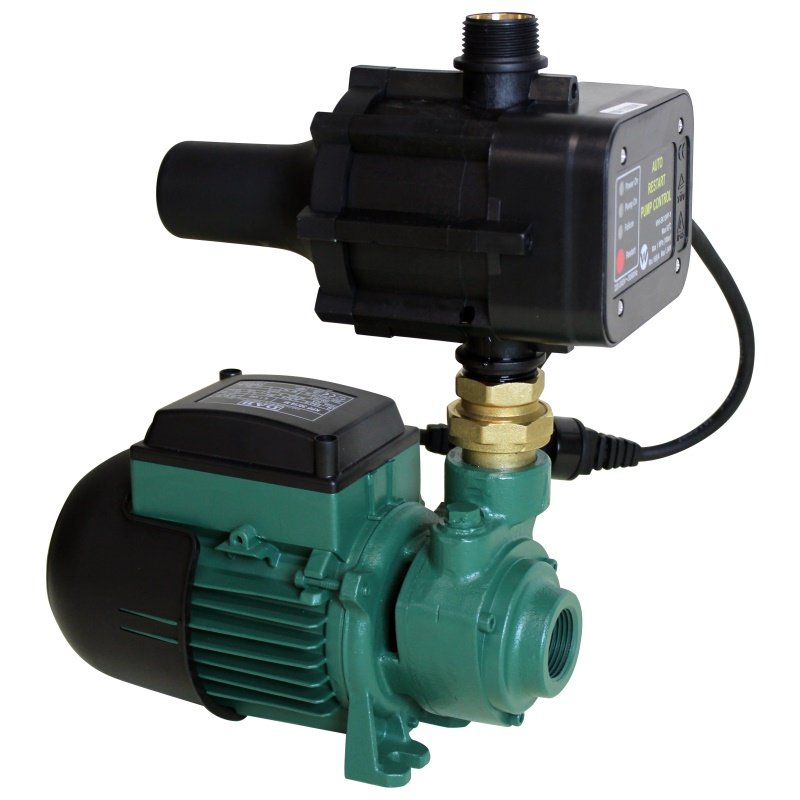

• DAB-KPF30-16MPCX - PUMP SURFACE MOUNTED PERIPHERAL WITH BUILT IN ELECTRONIC CONT 36L/MIN

DAB-KPF30-16MPCX - PUMP SURFACE MOUNTED PERIPHERAL WITH BUILT IN ELECTRONIC CONT 36L/MIN

Order Code: 701646

Print
Product Code
DAB-KPF30-16MPCX
RRP: $994.40 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 3.25 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 36 L/min
Hp 0.4 Hp
Kilo Watts 0.3 kW
Head Range Category a. 0 - 39 m
Max Head (m) 32.5 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Taps 2 Taps
Volts 240 V
Watts 300 W
Pack Weight (KG):
8.60
Description

Surface Mounted - Peripheral Turbine Pumps

Ideal for above ground water tanks and is suitable for portable clean water and domestic applications.

0.3kW, 0.4hp, 240V, max hd 32.5m, max flow 36L/m, 2 taps Ports 1” BSPF In, 1” BSPM Out

Warranty

2 Year DAB Pumps Warranty

Similar Products

Spare Parts
Code
Part Number
Description
702077
DABSR00004002
FAN ACTIVEEI25/30M-N.7
702327
DABSR00005457
IMPELLER KPF30/16M-N.1
702329
DABSR00005459
MOTOR KPF30/16M-N.1
702322
DABSR00005452
O RING KPF30/16M-N.1
702325
DABSR00005455
REAR BEARING KPF30/16M-N.1
702330
DABSR00005460
SEAL KPF30/16M-N.1
702455
DABSR00005676
TERMINAL BOARD KPF30/16M-N.1
