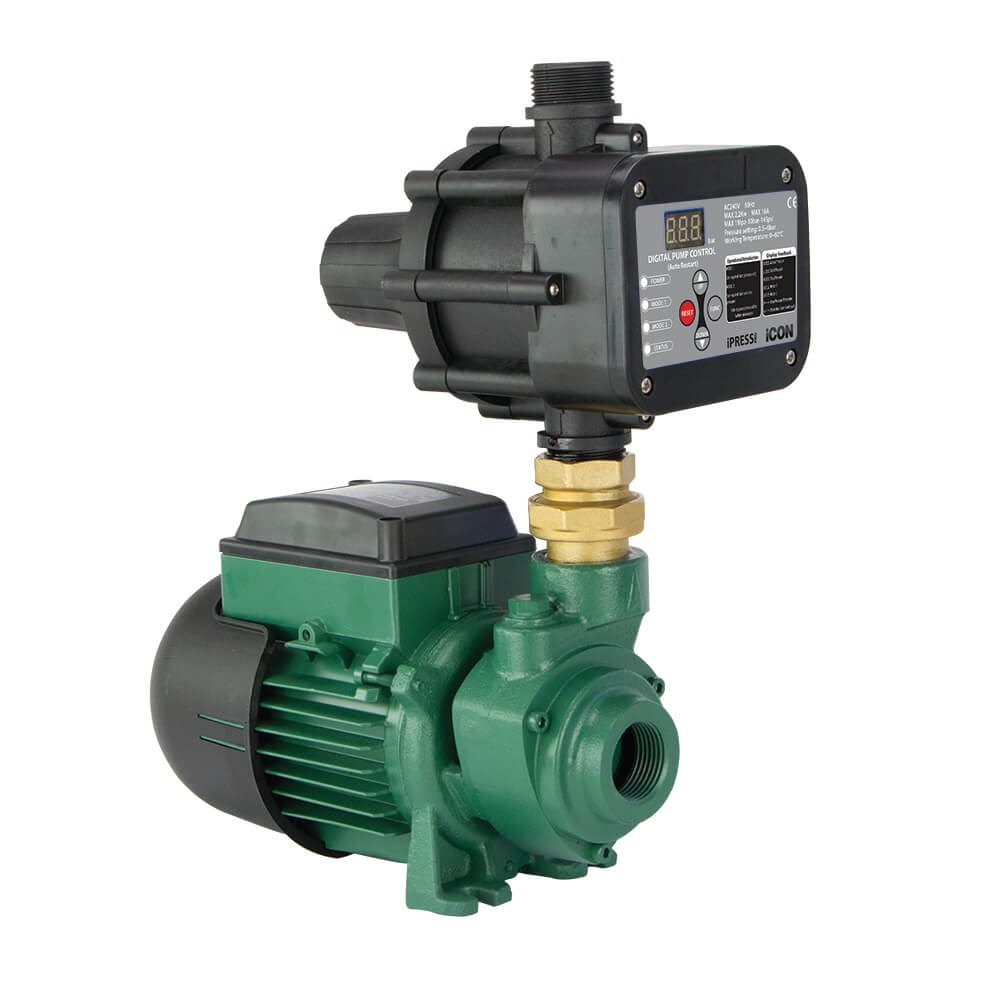

Code: 804781

Product Code
RRP: $636.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Bar 3.25 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 36 L/min
Hp 0.4 Hp
Kilo Watts 0.3 kW
Head Range Category a. 0 - 39 m
Head (max) 32.5 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Taps 2 Taps
Volts 240 V
Watts 300 W
Pack Weight

0.3kW, 0.4hp, 240V, max hd 32.5m, max flow 36L/m, 2 taps Ports 1” BSPF In, 1” BSPM Out


Surface Mounted - Peripheral Turbine Pumps

Ideal for above ground water tanks and is suitable for portable clean water and domestic applications.


2 Year DAB Pumps Warranty

Bianco iPRESS Controller Features

Refer to the iPRESS Controller page for more information

  • Starts and stops the pump automatically when the tap is open or closed. This means the operator does not need to turn off the pump after use.
  • Maintains a constant pressure during operation resulting in a reliable water supply when required
  • Automatically stops the pump in the situation of no flow (due to inlet pump blockage) and will automatically resume normal operation once the blockage is removed
  • Automatically restarts normal operation in the event of power being cut off to the control. This gives the homeowner peace of mind that the unit will continue to operate even if they are away on holidays
  • Controller is able to keep the pump running at flows as low as 0.5L/min to maintain water supply
  • Plug and play leads (IEC type) installed on the controller so that a licensed electrician is not required to replace the controller if required
  • Change between Mode 1 (Change Cut In pressure only) and Mode 2 (Change Cut In and cut out) via a single button push.
  • Real time indication of system pressure displayed so a separate in line pressure gauge is not required
  • Special non return valve to avoid water surging.
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
