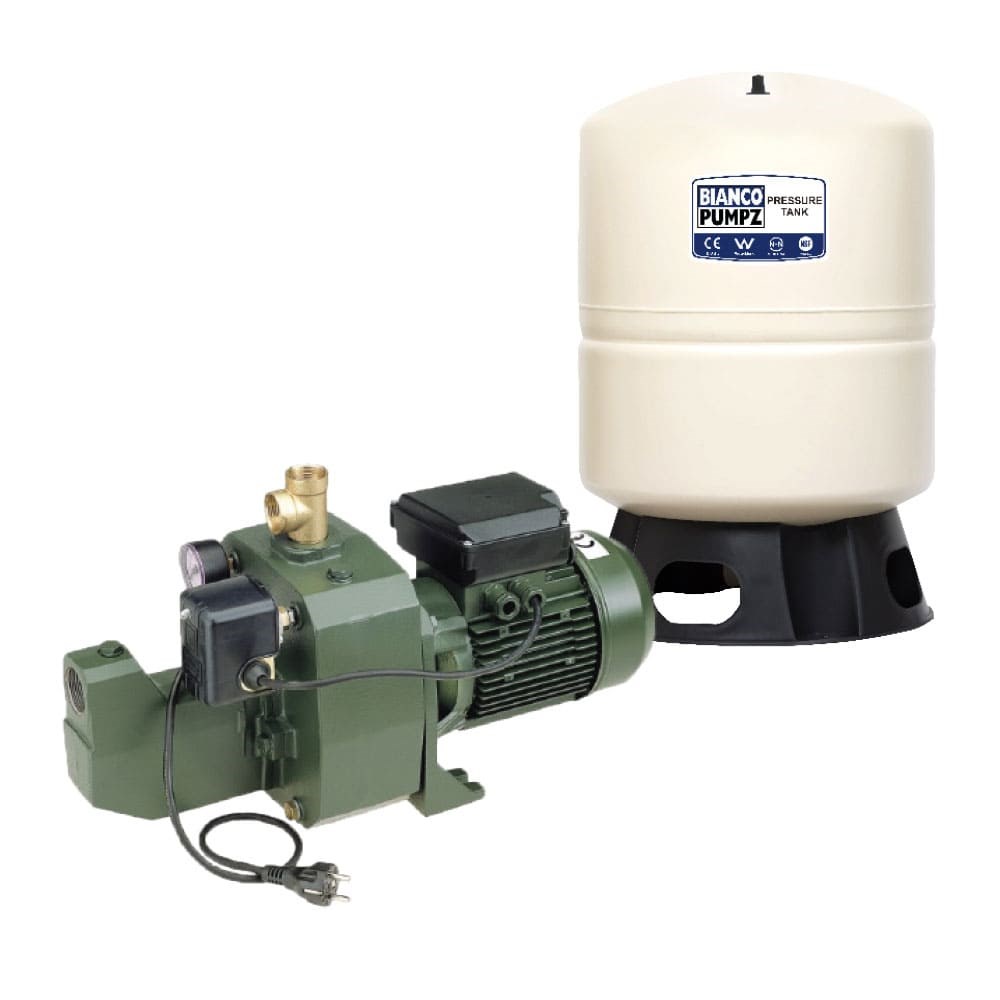

DAB-151MP-50V - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 75L/MIN 61M 1.1KW 240V + 60L TAN

Order Code: 701390

Print
Product Code
DAB-151MP-60V
RRP: $3036.44 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Suitable For Clean Water
Bar 6.1 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 75 L/min
Hp 1.5 Hp
Kilo Watts 1.1 kW
Head Range Category c. 60 - 99 m
Max Head (m) 61 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 7 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 1100 W
Pack Weight (KG):
0.00
Description
DAB Self Priming Cast Iron Jet Pressure Pumps

Includes a 60L Pressure Tank and Connection Kit

1.1 kW, 1.5 hp, 240V, Automatic with pressure switch, max hd 62m, max flow 120L/m

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 60L
  • Nominal Draw-off: 18L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 390 mm
  • Height: 592mm
  • Net Weight: 9.4Kg
  • System Connection: GI
  • Colour: Almond
Downloads
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
WaterMark Approved
WaterMark Approval Logo

The WaterMark Certification is Australia’s recognised certification scheme for plumbing and water-related products, demonstrating that a product meets the relevant Australian Standards and regulatory requirements for its intended application. A WaterMark Lead-Free certification provides assurance that the product complies with applicable lead-content requirements for products in contact with drinking water, helping to protect water quality and providing confidence in safe, compliant potable water installations.

Read more about WaterMark Approvals

You may also need these:

Similar Products

Spare Parts
Code
Part Number
Description
702211
DABSR00010381 6204DU
DABS R00005205 REAR BEARING
702212
DABSR00005206 31.5UF CABLE
DABS R00005206 - CAPACITOR 31.5UF CABLE
702232
DABSR00005245
DABS R00005245 Impeller Kit, includes Diffuser, O-ring, Key, Impeller Nut, Spacer
702207
DABSR000010142
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
702228
DABSR00005241
MOTOR SHAFT DP151M-N.3
702252
DABSR00005274
PUMP BODY DP-M-N.3
702677
DABSR00007849
SEAL DP-M
702295
DABSR00005386
SUPPORT DP151M-N.3
