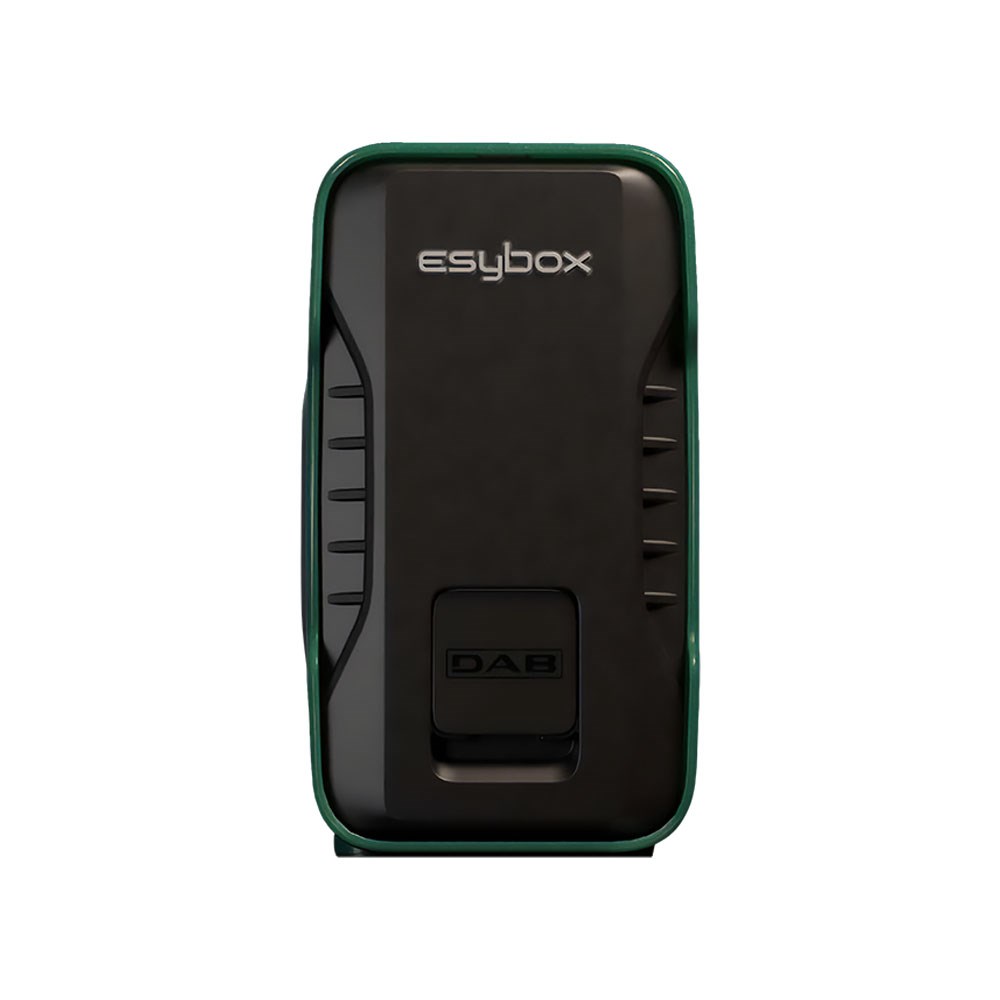

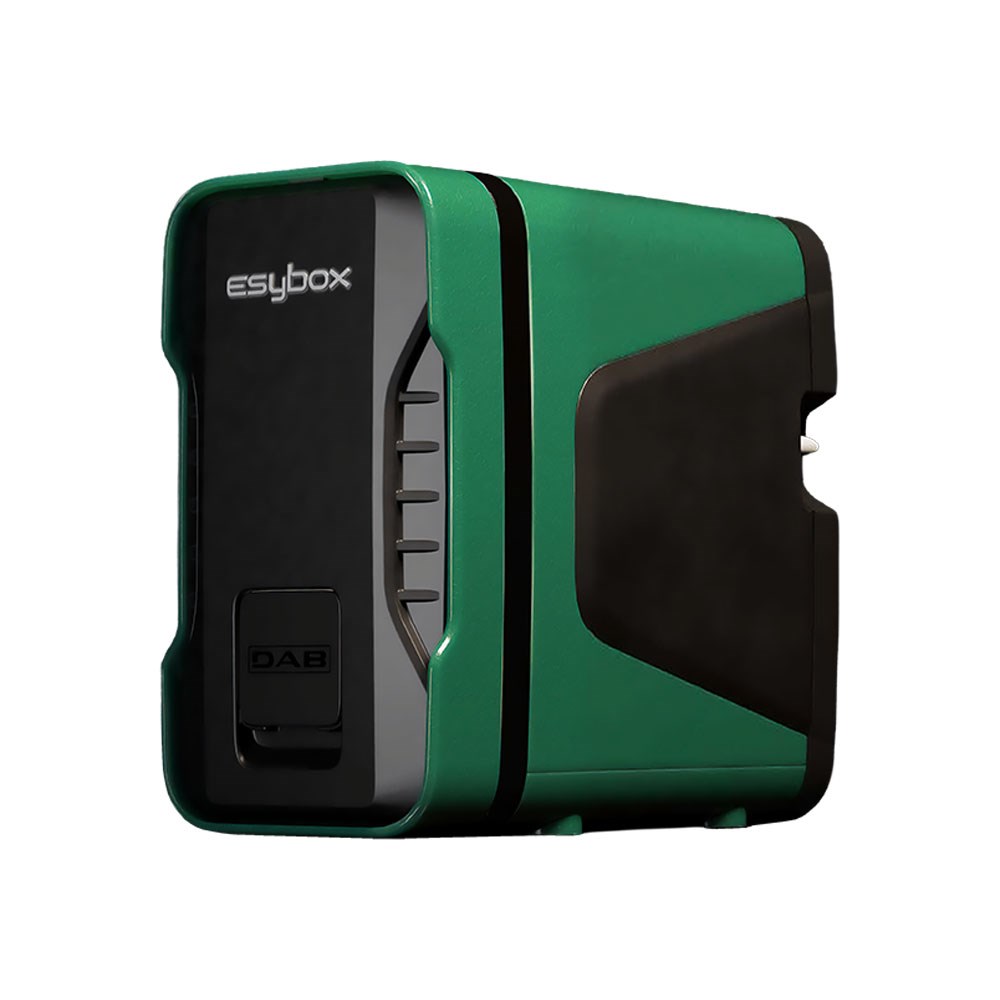

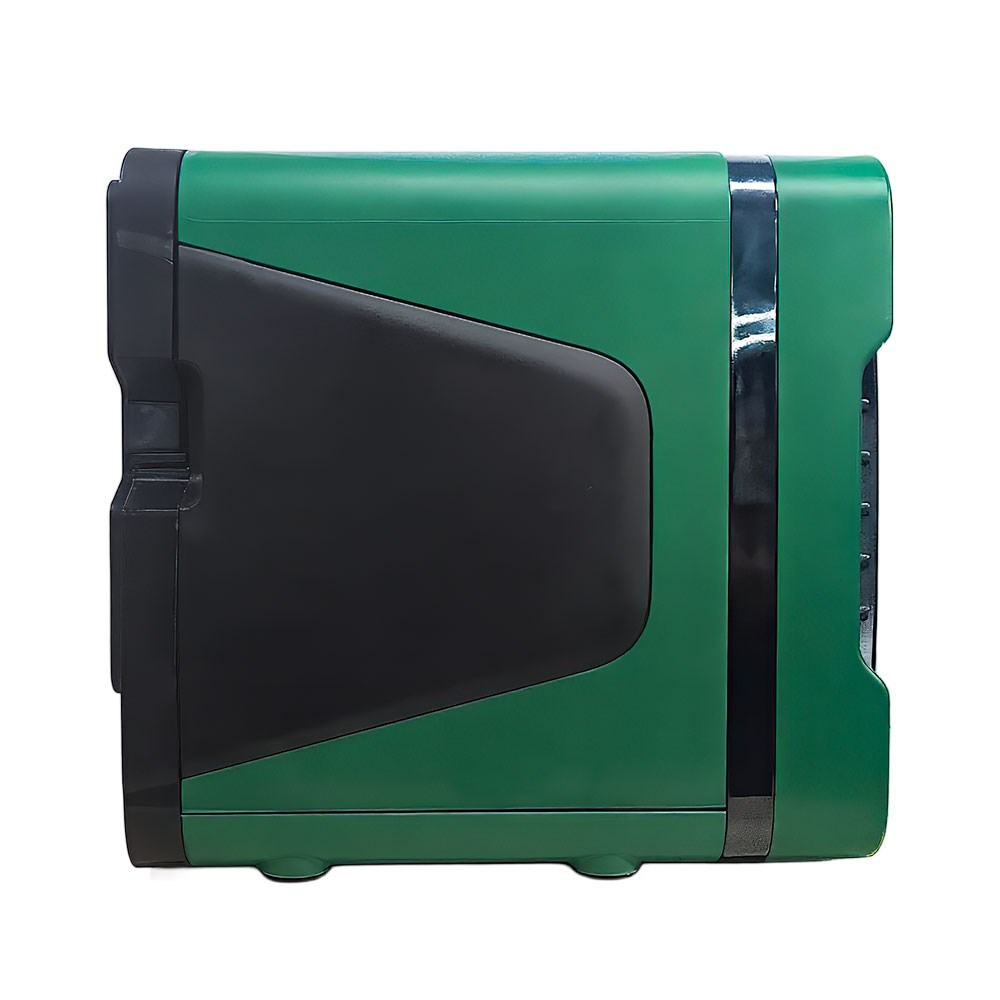

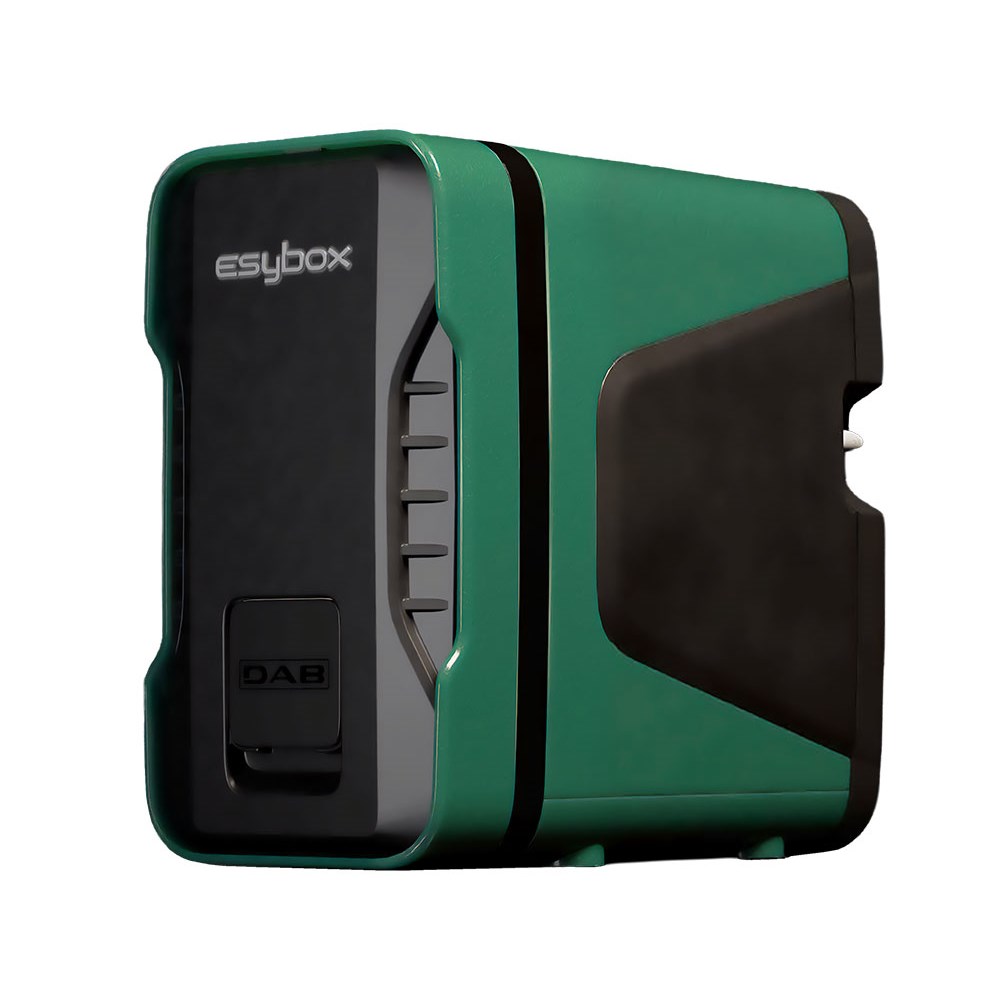

This electronic pressurisation system is designed for small residential environments for a single tap.
Advanced components ensure high performance, which include: an anti-cycling feature that detects leaks by monitoring the frequency of starts and stops; an automatic shut-off mechanism that activates in the event of dry running; an anti-freeze system – to prevent ice formation in the hydraulic components, the pump activates when temperatures drop below 5°C; and a motor-protection technology to prevent issues from prolonged inactivity. Note; not self-priming.
The adjustable connections facilitate quicker, easier and more flexible installation. Integrated connectivity enables users to configure settings via a smartphone and access cloud services without the need for additional accessories. Additionally, the remote control uses H2D technology to view and manage comfort features and parameters.
Features:
- Sound-absorbing ABS protective casings
- Technopolymer impellers
- Non-return valve with integrated temperature, flow and pressure sensors
- Water-cooled permanent magnet motor, ensuring quiet operation making it particularly suitable for home use
Applications:
- Apartments, especially on top floors where pressure often drops
- Granny flats & micro housing
- Residential bathroom extensions
- Areas in the home affected by water rationing
- Single taps with low pressure
- Backyard toiletse
| Operating Conditions |
| Maximum System Pressure |
7.5 bar (750 kPa) |
| Maximum Operating Pressure |
6 bar (600 kPa) |
| Liquid Temperature |
0º to +50º C |
| Maximum Ambient Temperature |
50º C |
| Max Head |
32m |
| Max Flow |
65 L/min |
|
| Electrical Data |
| Voltage |
230 V |
| Protection Level |
IP X5 |
| Insulation Class |
F |
|
| Construction |
| Materials |
- Composite outer casing
- Stainless steel shaft
- Technopolymer impeller and diffusers
|
|
