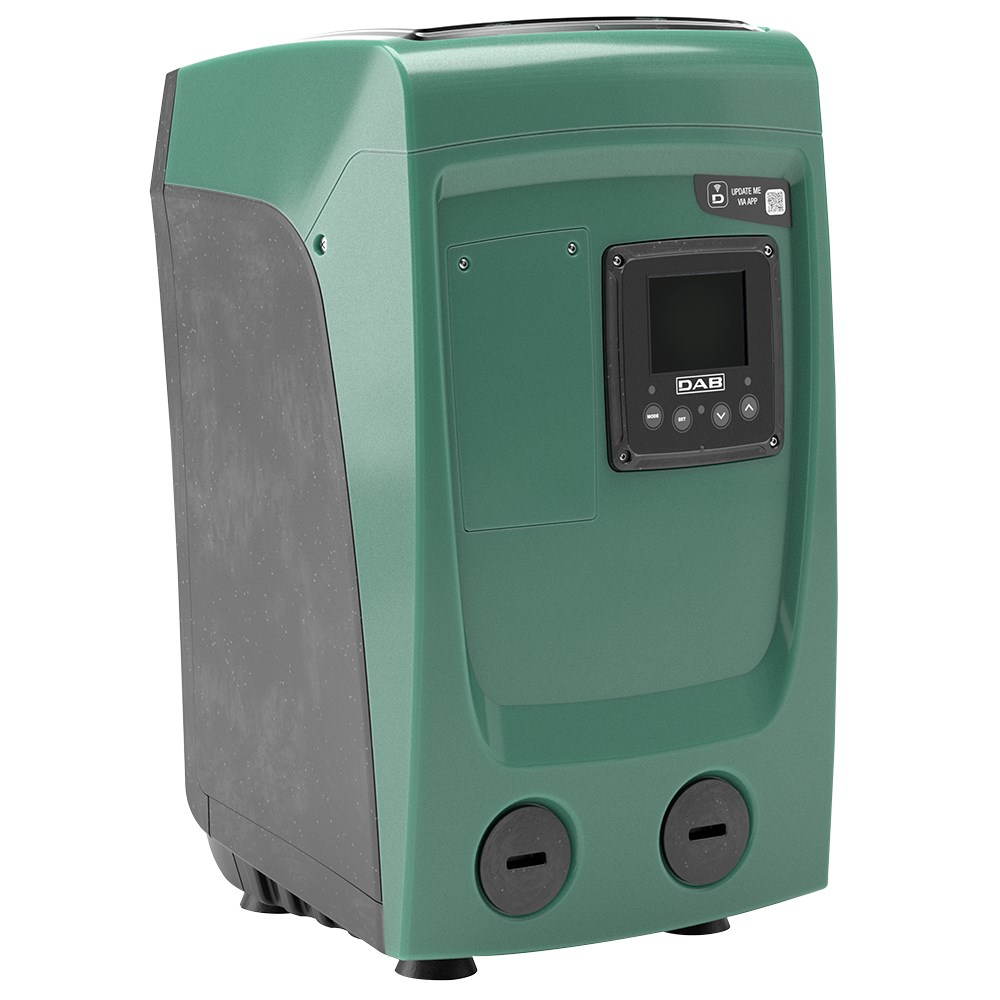

DAB-ESYBOX MINI3 - PUMP VARIABLE SPEED PRESSURE SYSTEM80L/MIN 50M 0.85KW 240V

Code: 805406

Print
Product Code
DAB ESYBOX MINI3
RRP: $1524.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Product Type Pressure System
Brand DAB Pumps
Suitable For Clean Water
Bar 5 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 80 L/min
Hp 1.1 Hp
kPa 500 kPa
Kilo Watts 0.85 kW
Head (max) 50 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 8 Taps
Volts 240 V
Warranty (months) 48 Months
Watts 850 W
Pack Weight
15.00
Description
0.85kW, 1.1hp, 240V, max hd 55m, max flow 80L/m, 8 taps. Ports 1”BSPF In, 1” BSPF Out
Features

E.SYBOX MINI3 is the DAB compact automatic pressurisation system for the water supply of a single dwelling. E.SYBOX MINI3 guarantees the comfort of constant pressure (Pressure Set Point adjustable from 1 up to 5,5 bar) inside the system, and energy savings thanks to the inverter technology. Suitable for use with drinking water, in domestic systems, and in gardening applications.

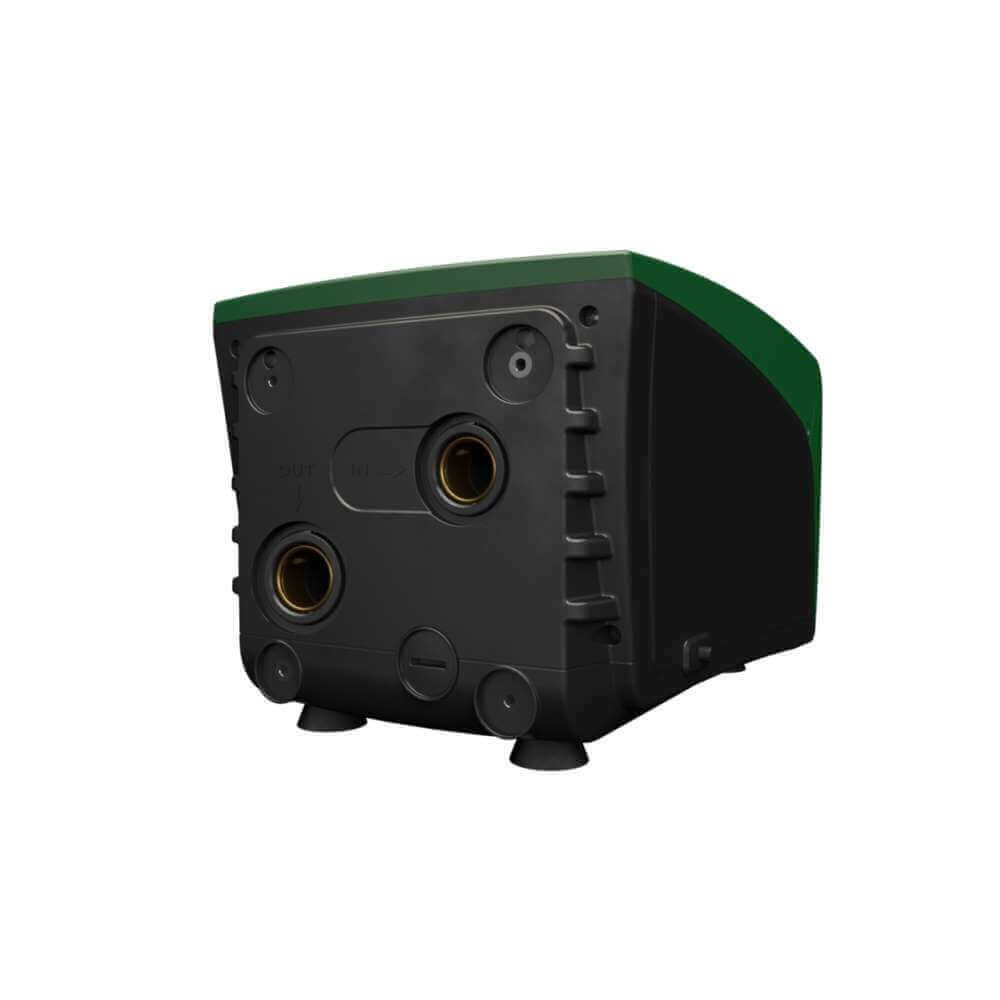

E.SYBOX MINI3 is an integrated system for water pressure boosting in domestic and residential applications. Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 1 litre.

E.SYBOX MINI3 does not require any additional components for its installation

View Brochure

APPLICATIONS

Apartments up to 3 floors, 2 bathrooms and 50m2 of garden.

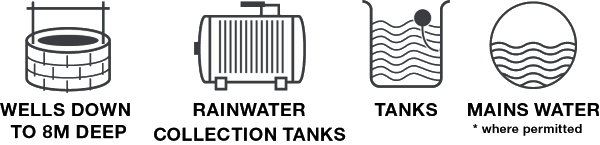

PUMPS WATER FROM




Product Video


BETTER ENERGY SAVINGS

Guarantees the comforts and savings of constant pressure (Set Point adjustable from 1 to 5.5 bar) in the system and up to 130 dollars a year* savings on energy bills thanks to the inverter technology.



CONSTANT PRESSURE

Thanks to inverter technology, once you have set the desired pressure, e.sybox mini3 maintains a constant pressure to all the water outlets served.



ULTRA LOW NOISE

The special water cooled motor, the inverter, the sound absorbing hulls, and the anti-vibration legs make the e.sybox mini3 booster set the second quietest booster pump on the market after it’s big brother e.sybox.

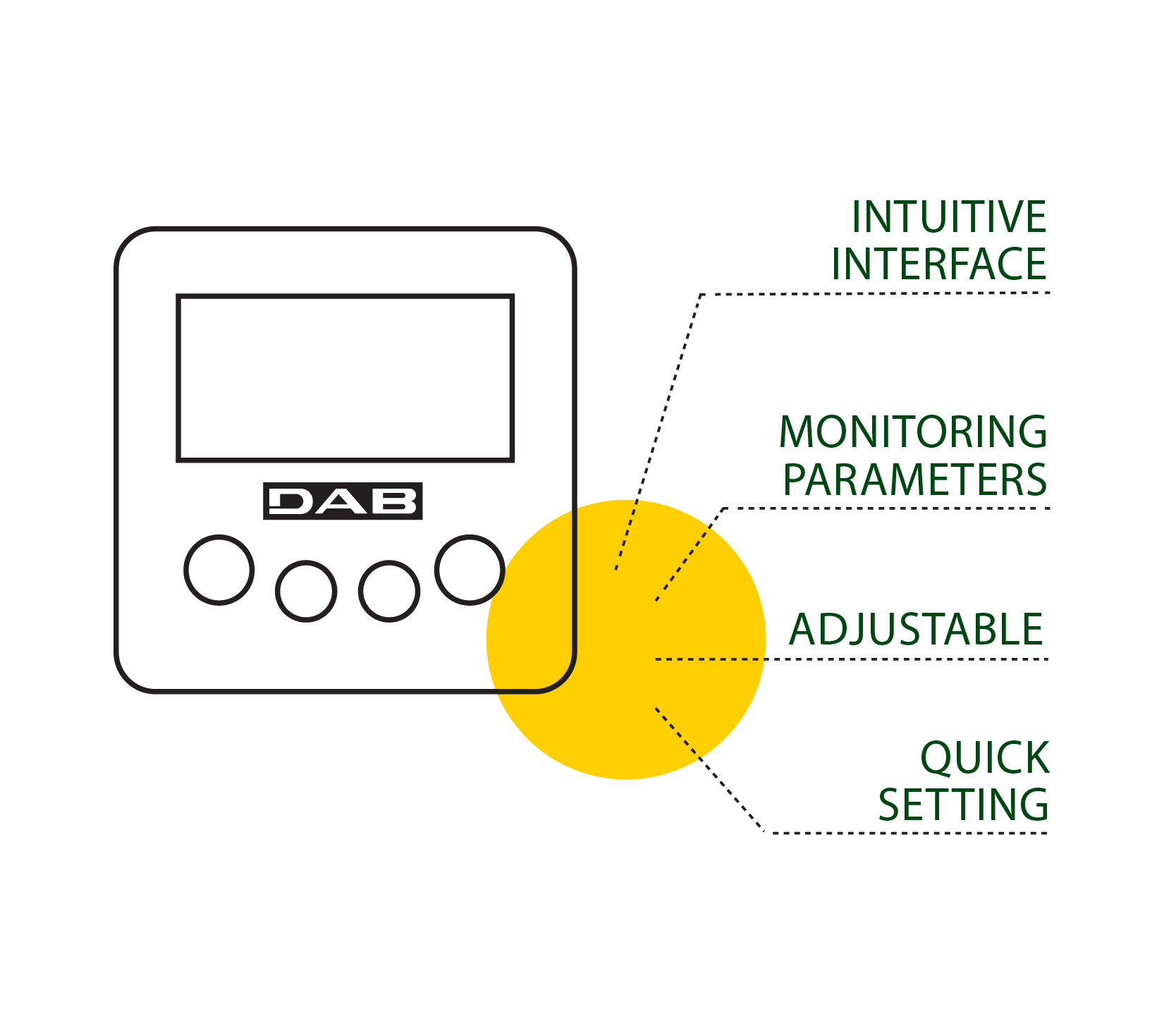

EASY TO USE

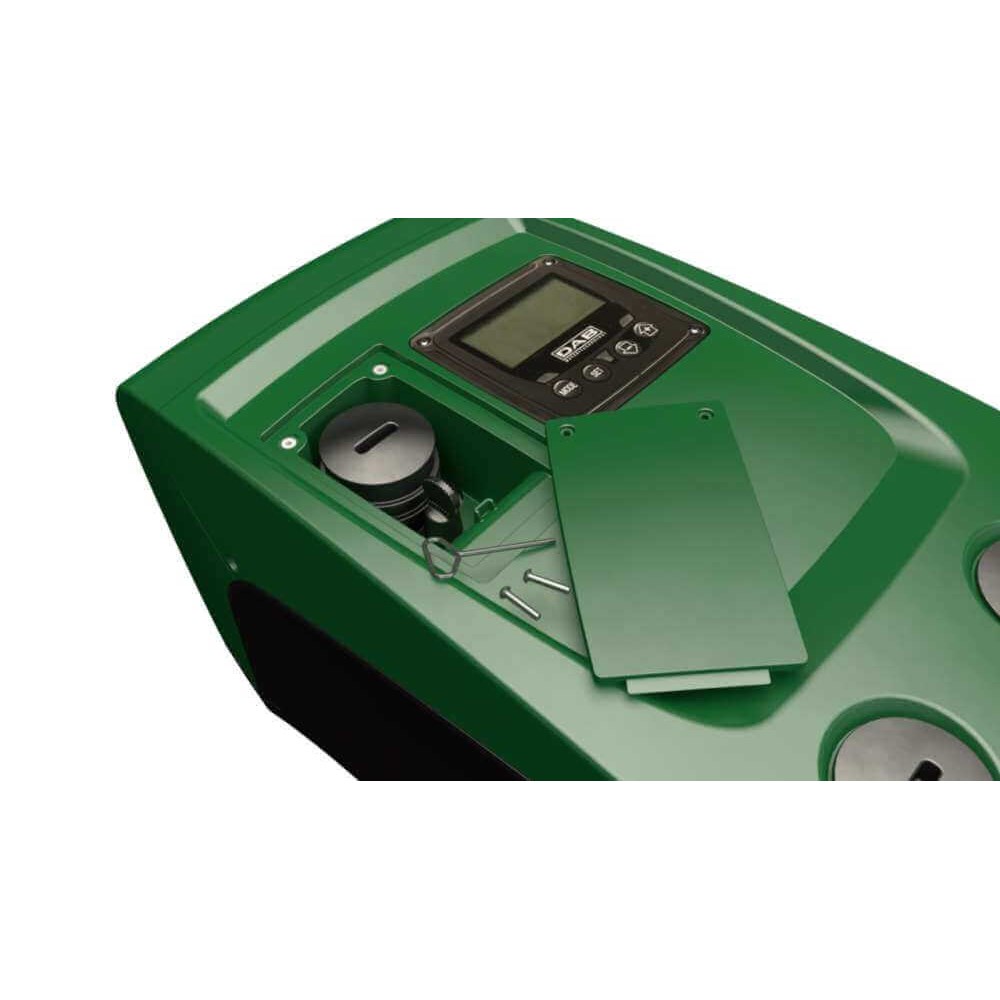

LCD 70x40 mm high-resolution screen, adjustable to adapt the readability at various installations. The intuitive interface gives access to all the system information and the main settings depending on the specific application.

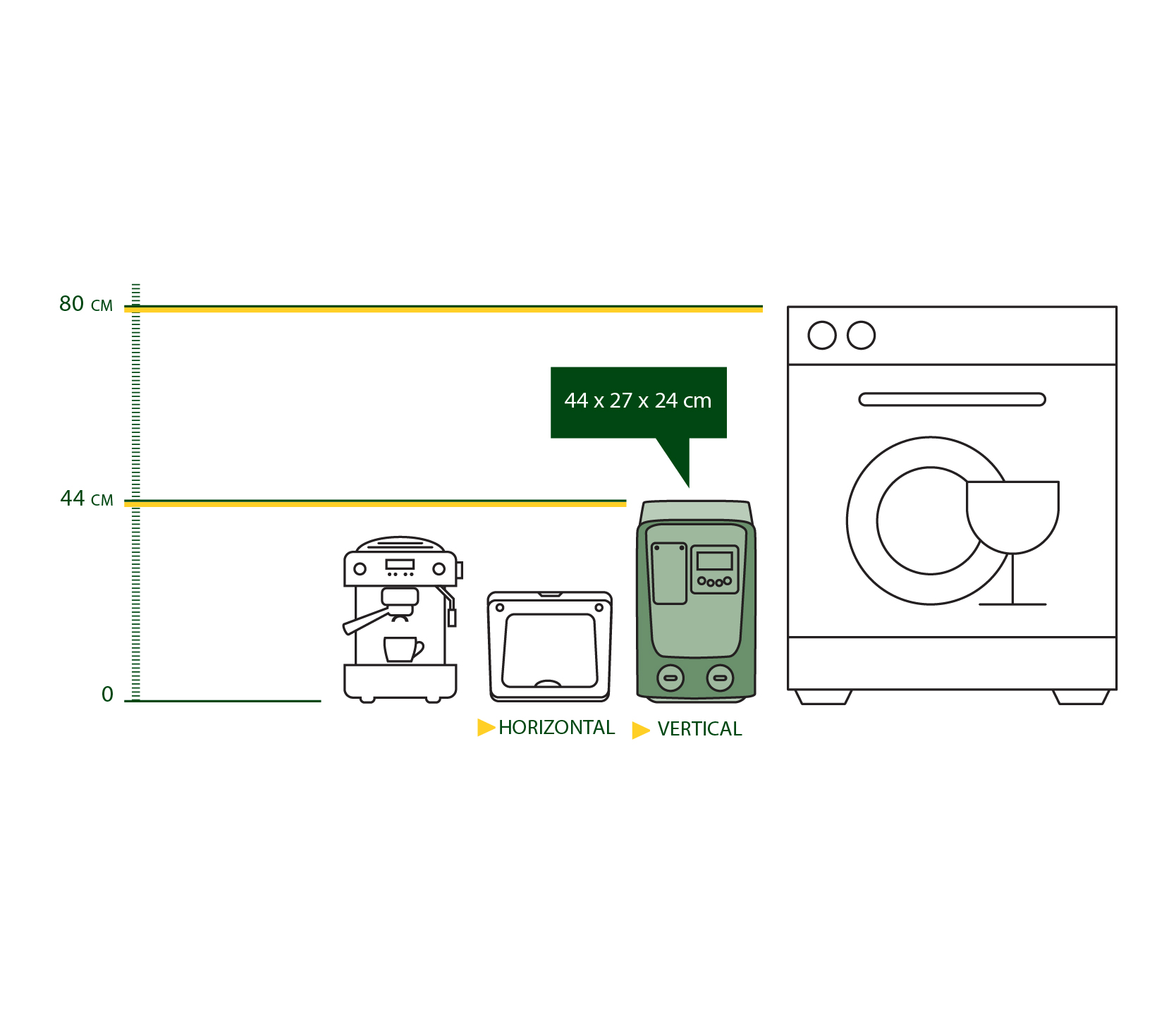

COMPACT DESIGN

The new component architecture and ergonomic design make e.sybox mini3 so compact that it can be installed in any environment, even under the kitchen sink.

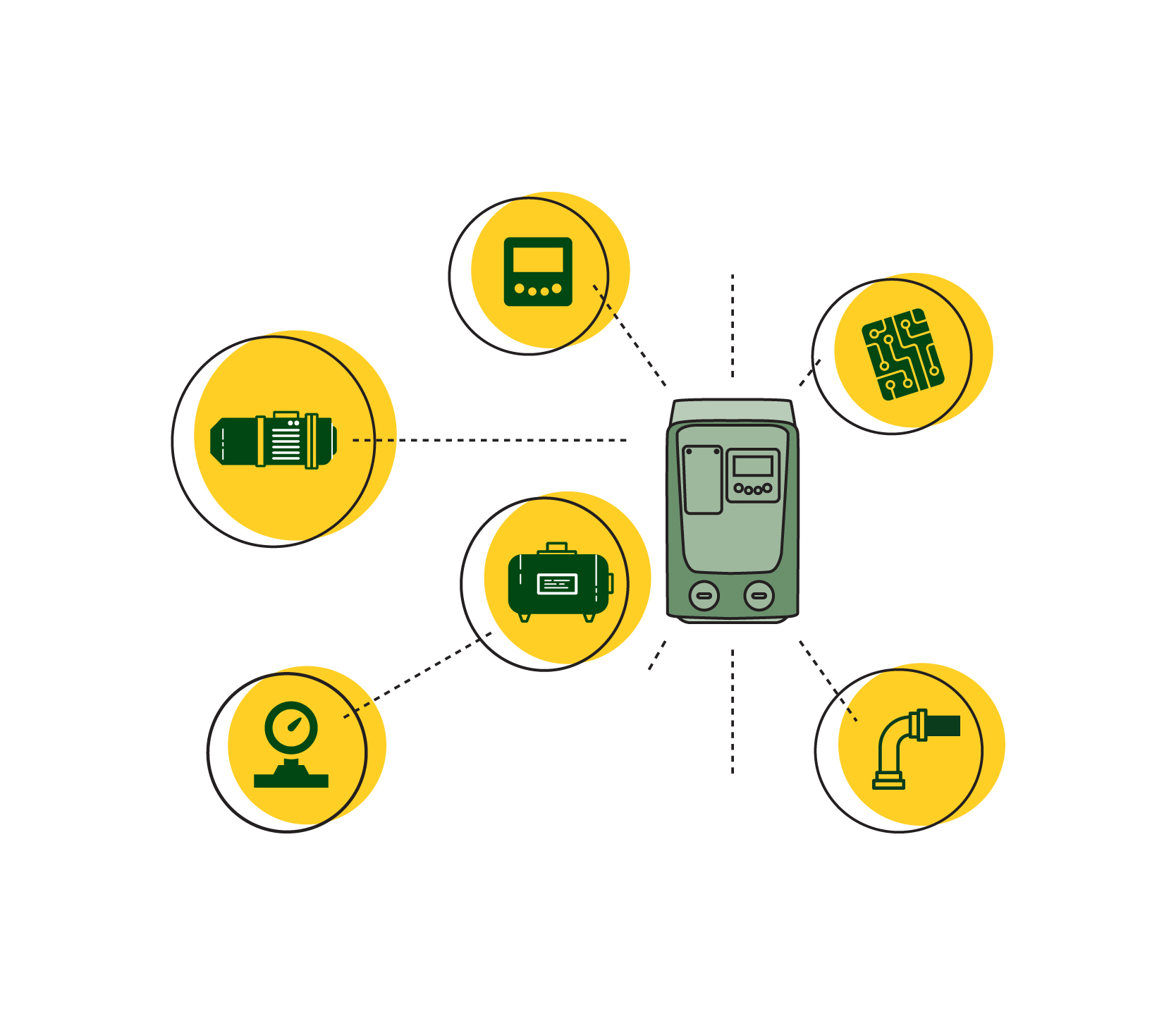

INTEGRATED - ALL IN 1

Once the suction and delivery pipes are connected, e.sybox mini3 doesn’t require any additional components for it’s installation and operation.



CERTIFICATIONS
Warranty
4 Year Parts & Labour Warranty
E.SYAPP

e.syapp is the new DAB mobile application for the line of electronic booster sets that redefine the rules of residential water pressurisation: e.syline!

e.syapp allows you to:

  • Choose the ideal e.syline product for your application.
  • Easily calculate cost-savings on your electricity bill
  • Instant access to installation videos, catalogs, quick guides, data sheets and instruction manuals.


Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
