RS4E-DIVERTRON900 - RS4E-Divertron900 Rain Harvesting Kit

Order Code: 811251

Print
Product Code
RS4E-DIVERTRON900
RRP: $1790.80 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco Rainsaver
Pack Weight (KG):
12.00
Description

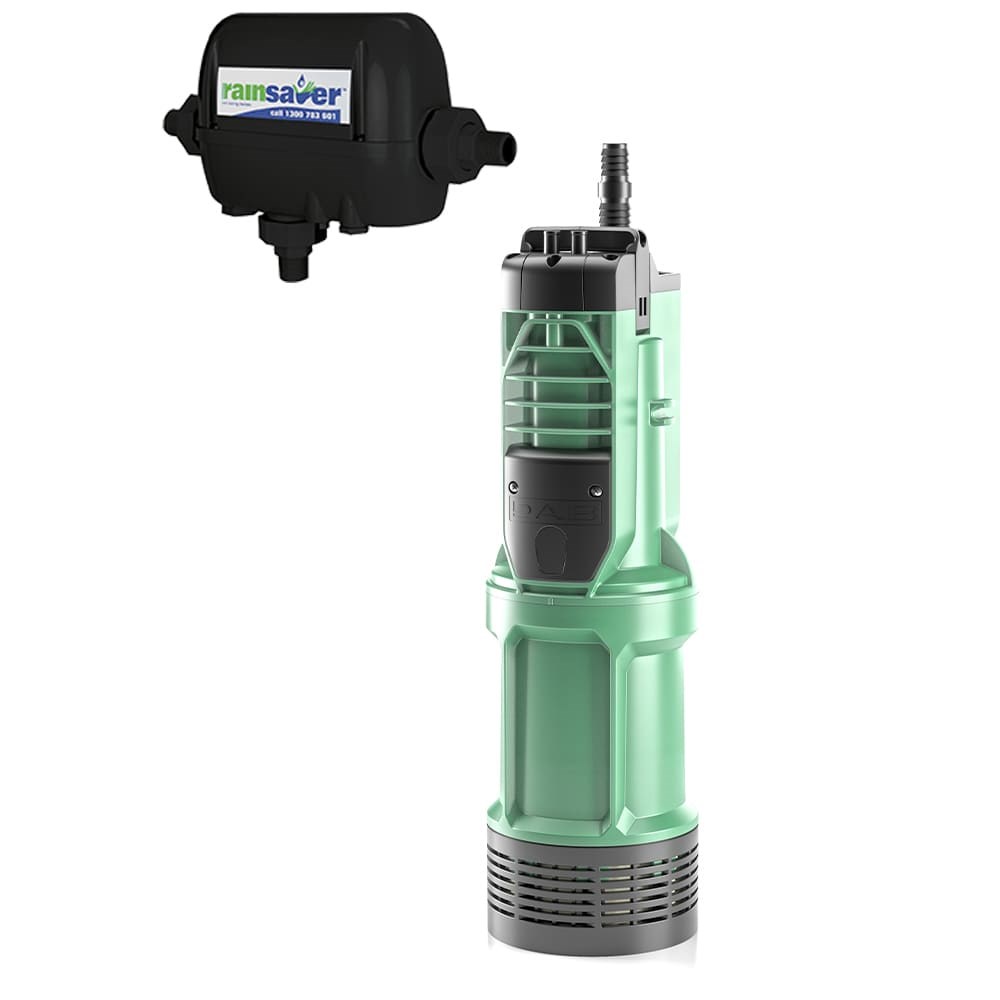

Submersible Multi-Impeller Electronic Pump

The DAB Divertron is a submersible pump with integrated on/off electronics for domestic water supply.

Ideal for irrigation and gardening and for the reuse of rainwater, it can be installed inside collecting tanks, wells and tanks with a maximum immersion depth of 12 metres.

  • Incorporates an electronic automatic restart pump control with dry run protection
  • Fully automatic operation
  • In-built non-return valve and flow sensor
  • Supplied wired and ready to install
  • Quiet operation
  • Simple installation
  • A small pressure tank (2-8L) is recommended
  • Does not require external pump control
Performance Curve

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water.

Dimensional Drawing (mm)

Model A H H1 H2 H3 Packing Dimensions Weight
Kg
L W H
DAB-DIVERTRON900 Ø 160 536 517 503 596 550 195 250 11
DAB-DIVERTRON900A

Features

DAB listens to the needs of customers, technicians, the market and the environment. That is why they always anticipate the evolution of their products, improving their characteristics, potential and usability before all else and before it's too late.

The first generation of Divertron was developed in 2007, breaking into the market as a complete novelty: it is a range of submersible pumps with integrated on/off electronics, a feature that has made it a product of excellence to this day.

After 15 years and after more than 1 million pieces installed.

DAB’s ongoing research and drive for continuous development has led it to launch the second generation of Divertron. This product has been improved in terms of appearance and technical and technological content in order to increase its performance and reduce its consumption, adapting it well in advance to the next MEI regulations on energy efficiency.

At the same time, it has been made even stronger and easier to install and maintain.

HIGH EFFICIENCY IMPELLERS
The technopolymer impellers are based on in-depth research into fluid dynamics to increase performance: higher efficiency with lower energy consumption.
NEW MOTOR
The motor has been redesigned to reduce consumption. But also to improve performance.
MECHANICAL SEAL
We have applied a mechanical sealing system that offers two advantages: greater strength and durability, but also greater efficiency, thanks to the combined action with the new hydraulics.
PRACTICAL TO USE
The new retractable handle makes it easier to move the pump, while the hook is designed to use a cord when the pump is lowered into a tank or well.
INTEGRATED ON/OFF ELECTRONICS
The integrated electronic card manages starting and stopping of the pump automatically in relation to the water demand, without the need to install an external controller. This prevents dry running of the pump in the event of a prolonged shortage of water. Easier to install, and easier and safer to use
NON-RETURN VALVE
The non-return valve ensures quick and safe initial installation, allowing immediate priming.
DIRECT ACCESS TO THE CAPACITOR
The capacitor housing is designed to be replaced quickly without the need to remove the pump housing.
