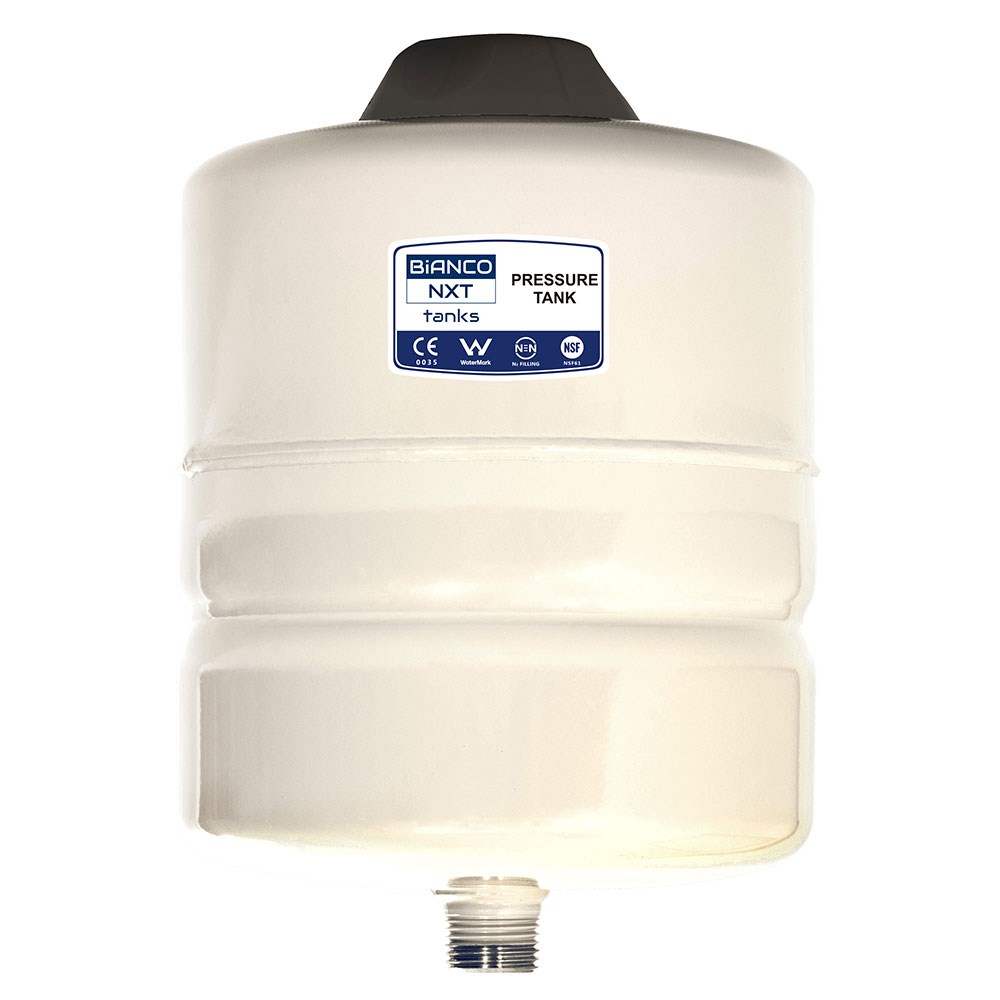

BIA-BPT-3 - Bianco Pressure Tank 3 Litre Vertical Almond 4 Bar Pre-Charge

Order Code: 811169

Print
Product Code
BIA BPT-3
RRP: $77.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco Pumpz
Product Type Pressure Tank
Bar 4
Diameter 140mm
Draw Off (Litres) 1
Litres 3
Port Size Outlet 1" BSPM
Height 220mm
Pack Weight (KG):
1.20
Description

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 3L
  • Nominal Draw-off: 1L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 140 mm
  • Height: 220mm
  • Net Weight: 1.0Kg
  • System Connection: GI
  • Colour: Almond
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Certificates & Compliance Information
Download Certificates & Compliance Information v1.0


Features & Benefits
  • 304 Stainless Steel water connection
  • Corrosion resistant for long life
  • UV resistant epoxy coating with a minimum thickness of 30 micron in Almond
  • Air valve with sealing cap eliminates leaks
  • Food grade approved high-grade diaphragm ACS, AS/NZS4020
  • 5 Year Tank Replacement Guarantee


Applications
  • Booster Systems
  • Borehole Systems
  • Sprinklers
  • Irrigation Systems
  • HVAC
  • Thermal Expansion
  • Water hammer arresting



Materials of Construction
Pressure Tank Steel
Internal Coating Food Grade Approved Liner
Water Connection Stainless Steel
Air Valve Stem Brass
Diaphragm Food Grade Approved


Energy Saving Device
  • An energy saving device such as a Bianco Pressure Tank stores energy in the form of pressurized water.
  • The energy is transformed by the pump from electricity to water pressure. With a Bianco tank there is no loss of energy once it has been stored in the device.
  • By installing a Bianco Tank, the pump start events can be cut by 40 – 80%
  • Saving Power
  • Extending Pump Life
  • Reducing Noise
  • Low Initial Cost - The Bianco Tank is easy to fit to pumps and can even be wall mounted, the tank can be installed within minutes and can be fitted to any brand of pump.
Setup & Installation
  1. Pressure switch controlled pumps with differential pressure set at 140 kPa (20 psi), pre-charge the tank to 20 kPa (3 psi) below the cut in pressure.
  2. For pumps controlled by pressure switches with higher differential pressures, electronic controls or variable speed controls, pre-charge the tank to 65% of the maximum system pressure.
  3. Pressure tanks installed on mains pressure, pre-charge should be set at the mains pressure.
  4. For hot water expansion, pre-charge should be set at the mains pressure.
Shipping Requirements
CAUTION!
THE PRESSURE TANKS ARE PREFILLED WITH NITROGEN SO PLEASE ENSURE THAT YOU REMOVE GAS PRESSURE VALVE STEM BEFORE SHIPPING VIA AIRFREIGHT.



Drinking Water Approval

Materials in contact with water are AS/NZS 4020 Drinking Water Approved.

This ensures that the tank will not contribute any toxic materials or metals to the liquid being supplied, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water.

AS/NZS 4020 drinking water approved
WaterMark Approved

WaterMark approved to WMTS-485:2018 Certificate No. WM-032349

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.

Read more about WaterMark Approvals
