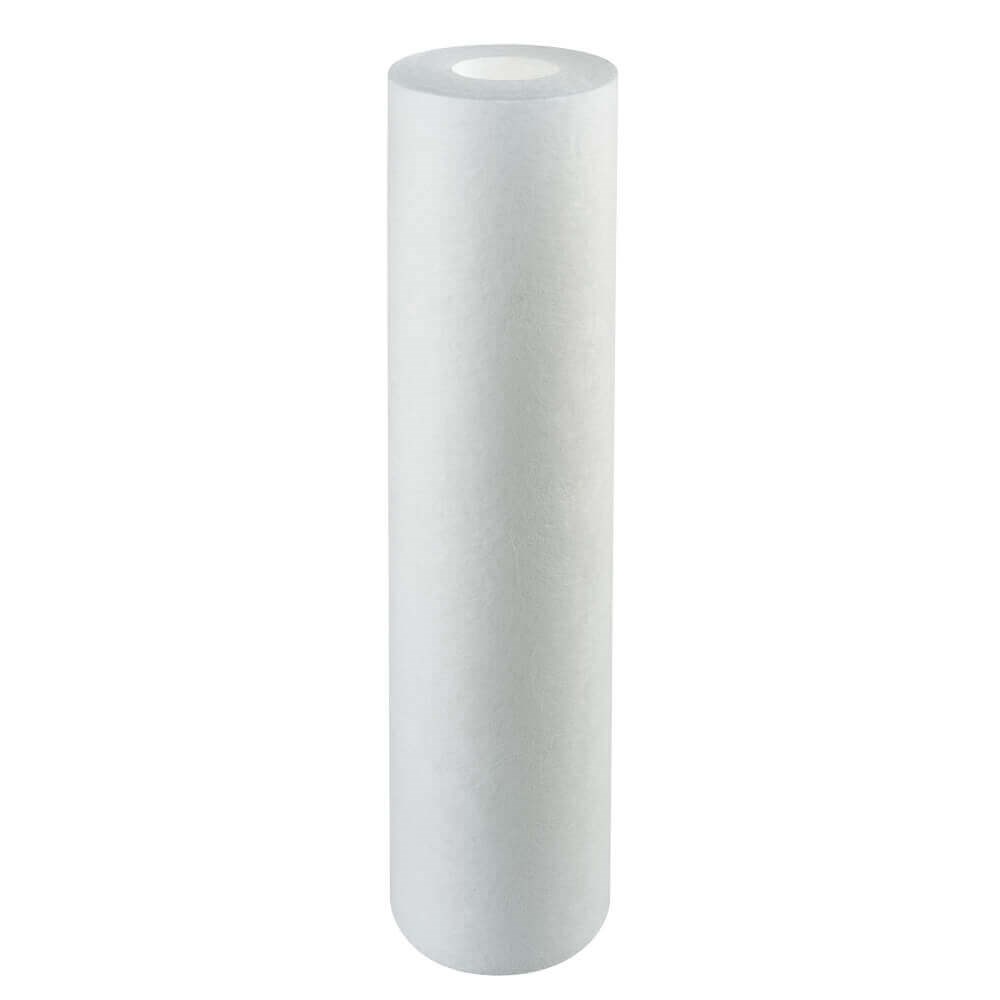

25 Micron Polyspun Coarse Sediment Filter 10" Std
25 Micron Polyspun Coarse Sediment Filter 10" Std
Order Code: 807294
Print
Zoom
Product Code
ATF-CPP10SX25MCR
RRP: $11.00 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand
Atlas Filtri
Product Type
Polyspun Filters
Flow Rate (L/min)
33
Material
Polypropylene
Nominal Micron Rating
25
Min Temp (degrees celsius)
4
Max Temp (degrees celsius)
80
Filter
10" Std
Pack Weight (KG):
0.15
Description
SEDIMENT FILTERS
Sediment Filters are used to remove particles from water and protect downstream taps etc from clogging
Sediment cartridges are resistant to attack by bacteria and chemicals and are suitable for a wide range of applications, including domestic, commercial and industrial.
CS & TS Pleated Cartridge Range
Polyspun cartridges are commonly used as the final filtration for sediment as damage does not compromise the micron rating
These depth filters have a very large surface area and better dirt holding capacity than pleated filters
5 & 1 Micron versions are also often used as the final filter before a UV as drinking water standards require a minimum of 5 micron depth filtration
25 Micron version is sometimes used in place of a pleated filter for those who prefer to just change filters without the need to clean them, the higher dirt holding capacity means more time between giving the filters attention

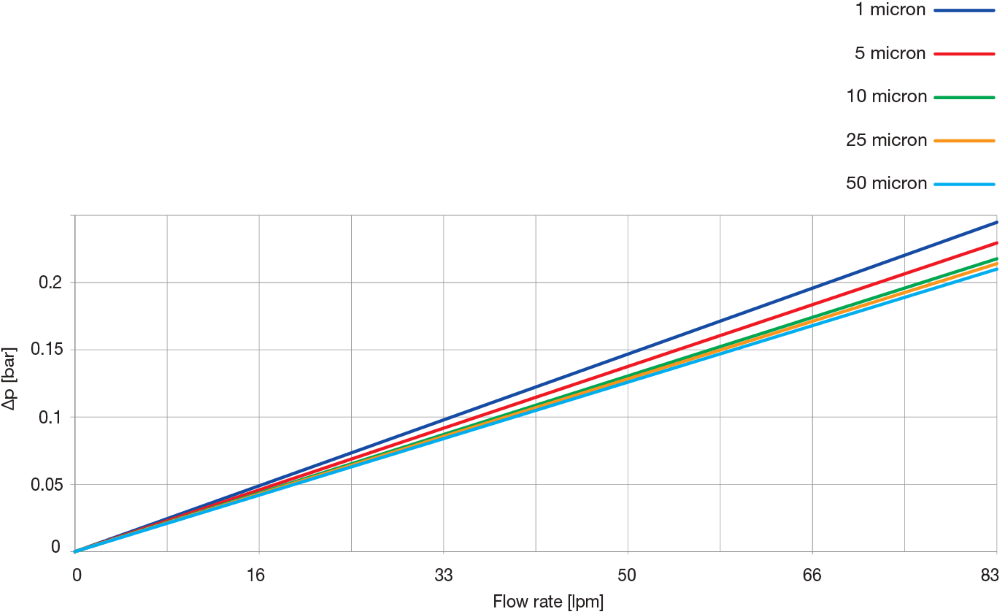

Flow Rate vs Pressure Drop Δp
