Order Code: 807333

RRP: $243.10 incl. GST Find Your Nearest Store

Technical Specifications

Brand	Atlas Filtri
Product Type	Hydra Self CleaningFilters
Flow Rate (L/min)	100
Material	Polypropylene/PET
Nominal Micron Rating	90
Inlet/Outlet	1"
Min Pressure (bar)	1.8
Max Pressure (bar)	8.6
Min Temp (degrees celsius)	4
Max Temp (degrees celsius)	80
Application	Whole Supply
Filter	Hydra

Description

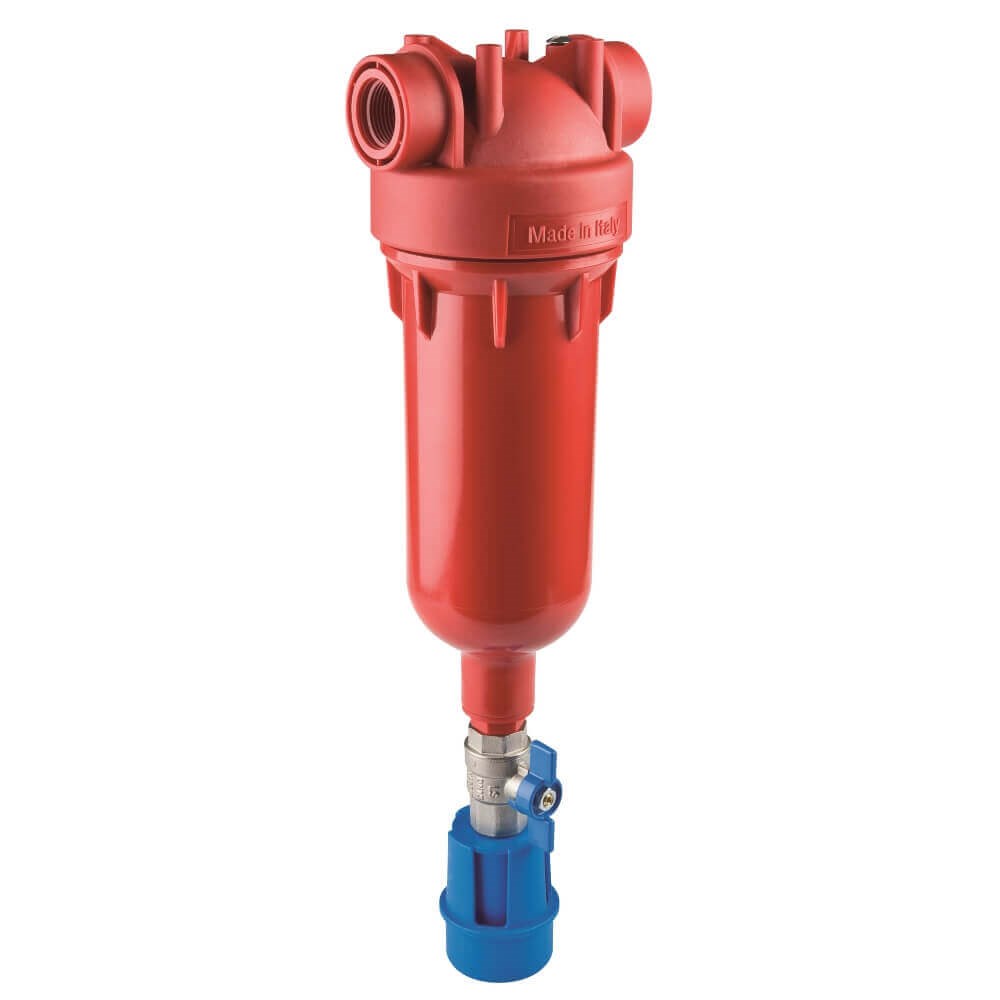

A Hydra Hot Self Cleaning Filter with 1” BSP Plastic inlet/outlet with 90 micron stainless steel mesh filter.

This version is has 2 differences:

It is suitable for hot water up to 80°C
The filter bowl is opaque and suitable for outdoor use

Suitable for coarse sediment filtration in homes on municipal water supplies, as a pre-filter for water treatment on rural supplies as well as some commercial and industrial applications. These filters perform well with lower pressure drop when higher sediment loads are present.

The filter bowl is made from heat resistant reinforced nylon

Features

Hydra – Cleans Your Water, Cleans Itself

Italian made, for superior construction, the Atlas Filtri hydra range of hydra self cleaning filters make coarse sediment filtration easy and convenient.

Features include:

A range of low maintenance mesh filters are available to fit your needs
Cartridges feature an antimicrobial flat seal
Counter-current self cleaning system that is can be either manual or automatic for maximum particle removal
The drain funnel has a backflow preventing device, so this is as easy to install on mains as it is in rural
All Hydra models come with
- Spanner
- Bracket
- Lubrikit (O-ring Lubricant)
