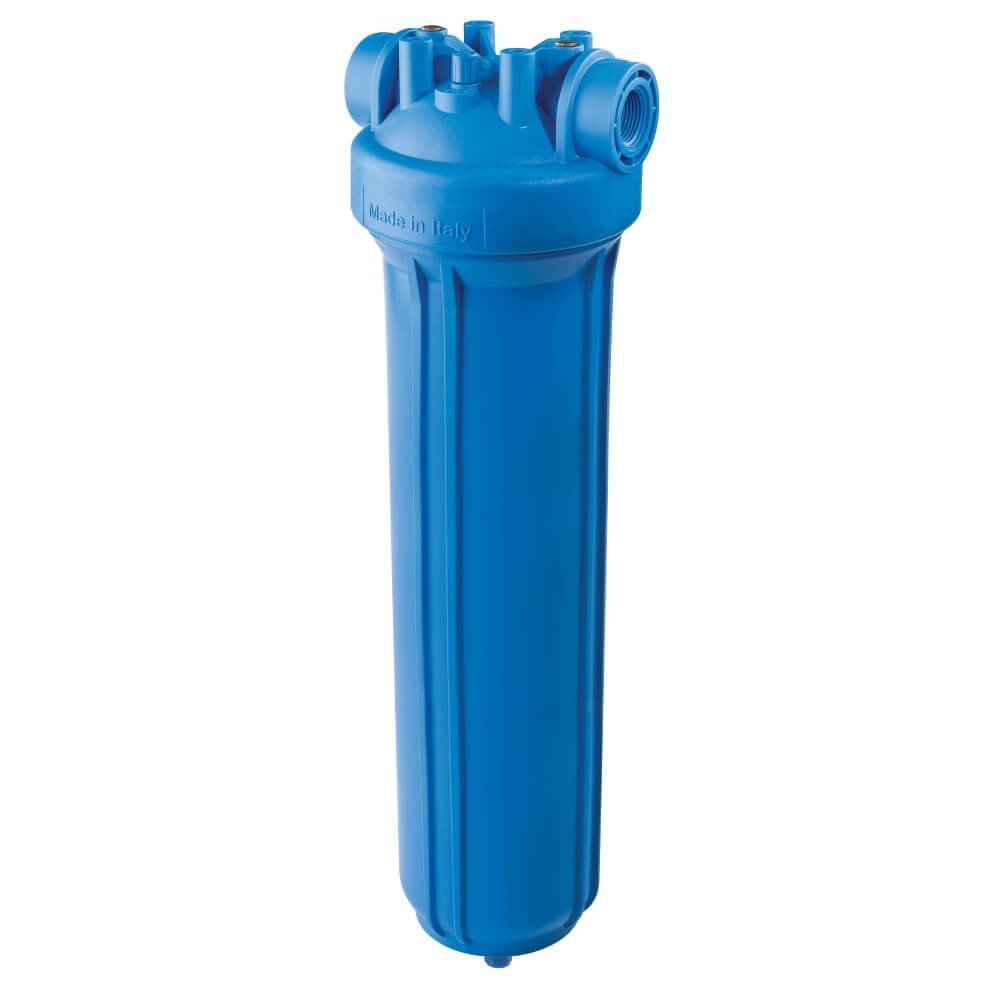

DP Mono Filter Housing 20" BIG 1" In/Out with Spanner & Bracket

Code: 807571

Print
Product Code
ATL-KITDPBIGPSPM20MONO1INAB
RRP: $297.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Atlas Filtri
Product Type Big Housings
Material Reinforced Polypropylene
Inlet/Outlet 1"
Max Pressure (bar) 8.3
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Whole Supply
Filter 20" Big
Pack Weight (KG):
5.65
Description
  • A Mono 20” BIG Filter housing, with 1” in/out plastic BSP threads, pressure gauge (manometer) ports and drain port.
  • Comes complete with bracket, spanner and o-ring lubricant.
  • Designed to accept 20”x 4.5” filter cartridges.
  • These are most commonly used domestic, commercial and industrial applications
Features

These have time and labour saving additions built in:

  • Pressure gauge ports – no more need to plumb pressure gauges separately
    • Adding pressure gauges makes it easier than ever to see when filters need changed, giving you optimal life and performance of your filters
  • Drain Ports – Making changing filters easier than ever
    • Just open the drain port and drain the water into a bucket, no more messy water splashing on the floor, and the filter bowl is lighter and easier to manage
    • Drain ports are easy to open with the your included reversible spanner, one side for the filter bowl, the other for the drain port

These are available in:

  • Mono - single filter housing
  • Duo - Double Filter housing with moulded head
  • Trio – Triple - Filter housing with moulded head

All Atlas Filtri BIG Housings come with:

  • Bracket
  • Spanner
  • Lubrikit (O-ring lubricant)
Working Conditions
Max Working Pressure8.3bar (120 psi)
Max Working Temperature45°C (113°F)
Min Working Temperature4°C (39.2°F)
