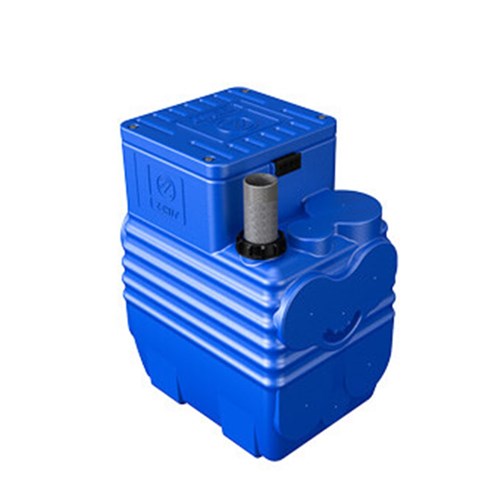

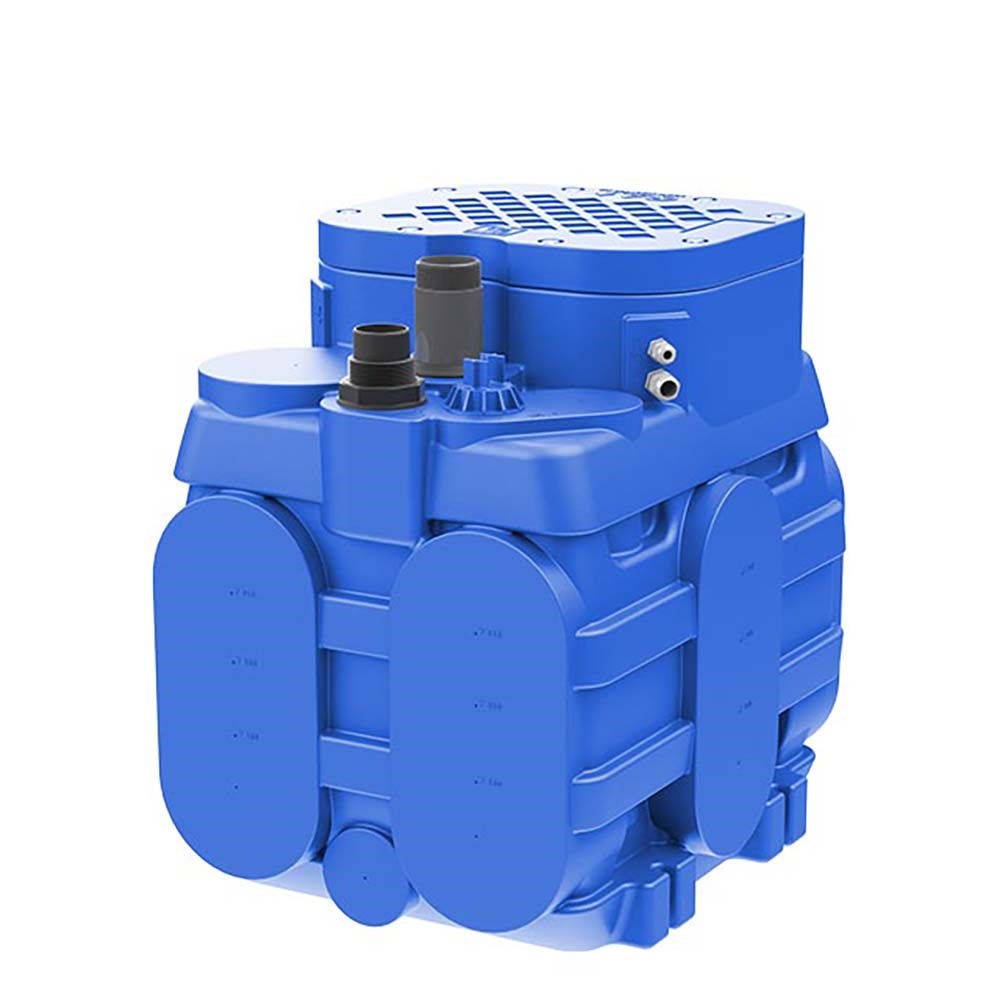

ZEN-BLUEBOX90 - Zenit blueBOX 90 Wastewater & Sewage Lifting Station - 90L

Order Code: 711120

Print
Product Code
ZEN-BLUEBOX90
RRP: $962.50 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand Zenit Pumps
Product Type Lifting Station
Suitable For Sewage and Wastewater
Litres 90 L
Pack Weight (KG):
10.40
Description
90 Litre Collecting Station for Waste Water
1½" delivyer pipe
Suits DG Blue ranges

Dimensions (mm): 480x370x610
Features
Blue Box Polyethylene Pump Stations

Suitable for collecting and lifting clear, rain and wastewater from washing machines, sinks and WC’s in systems installed at a lower level than the sewer, in locations such as garages or basements. Is compact and easy to install, making them ideal for civil and residential applications.

Including: cable gland, PVC delivery pipe** Ø 1½”, emergency draining connector, gasket kit for inlet pipe 1xØ110, 1x75, 1x50 mm, nr.1 special support to reduce the float switch level. Overflow alarm level OPTIONAL.

Warranty
12 Month Zenit Warranty
Intended Use Disclaimer

The Zenit blueBOX can be installed for the collection and transfer of domestic and residential wastewater, rainwater and sewage. It cannot be used in environments with the presence of dust, gases, acids, corrosive, flammable or explosive agents and with food-grade liquids. The temperature of the installation site must be between 0°C (32°F) and +50°C (122°F). The temperature of the contained liquid must not exceed 40°C (104°F) as a continuous liquid temperature. The tank can handle up to 80°C (176°F) for no more than 3 min and is therefore suitable for some washing machine or dishwasher discharges.
