Maun 1000-05 Wad Punch 10Pc Set With Centre Punch Metric 5mm to 32mm

Code: 505987

Print
Product Code
MA1000/05
RRP: $194.50

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Maun
Type Wad
Size 5 - 32mm
Pack Weight (KG):
1.10
Description

1000-05 MAUN WAD PUNCH SET WITH CENTRE PUNCH METRIC 5mm to 32mm

ONE HANDLE, NINE PUNCHES, A COMPLETE KIT. ALL PRECISION-MADE TO EXACTING STANDARDS.

A versatile tool for all your punching needs. Perfect for making precisely shaped gaskets and washers in a variety of sizes.
Cut precise holes and shapes, every time. All you need in one complete set.

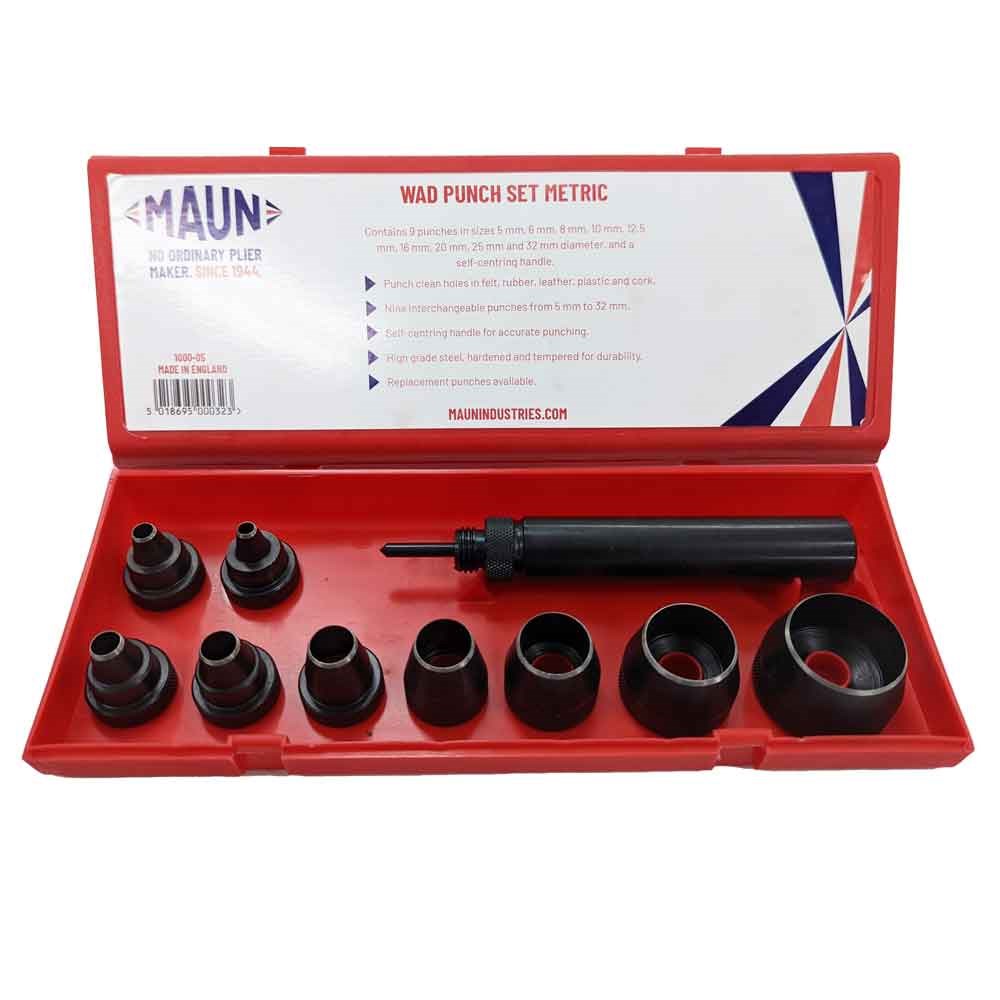

This Metric Kit comprises a single handle onto which screw a series of nine interchangeable punches. The Handle and punches are fully heat treated and chemically blacked. The handle should be struck with a hammer or mallet onto a wooden block. The spring loaded plunger in the handle enables holes to be accurately centred and serves to eject the slug.

Benefits

  • Works on a range of soft materials, including felt, rubber, leather, plastic and cork.
  • Make accurate, clean cuts – every time.
  • Precisely centre holes using the spring-loaded plunger.
  • All punch sizes fit onto one handle.
  • Punch both inner and outer holes for washers and gaskets.
  • Comfortable to use over long periods.
  • Made to last, with a robust construction and rust-proof finish.

Features

  • Interchangeable punches easily screw onto handle for quick changes.
  • Fully heat-treated handle to withstand hammer or mallet blows.
  • Spring-loaded plunger accurately positions centre of hole and ejects the slug.
  • Punches ground to a fine cutting edge, then hardened and tempered to HRC 45 for durability.
  • Chemically blackened handle and punches for long life.
  • Centre punch case hardened to HRC 57 for durability.
  • Nine different sized punches in one set.

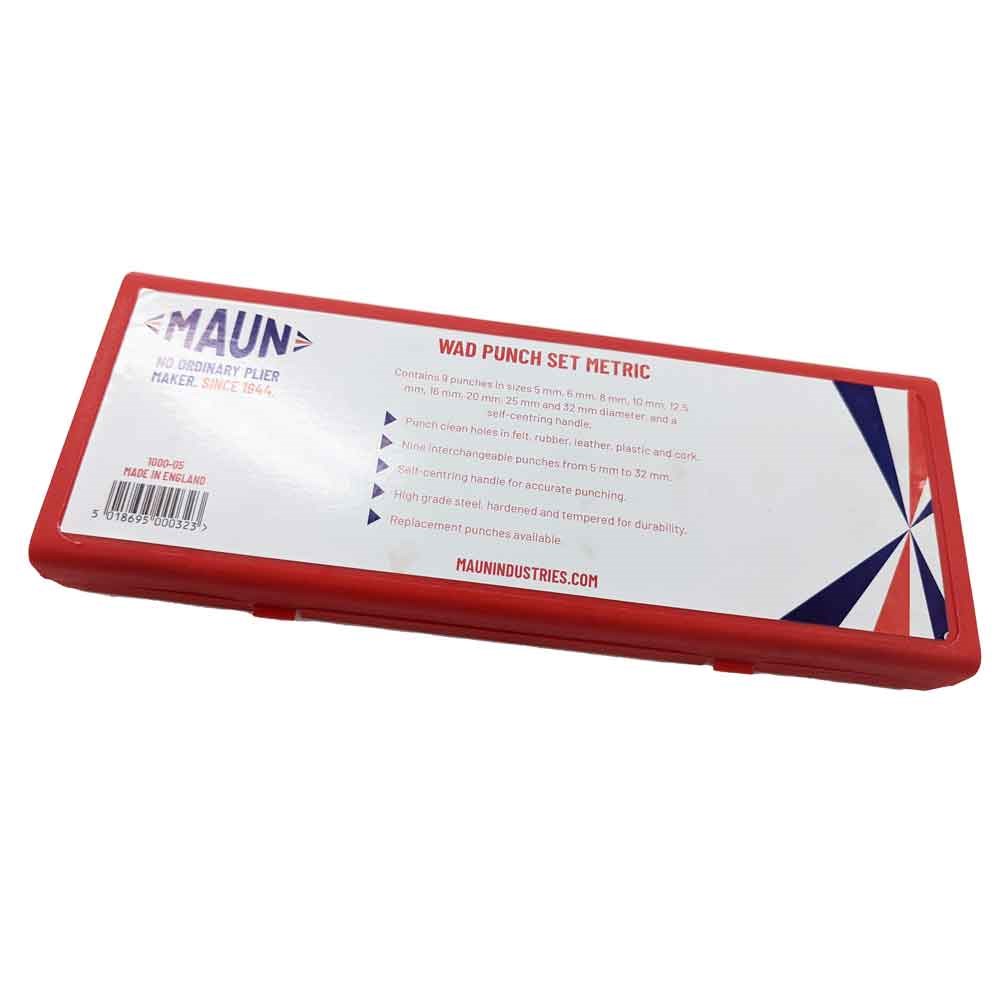

  • Lightweight polypropylene storage box.

Specifications

  • Made in England.
  • Punch sizes: 5mm, 6mm, 8mm, 10mm, 12.5mm, 16mm, 20mm, 25mm and 32mm.
  • 150 mm handle height.

How To Use

  • Screw the punch onto the handle.
  • Centre the hole to be cut on the spring-loaded plunger.
  • Strike the handle with a hammer or mallet, using a wooden block as an anvil.
Why Maun?

Everything you need in one set. Nine precision-made punches, one durable handle, all packed in a lightweight box. That’s Maun for you. We see problems and find innovative ways to solve them.

So, why settle for ordinary? We don’t. And you shouldn’t either.

Our tools have been in action for over 75 years. Each and every one is engineered to last and has been since 1944.
