8-400NM WORKSHP TORQUE TESTER SW7707-2-2W - 96521084

Order Code: 709168

Print
Product Code
SW7707-2-2W - 96521084
RRP: $15767.35 incl. GST
Find Your Nearest Store
Product Documents Certified Calibration
Technical Specifications
Brand Stahlwille
Type Digital
Pack Weight (KG):
10.70
Description

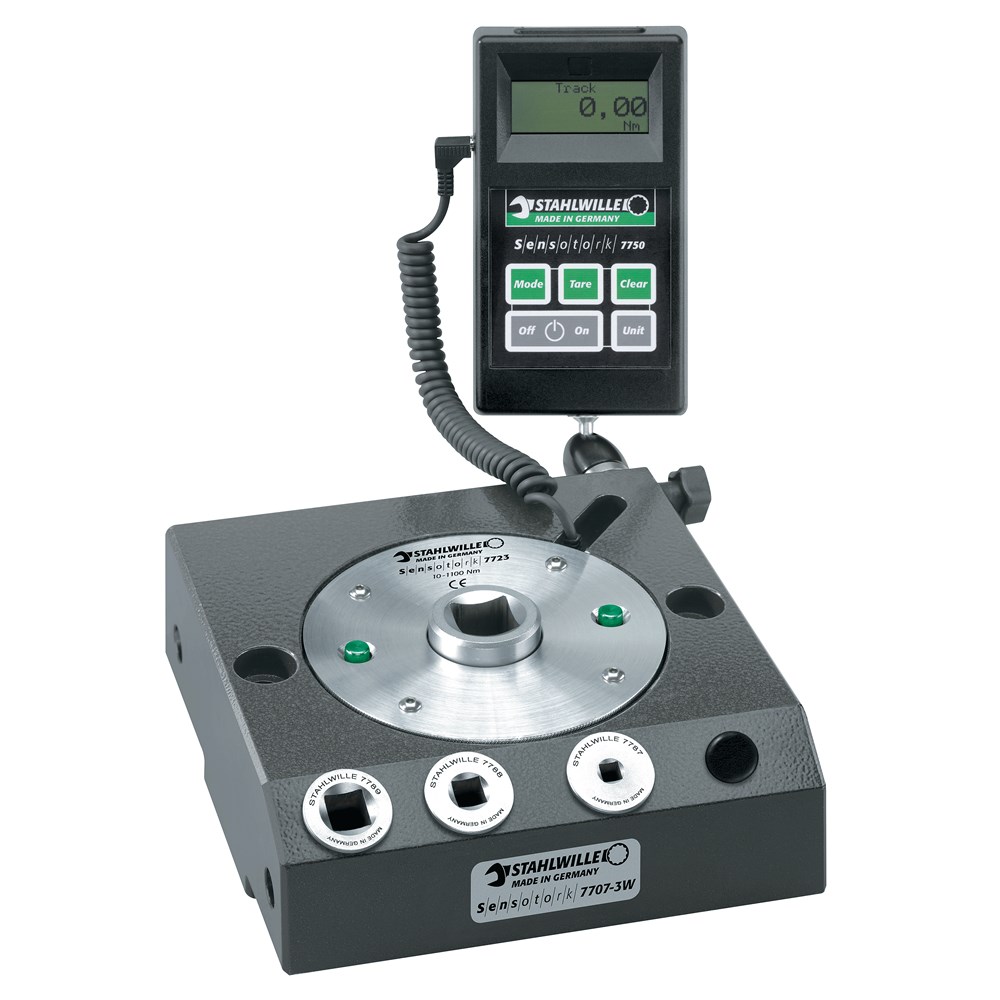

Workshop torque tester Sensotork

Electronic workshop torque tester for torque wrenches, consisting of:

  • transducer (registered design)
  • holder
  • display unit (registered design)
  • tripod for display unit (with 1.5 m cable)
  • spiral cable
  • mains adaptor (220 V) or direct connection to 12 V in-car supply is possible
  • square drive adaptor (No-7707-2W, No-7707-3W)

Kit for attaching the unit to a workbench or wall in a horizontal or vertical testing position for clockwise and anticlockwise use. The easily interchangeable transducers are attached to the holder by means of a QuickRelease safety lock.

Low lateral forces thanks to low-profile transducers, automatic detection of the transducer, flexible and user friendly because the unit can be used horizontally or vertically and the display unit can be placed in many positions, additional tripod with 1.5 m cable for mounting the display unit to facilitate visual monitoring when using longer torque wrenches, especially broad measuring range from 2% to 100% of rated value (< 1% at 1100 N m).

Readings can be transferred to PC via the USB cable (no separate power supply needed, power comes from PC). While individual transducers are being recalibrated, the torque tester itself remains on-site for further use. Wide range of application (-20°C to +60°C). Meets DIN 51309, Class 2. With works certificate in accordance with DIN EN 10204. Supplied in sturdy plastic case.

Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
