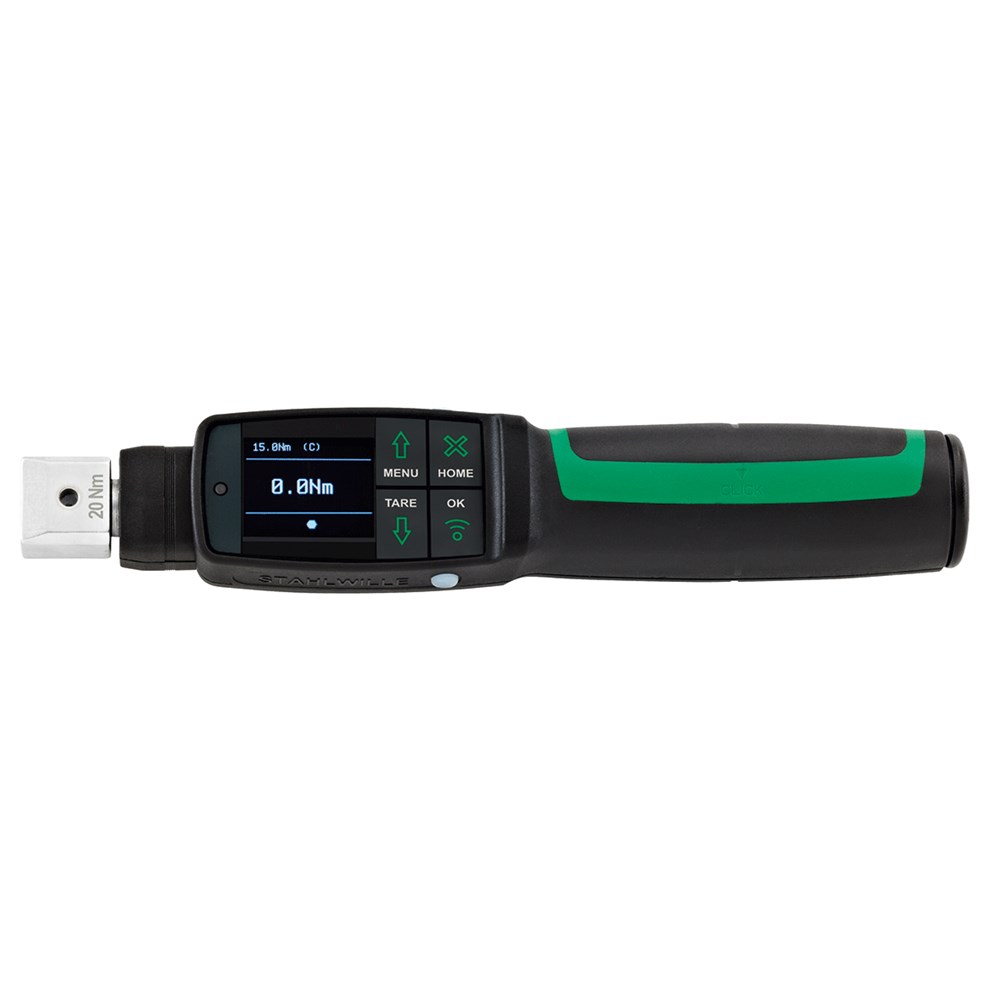

MANOSKOP TORQ #2 WRENCH 2-20NM 9X12MM INSRT TL CARIER SW714/2 - 96500902

Order Code: 800651

Print
Product Code
SW714/2 - 96500902
RRP: $4916.95 incl. GST
Find Your Nearest Store
Certified Calibration
Technical Specifications
Brand Stahlwille
Type Digital
Mount 9x12
Size Range 2-20Nm
Pack Weight (KG):
0.81
Description

MANOSKOP® 714 – indicating and cut-out
Electromechanical torque and angle-controlled wrench

  • 4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)
  • high-definition colour display with additional side-mounted indicator lamps
  • freely configurable menu structure
  • Optionally: Li-ion battery No 7195-2 and charger No 7160
  • 3 function modes: cut-out, peak (indicating mode with peak value) and track (indicating mode with current value)
  • Micro USB 2.0 interface
  • bayonet connection for battery compartment
  • QuickRelease safety lock change system for insert tools
  • angle-controlled measurement without a reference arm
  • data storage (< 2500 tightening jobs)
  • as many as 200 joints can be programmed in up to 25 preset sequences.
  • different tolerance limits can be set for each joint
  • acoustic and visual assessment of the joint
  • rapid, accurate setting via keypad
  • the automatic keypad lock prevents inadvertent changes
  • overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)
  • automatic notification of the next calibration date, either by the number of joints or the time interval
  • fully automated calibrating and adjusting using the perfectControl calibrating and adjusting unit No 7794-2 (torque) or 7794-3 (torque and angle)
  • units of measure: N m, ft.lb, in.lb.
  • tightening torque is automatically corrected if a deviating extension is entered
  • immediately reusable after release
  • clockwise and anticlockwise tightening – it may be necessary to refit the insert tool rotated through 180° for anticlockwise tightening in the cut-out mode
  • tactile, visual and acoustic trigger signal.
  • torque and angle are simultaneously visible
  • all readings are independent of the point of application of force (with sizes 1, 2 and 4)
  • safe handling due to ergonomically designed handle (resistant to oils, grease, fuels, brake fluid and Skydrol)
  • 2 certificates (torque, angle)
  • in sturdy plastic case (size 40 in steel case)
  • design patent, other patents applied for
  • supplied with Sensomaster software, USB cable, 4 AAA/LR03 micro-batteries, 1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used
  • display resolution, angle 0.1°
  • display deviation value, angle ±1%, ±1 digit
  • display resolution, torque (< 40 N m: 0.01 N m; > 40 N m: 0.1 N m
  • display deviation value, angle ±2%, ±1 digit
