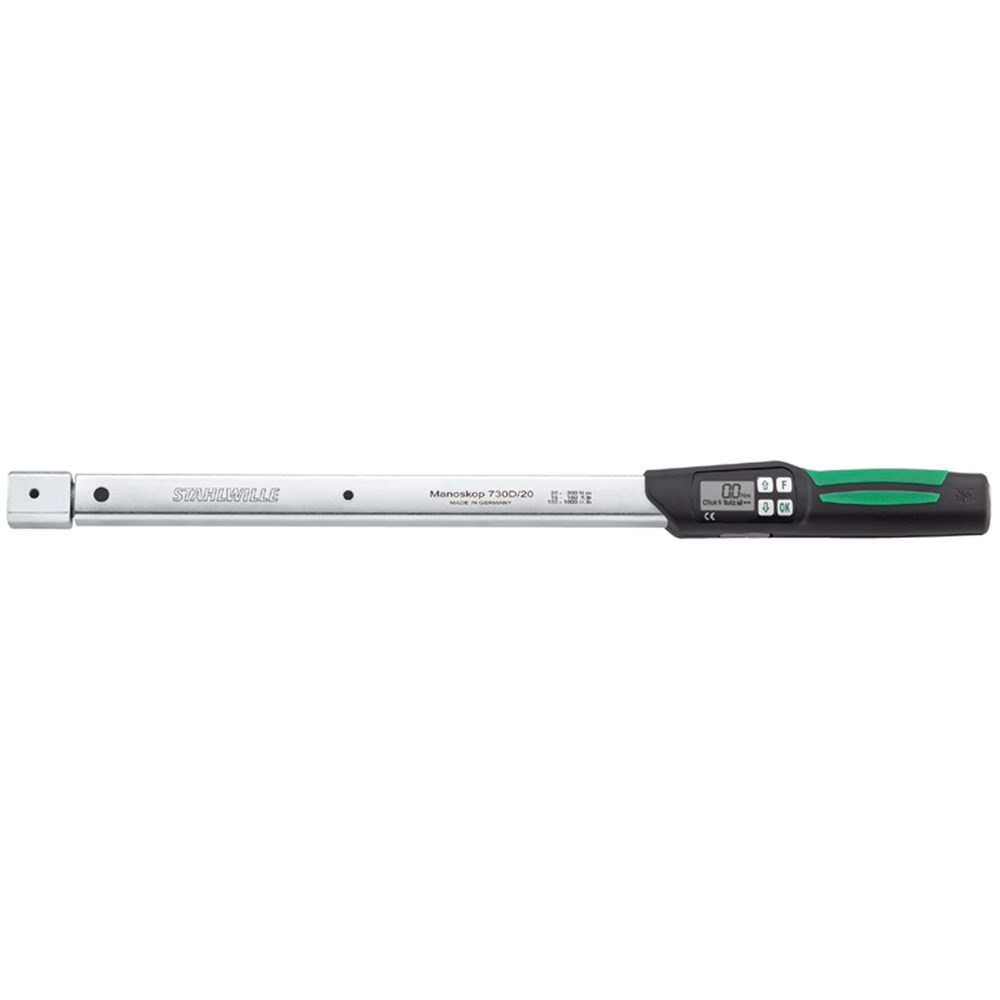

20-200NM ELCTRNC TORQUE WRENCH 14MM X 18MM INSRT TOOL CARRIER SW730D/20 - 96501720

Order Code: 708877

Print
Product Code
SW730D/20 - 96501720
RRP: $2166.10 incl. GST
Find Your Nearest Store
Certified Calibration
Technical Specifications
Brand Stahlwille
Type Digital
Mount 14x18
Size Range 20-200Nm
Pack Weight (KG):
1.90
Description
MANOSKOP® 730D

Electromechanical torque wrench

Benefits at a glance:

  • Cut-out and indicating
  • Displays the torque actually applied after the wrench cuts out. In this way, the user has the opportunity to optimise his or her working methods.
  • Units of measurement: N m / ft.lb / in.lb
  • Automatic keypad lock
  • Display also works for anticlockwise torque
  • Overload protection by means of acoustic and visual signals
  • Automatic compensation to achieve correct tightening torque even if a changed extension is entered
  • Different tolerance limits can be set for each joint
  • Visual red and green signals in the display confirm the status of the joint
  • Additional security for presets using PIN code
  • Automatic notification of the next calibration date
  • Deviation of indication ± 2%

Measure, cut-out and record: When the preset torque is reached, the torque wrench cuts out and indicates this fact to the user via a definite tactile and audible signal. The tightening torques are stored. The data can be transferred to a PC for evaluation and documentation.

Service work & series production MANOSKOP® 730D – indicating and cut-out

This electromechanical torque wrench combines the "indicating" and "cut-out" functions in a single tool; the function modes can be selected independently of each other. With a mount for interchangeable sockets and inserts and QuickRelease safety lock; rapid setting using the convenient foil keypad and large display; tactile and acoustic trigger signal. Differing tolerance limits can be set for each joint. Visual red and green signals in the display confirm the status of the joint.

Display also works for anti-clockwise torque.

7500 data records can be stored, transferred via a USB interface and evalutated on the PC. Automatic compensation to achieve correct tightening torque even if a changed extension is entered. Overload protection by means of acoustic and visual signs. The automatic keypad lock prevents inadvertent changes. Additional security for presets (function mode, trigger or preset value, unit of measurement, tolerance, save, deviating extension) using PIN code.

All the sensitive components are protected by the sturdy housing. The 2-component handle with its ergonomically designed green softer layers is resistant to oils, grease, fuels, brake fluid and Skydrol. Included in the set are 2 AA NiMH rechargeable batteries, 1.2 V, 2300 mAh. It is also possible to use 1.5 V AA batteries.

Automatic notification of the next calibration date. Simple calibration and, if required, adjustment without disassembly using Torque Tester No 7707 W.

Units of measurement: N m, ft.lb in.lb
Guaranteed maximum accuracy deviation +2%. With certificate.
