SMARTCHECK 100 - Torque WrenchTester 10-100 - 96521203

Code: 806035

Print
Product Code
SWSMARTCHECK 100 - 96521203
RRP: $6102.40 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Stahlwille
Product Type Torque Tester
Drive 3/8"
Batteries 4 x AAA OR 1 x 9V batteries
Pack Weight (KG):
9.50
Description
Drive: 3/8"
Size:
Width - 120mm
Height - 124 mm
Depth - 167 mm

Features & Benefits
  • Accurate - A value of ±1% deviation can be set providing the user piece of mind
  • Alerts - Visual and Audible alerts allow users to measure correctly and not overload the device
  • Versatile - Positioned almost anywhere to suit the workshop work flow
  • Three operating modes - Track, First Peak or Peak Hold –allows user to test for the situation or wrench type
  • Measuring Units - N.M, ft.lb or in.lb –can swap unit measurement easily

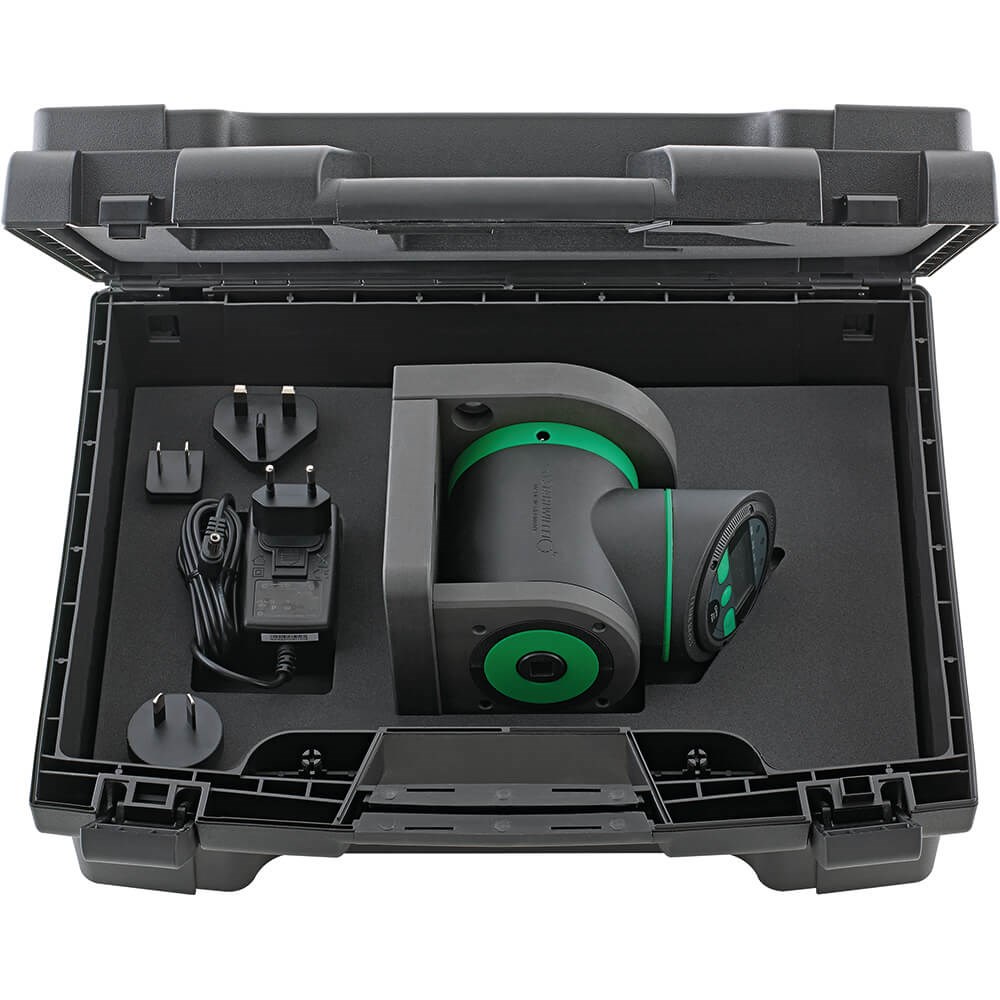

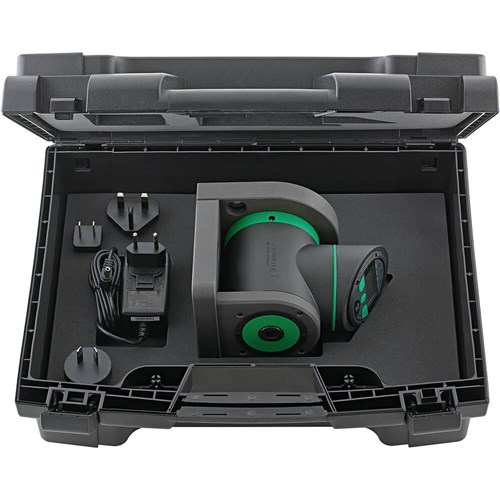

Included
  • Plastic Case including inserts
  • Torque tester
  • Plug-in power unit including adapters
  • Factory calibration certificate
  • Operating instructions
  • Reduction adapter
    • From 3/8” to 1/4” type 100
Measuring Range
N.m10-100
ft.lb7-74
In.lb89-885
Features

Introducing New Stahlwille SmartCheck

STAHLWILLE, one of the world’s leading manufacturers of hand tools, torqueing technology and tool solutions for the automotive sector, among other industries, now offers workshops and mobile service teams the opportunity to check their torque wrenches on their own cheaper and easier than ever, and in a more mobile, compact space, on-site using the new SmartCheck torque wrench tester.

Where workshops had doubts that their torque wrenches were actually still within the required tolerances, they usually had no option but to send them in to a repair agent for checking. While the wrench was off-site being serviced, a replacement had to be procured or a second tool, kept for just that occasion.

Key Features
  • Accurate –Can be set to ±1% tolerance
  • Robust -Encased in an impact-resistant plastic housing and metal base
  • Revolutionary –Provides the opportunity for torque wrench user to ensure the torque wrench in use is working to spec
  • Flexible –can be mounted horizontally or vertically, along with the rotatable display provides the user the best reading position at all times.

Video
Downloads
Product Brochures
Download Brochures v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
