TRU3602-193TG - Mechanical Totalising Counter - Top Going

Code: 709952

Print
Product Code
TRU3602-193TG
RRP: $545.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Trumeter/Avancer
Pack Weight (KG):
0.40
Description

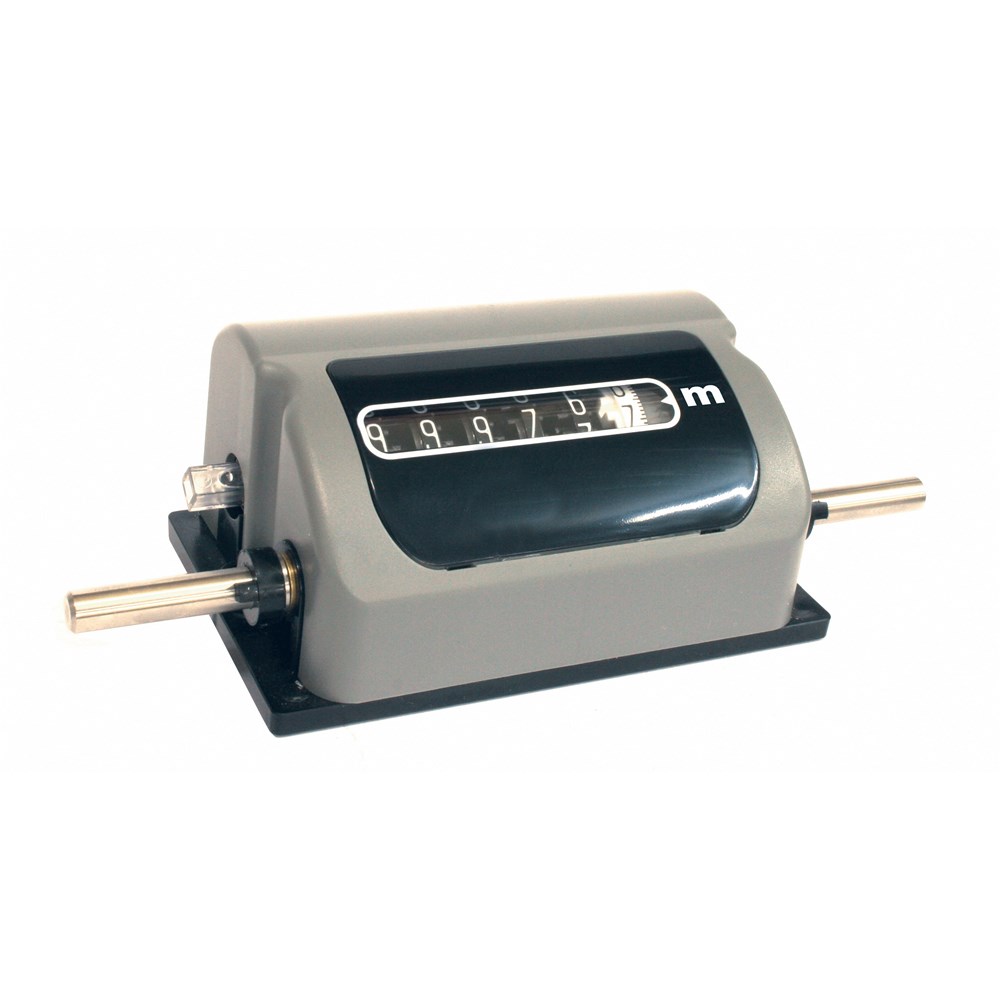

The 3602 mechanical counter is a durable, versatile unit which counts revolutions on many different types of production machinery.

The counter is robustly constructed for continuous operation at high speeds with the main shaft running in double oil impregnated bearings to ensure accurate, long term, trouble free service. The unit has a front facing, easy to view, 6-digit readout and operates at up to 3000 RPM. The unit has a gear ratio of 3:1 and a display of 99999.9m.

The counter is top going and is supplied double drive with wing bush and customer configurable reset.

Features
  • 6 digit 6.4mm (0.25in) readout
  • 3:1 gear ratio
  • Front viewing
  • Reset to zero
  • Reset by lever
  • Customer Configurable Reset
Specification
  • Display" White on black, decimals black on white 0.25in (6.4mm) figures
  • Base Material: Black PC-ABS plastic
  • Cover Material: Grey ABS plastic
  • Drive Shaft Diameter: 0.275 inch (7mm) diameter
  • Bearings: Bronze, oil impregnated for life
  • Operating Torque: 180g.cm (2.5oz.in) at 1:1 gearing
  • Maximum Shaft Speed: 3000 RPM
  • Maximum Count Speed: 3000 CPM
  • Accuracy +/-: 1%
  • Operating Temp: -10°C to +50°C
  • Storage Temp: -20°C to +50°C
  • Environmental Protection: IP40
  • Net Weight: 280g
