TABLE, TWX7 WORK CNTR INCLUDES ROUTER TABLE MODULE TRI-TWX7-RT001KIT

Code: 805750

Print
Product Code
TRI-TWX7-RT001KIT
RRP: $919.00
Buy Online
Technical Specifications
Brand Triton
Height 900 mm
Length 1036 mm
Type Work Centre
Warranty (months) Lifetime
Volts 220 - 240 V
Width 737 mm
Pack Weight
0.00
Description

The TWX7 builds on the legacy of previous Triton Workcentres, with their reputation for precision, ease of use and versatility. Using the latest advanced materials technology and a new fast-change modular approach, this new system is ideal for the workshop enthusiast as well as the on-site carpentry professional.

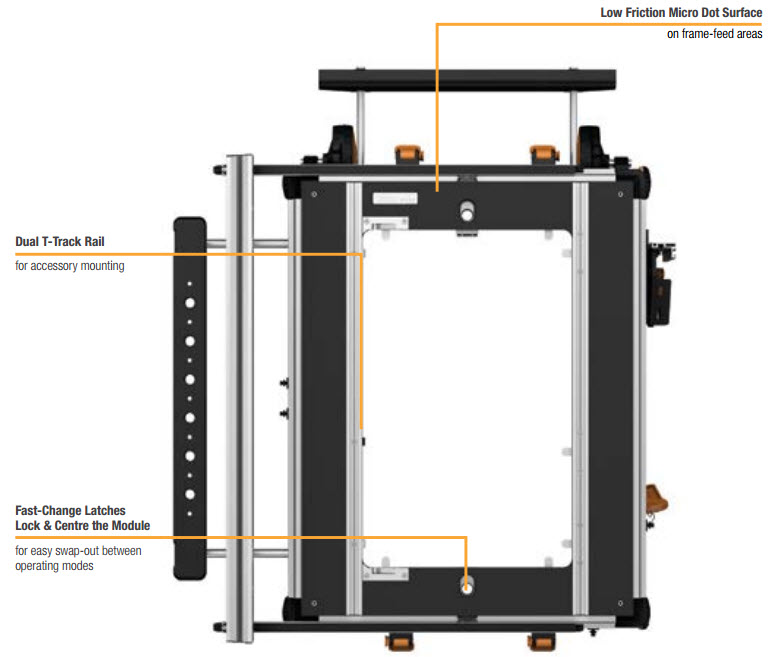

Lightweight and robust, extruded aluminium sections support an innovative low-friction work surface and clamping table module. Duel extruded T-rails, for attaching accessories, run the full length of the table.

Fast switch-out modules transform the Workcentre between modes from bare table to router table, table saw or project saw.

Optional side and outfeed supports extend the frame for larger workpieces, whilst a rugged transit kit and folding frame bring a new level of portability to this workshop classic.

Technical Specifications

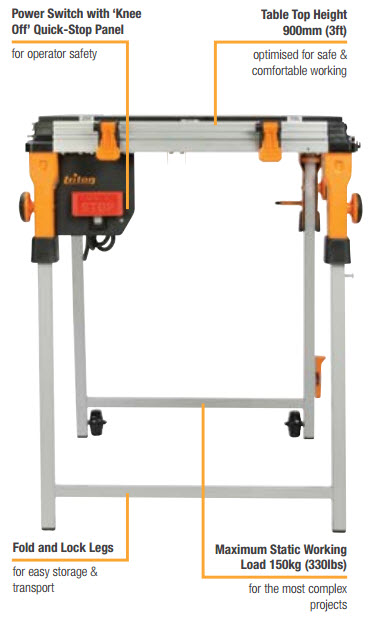

Dimensions (Standing) 1036 x 737 x 900 mm (40¾" x 29" x 35½")
Dimensions (Folded) 995 x 737 x 317 mm (39¼" x 29" x 12½")
Module Insert Dimensions 660 x 410 x 50mm (26" x 16¼" x 2")
Max Load Capacity 150kg
Weight (Chassis Only) 23.2kg

Product Brochure

Precision has been at the very heart of Triton’s philosophy since 1976, when the first Workcentre was produced. Born in Australia, Triton tools continue to be built with this philosophy at the forefront of every project. From award-winning routers and laser-guided circular saws, to the industry-renowned Superjaws and the new innovative TWX7 Workcentre, you can rely on Triton for tools that provide an accurate, quality finish every time.

Download Brochure

ROUTER TABLE MODULE

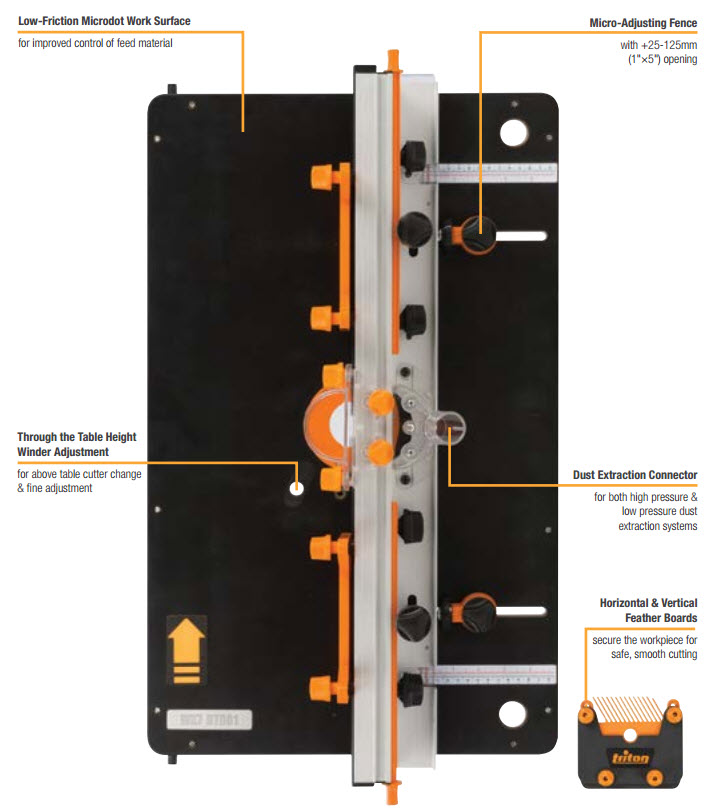

The router table module for the TWX7 Workcentre has a micro dot laminate surface, which produces minimal friction on the workpiece.

This allows it to move freely against the integral fence, and when working in freehand mode. Accuracy is assured with cruciform depth-adjustable extending face plates and micro adjusters, and safety is enhanced with the provision of both vertical and horizontal featherboards (supplied).

With a Triton Router fitted, precise adjustment is achieved with a through-the-table height winder. Close-fitting clear guards protect the operator.

The guard dust extraction point is positioned close to the cutter for maximum efficiency, working in combination with the router's own dust extraction connector under the work surface for dual extraction.

From simple edge-planing to robust panel-raising, this expert level mobile table is equally at home in the workshop or on site.

Technical Specifications
Module Size 660 x 410mm / 26¾" x 1658"
Extruded Fence Size 680 x 85mm / 26¾" x 3 38"
Extruded Fence Thickness 21.4mm / 2732"
MDF Fence Face Size (x2) 340 x 75mm / 132564" x 3"
MAX MDF Fence Face Opening 90mm (3½")
Fence Micro Adjusters 1mm (one full revolution)
Weight 9.8kg
Spacer Bar Settings 0.5, 1.0, 1.5, 2.0mm
Guard Height 0-76mm / 0-3"
Featherboard Stack Height 1: 9.5mm / ¾"
2: 15mm / 9/16"
3: 44mm / 1¾"
4: 50mm ⁄ 2"

Maximum Throat Plate Router Bit

Diameter (Dmax)

Large: 50mm / 2"
Medium: 40mm / 19/16"
Small: 20mm ⁄ 1316"
Dust Extraction Fitting High Pressure: 31.75mm / 1¼"
Low Pressure: 62.5mm / 2½"
Weight 9.8kg


Compatible Routers

Designed and engineered to 'quick fit' to the Router Module, with added features to enhance its operation and accuracy.

  • TRA001 – 2400W Router
  • MOF001 – 1400W Router
