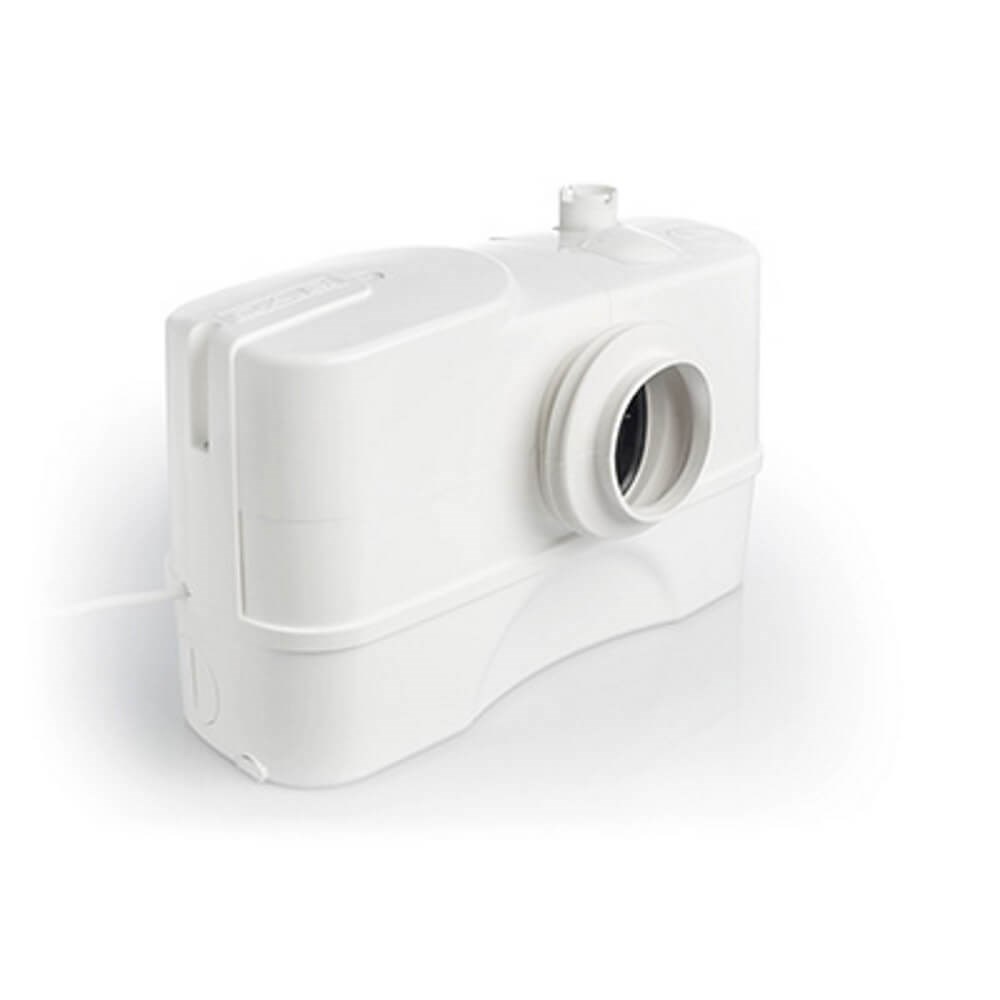

DAB-GENIX-110 - DAB Macerator Automatic Lifting Station

Order Code: 807410

Print
Product Code
DAB-GENIX-110
RRP: $1430.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Suitable For Sewage Water
Max Flow (L/min) 115 L/min
Max Head (m) 8 m
Water Resistant IP44
Pack Weight (KG):
10.00
Description
AUTOMATIC COLLECTION AND LIFTING STATIONS

0.32 kW, 240V
Features

GENIX is the new DAB macerator, designed to provide the maximum level of efficiency in the 3 main moments of its lifecycle.

Quick installation, comfort in utilization and simplified maintenance make GENIX the new benchmark in the setup of a bathroom ..where you never thought it was possible.

GENIX is indispensable when the wastewater coming from toilets, showers, sinks and cannot be expelled by gravity. These lifting stations can be installed wherever there is the wish to add a toilet during new installations, renovations or new constructions.

GENIX is provided with everything you need for a quick and easy installation. Fittings with non-return valves integrated, hose clamps, hose adaptors, ground-fixing screws, anti-vibration rubber nubs, and illustrated quick guide.


APPLICATIONS

Its use is necessary when toilet, shower, sink, or bidet waste water cannot be expelled due to gravity. These lifting stations can be used anywhere for the addition of a toilet, for new installations, refurbishments, or structural modifications. With the 110 model, in addition to a toilet, a further user can also be connected, like the sink. With the 130 model, in addition to the toilet, three further users can be connected, like the sink, the shower, and the bidet. A characteristic of the proposed models is their silent operation, further improved in the Comfort versions. The powerful and reliable pump, and the nickel ;plated stainless steel grinder, make the product durable, with practically no regular maintenance required. Extremely easy to repair in case of blocking, with the possibility of removing the motor assembly by simply removing two screws. The discharge tap ensures clean and problem-free maintenance. The check valves are built in the delivery connections, and in the side connections for 130 models. Available as extra accessories are an acoustic flooding prevention alarm, and an extension pipe, for adapting GENIX to pre-existing installations.

CONSTRUCTION FEATURES OF THE PUMP
  • 30 % barium loaded polypropylene tank. For the sound proofed version, 70 % barium loaded polypropylene sound proofer. 30 % fibre glass PPO impeller.
  • Stainless steel motor shaft.
  • Nickel plated stainless steel grinder.


CONSTRUCTION FEATURES OF THE MOTOR
  • Asynchronous, made of stainless steel. Stainless steel shaft and cover.
  • Thermal overheating protection.
  • Wear-resistant motor shaft.
