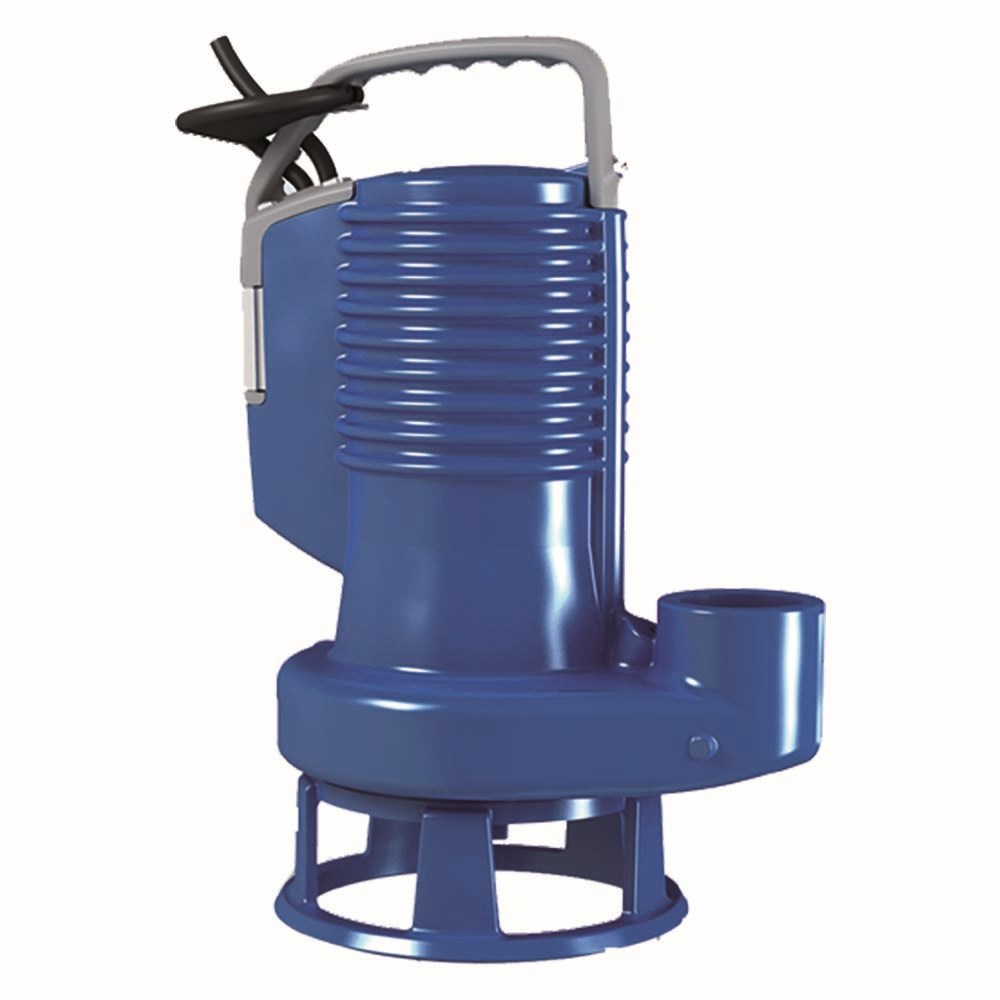

ZEN-DGBLUEP150/2/G50VMGEX - PUMP SUBMERSIBLE IECEX DIRTY WATER INDUSTRIAL 600L/M 12.3M 1.1

Code: 711704

Print
Product Code
ZEN-DGBLUEP150/2/G50VMGEX
RRP: $2750.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Suitable For Dirty Water
Bar 1.23 Bar
Approval IECex Zone 2 Approved
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 600 L/min
Hp 1.5 Hp
Kilo Watts 1.1 kW
Head Range Category a. 0 - 39 m
Max Head (m) 12.3 m
Port Size Outlet 2" BSPF outlet
Particle Size 50 mm
Warranty (months) 24 Months
Volts 240 V
Watts 1100 W
Pack Weight (KG):
0.00
Description
ZENIT DG Blue Professional Series

Suitable for heavy-duty applications with soiled biological wastewaters, sewage, rainwater and seepage. This electric pump is intended for both domestic and professional use.

1.1kW, 1.5hp, 240V with IECEx float switch, max hd 12.3m, max flow 600L/m, 2" BSPF outlet. Particle size 50mm.

Warranty

2 Year Zenit Warranty

Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Applications
  • Households
  • Strata corporations
  • water treatment plants
  • Car parks
  • Truck stops
  • Vehicle Workshops
  • Bus depots
  • Garages

Electromechanical assembly

Electromechanical assembly in EN-GJL-250 cast iron, for submerged operation, fitted with 2 (two) opposing silicon carbide mechanical seals in oil sump, and V-ring in direct contact with the liquid. Ecological dry motor. Pump body in single casting with motor casing.


Construction materials
CaseCast iron EN-GJL 250
ImpellerCast iron EN-GJL-250
Nuts and boltsStainless steel - Class A2-70
Standard gasketRubber - NBR
ShaftStainless steel - AISI 420
Paint typeEcological bicomponent epoxy (medium thickness 80 µm)
Set of standard mechanical sealsTwo silicon carbide mechanical seals (2SiC), V-ring

Zenit DG BluePRO Features
.
1. Lifting handle
Ergonomic aluminium alloy lifting and carrying handle, coated for excellent mechanical strength and corrosion resistance. Clip floatswitch adjustment.
2. Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.
3. Motor and electrical accessories
Dry motor with thermal protections. Single-phase models with internal capacitor. Three-phase models with motor protection relay (option).
4. Mechanical seals
Two silicon carbide mechanical seals (2SiC), and V-ring in direct contact with the liquid.
5. Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.
6. Breather
Breather which allows the air to be vented and ensure reliable pump priming even after long periods out of use.
7. Support foot
Reinforced technopolymer support foot with stainless steel plate (models 50, 75 and 100) or cast iron support foot (models 150 and 200).
8. Free passage
Full free passage allowing the expulsion of solids and preventing fouling of the impeller.


IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification

Spare Parts
Code
Part Number
Description
711360
ZEN-BEARING 6203ZZ
711022
ZEN2517028100000
710995
ZEN 230005040150000000
711079
ZEN602008031
800235
ZEN-S2145113023903
