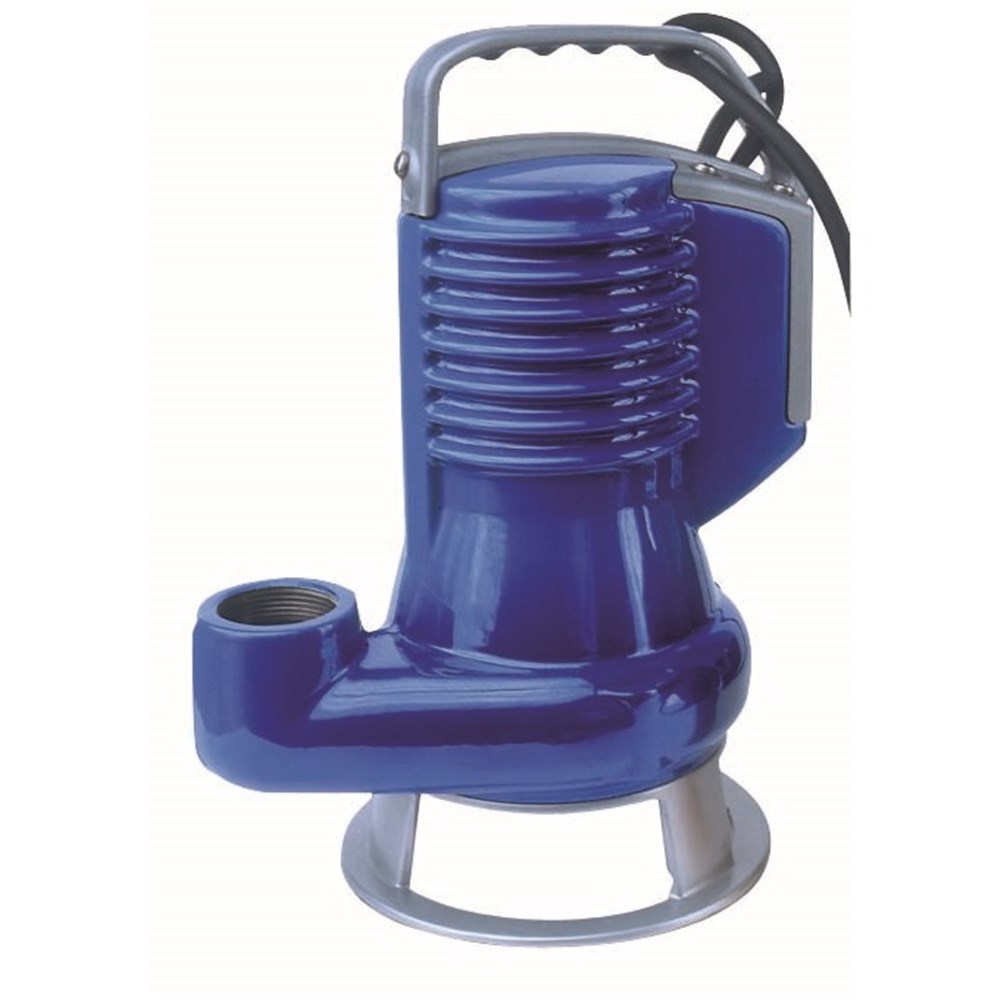

ZEN-DGBLUE100/2/G40VMEX - PUMP SUBMERSIBLE IECEX DIRTY WATER DOMESTIC 420L/M 11.6M 0.75KW

Code: 711168

Print
Product Code
ZEN-DGBLUE100/2/G40VMEX
RRP: $1648.90

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Suitable For Dirty Water
Bar 1.15 Bar
Approval IECex Zone 2 Approved
Flow Range Category e. 400 - 499 L/min
Flow Rate (L/min) 430 L/min
Hp 1 Hp
Kilo Watts 0.75 kW
Head Range Category a. 0 - 39 m
Max Head (m) 11.5 m
Port Size Outlet 1 1/2" BSPF outlet
Particle Size 40 mm
Warranty (months) 24 Months
Volts 240 V
Watts 750 W
Pack Weight (KG):
15.30
Description
ZENIT DG Blue Series - Vortex recessed impeller

Used with soiled biological wastewaters and sewage. Suitable and reliable for domestic use and residential applications.

0.75kW, 1.0hp, 240V without float switch, max hd 11.5m, max flow 430L/m, 1 1/2" BSPF outlet. Particle size 40mm.

Warranty

2 Year Zenit Warranty

Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

Zenit DG Blue Features
.
Lifting handle
Ergonomic technopolymer lifting and carrying handle. Clip floatswitch adjustment.
Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.
Motor and electrical accessories
Dry motor with thermal protections. Internal startup capacitor.
Mechanical seals
One silicon carbide mechanical seal (SiC) and one alumina graphite mechanical seal (AL), V-ring in direct contact with the liquid.
Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.
Support foot
Support foot in impact-resistant polypropylene.
Free passage
Full free passage allowing the expulsion of solids and preventing fouling of the impeller.


IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification

Spare Parts
Code
Part Number
Description
711026
ZEN270830510200400000
802099
ZEN270139510104000000
804983
ZEN 235360424137 GLASS RE-INFO
Zenit Pumps Product Selection Tool
