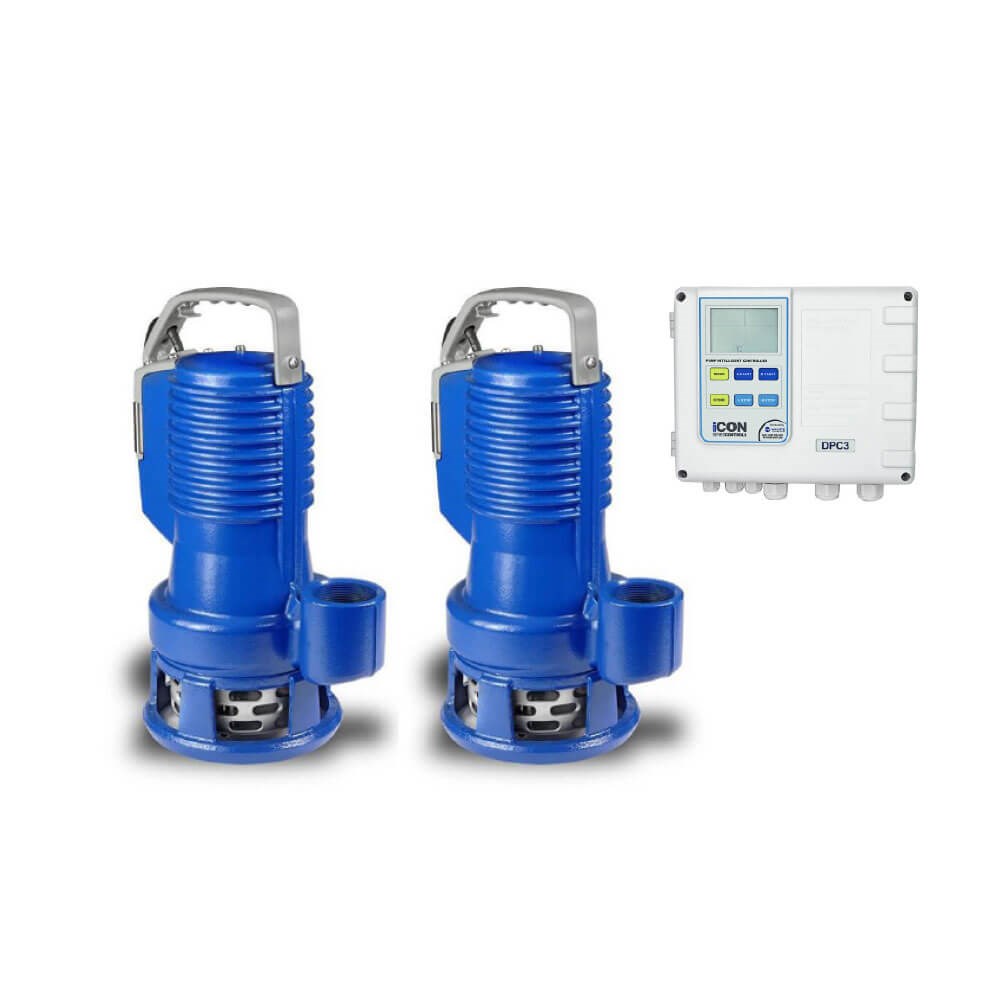

Zenit Twin DR Blue P200M and ICON DPC1-22S controller with transducer - KIT

Code: 806006

Print
Product Code
ZENIT TWIN DRBLUEP200M PROMO
RRP: $5040.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 1.7 Bar
Approval IECex Zone 2 Approved
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 690 L/min
Hp 2 Hp
Kilo Watts 1.5 kW
Head Range Category a. 0 - 39 m
Max Head (m) 17 m
Port Size Outlet 2" BSPF outlet
Particle Size 10X30 mm
Volts 240 V
Watts 1500 W
Pack Weight (KG):
0.00
Description
  • 2 x Zenit DRBLUEP200/2/G50VMEX
  • 1 x Dual Pump Control Panel 240V 2.2kW
Features
ZENIT DR Blue Professional Series - Open multi-vane fully submerged impeller

Suitable for use with clear or slightly soiled wastewaters containing small solids, strained water, rainwater,seepage and water pumped from underground, where high pumping rates are required. This electric pump is intended for both domestic and professional use.

1.5kW, 2.0hp, 240V without float switch, max hd 17m, max flow 690L/m, 2" BSPF outlet. Particle size 10x30mm.

Warranty

2 Year Zenit Warranty

BIANCO iCON Dual Pump Controller

The iCON range of intelligent controllers are suitable for installation in various industrial and domestic applications. Controllers are generally used in pumping applications where control of single or multiple pumps are required. Settings for drainage, pressure boosting and transfer applications are easily accomplished by function switches. The iCON intelligent controller is user friendly with many features for controlling your pumps, protecting your pumps and also reporting of faults with live data and historical data retention. Control of your pumps is also possible from a slave controller which is included with each iCON intelligent controller as standard. The iCON controller is supplied standard with RS485 communication interface for easy integration into your Building Management System.

The iCON controller enclosure has an ingress protection rating IP54 with an intelligent dynamic LCD display for pump running information and is suitable for installation both indoors and outdoors. Automatic calibration of the iCON intelligent controller is easily completed to set your pump thermal overload by means of push buttons. Optional enclosure with an external door is available as required or requested.

Warranty

2 Year Warranty

IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification
