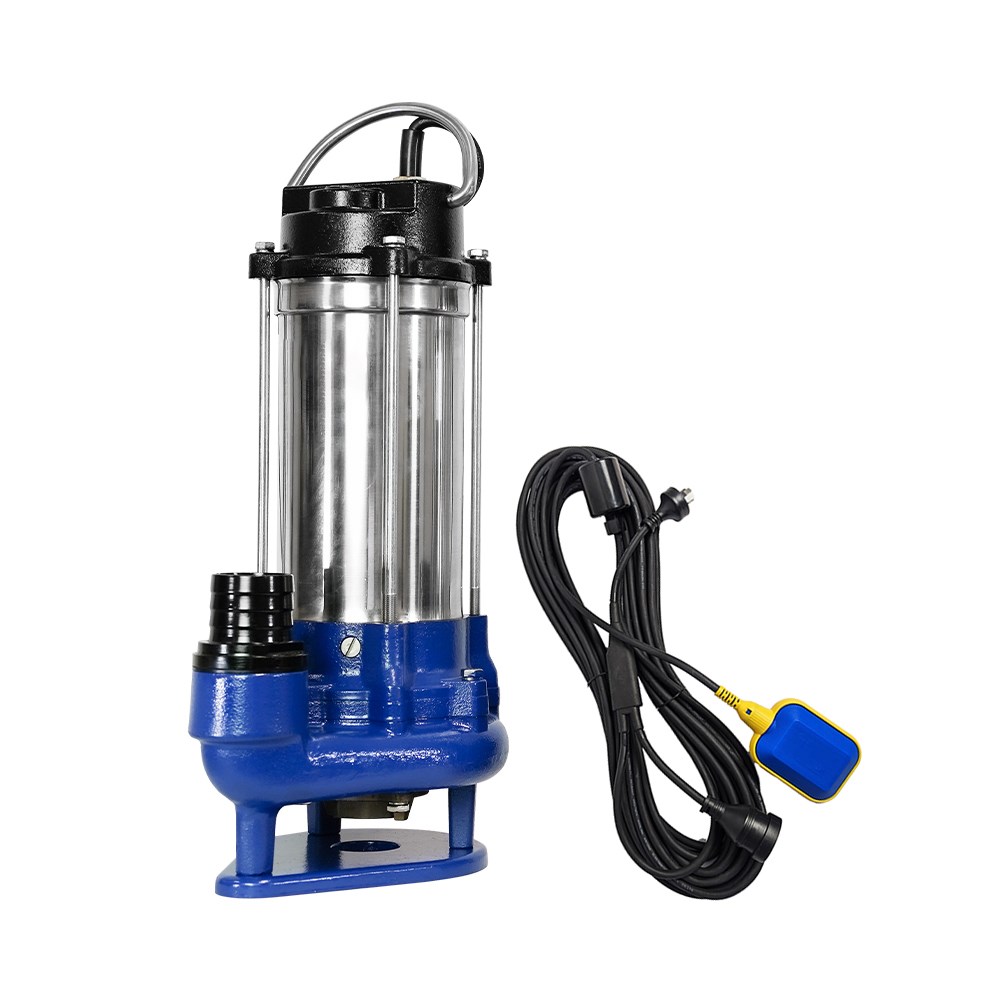

Bianco NXT BIA-120GMS2-PIGGYBACKFLOAT-V4 1.5kW B-Series Industrial Grade Grinder Pump with Piggyback Float

Order Code: 813306

Print
Product Code
BIA-120GMS2-PIGGYBACKFLOAT-V4
RRP: $2222.00 incl. GST
Find a Service Agent
Pack Weight (KG):
0.00
Description

This industrial-grade grinder pump is engineered for wastewater applications with soft solids, featuring an aggressive, replaceable cutting mechanism for efficient transfer to sewer mains or treatment facilities.

Includes:
  • 1 x BIA-B120GMS2 Grinder Pump
  • 1 x WHI-PIGGYBACKFLOAT-V4 Float
Applications:
  • Grey/black water pumping
  • Sump emptying
  • Septic effluent/sewage disposal
  • Wastewater with soft solids
Features:
  • High-grade 7CR17 cutting device
  • Replaceable grinder
  • Dual ceramic/graphite seal
  • H7RNF neoprene oil/chemical-resistant cable
Specifications
Power outage 1.5kW
Volts 230V
Amps 9.5
Max head 20m
Max flow 341l/min
Discharge outlet size 2" BSPF
Cable length 10m
Float switch 15m
Float amps 10
Net weight 27kg



Features

A ‘Piggyback’ interupter type float provides an easy to fit method of pump control without the need for additional control modules or the services of an electrician.
Whenever you want low level ‘dry-run’ protection, want to chose the operating levels or for tank filling operation this pre-wired fl oat is the ideal choice.

Features:

  • Fast, easy installation. No electrician required
  • Pre-fitted counterweight
  • 15m ‘plug and play’ waterproof cable
  • Certificate of Approval SAA 190723-EA
  • Improved pump control
