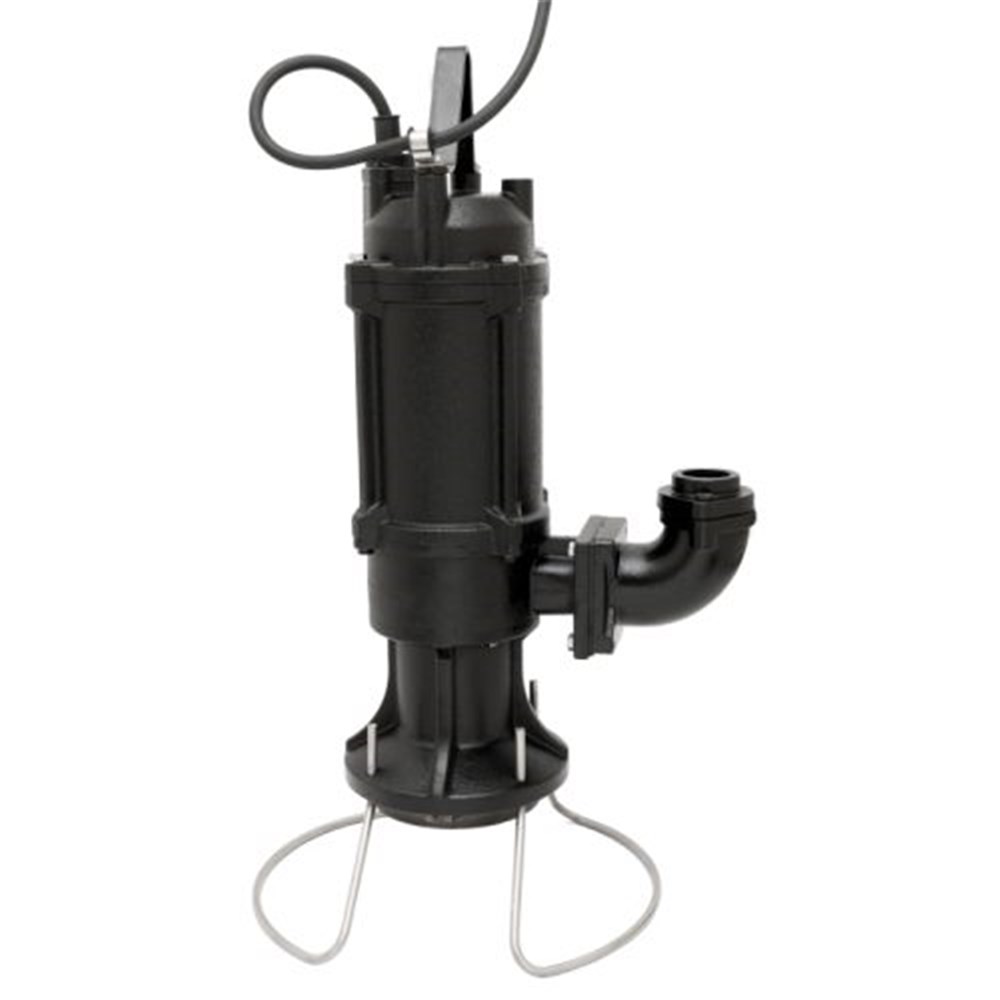

BIA-PDG150T - PUMP SUBMERSIBLE SEWAGE 50L/MIN 50M 1100W 415V

Code: 800589

Print
Product Code
BIA-PDG150T
RRP: $4400.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco Pumpz
Product Type Sewage Pump
Suitable For Sewage and Wastewater
Bar 5 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 50 L/min
Float Float Not Included
Hp 1.5 Hp
kPa 500 kPa
Kilo Watts 1.1 kW
Head Range Category b. 40 - 59 m
Max Head (m) 50 m
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 415 V
Watts 1100 W
Pack Weight (KG):
0.00
Description
Bianco Positive Displacement Grinder Pump High Pressure

The pump is a positive displacement grinder pump with a heavy duty cutter and cutter ring used to treat unstrained waste waters in "low" flow, high head applications.

Bennifts:

  • Cast iron pump body for durability under harsh conditions
  • Heavy duty silicon carbide mechanical seal
  • Cutter with cutter rings cuts solids to smallest possible size to reduce clogging
  • Used for unstrained waste waters
  • Perfect for low pressure sewer applications

1.1kW, 1.5hp, 415V, without float switch, max hd 50m, max flow 50 L/m, 1 1/4” BSPF outlet
3 phase pumps require contactor and overload.

Warranty

2 Year Bianco Pumpz Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Product Brochures
Download Brochures v1.0 Download Brochures v1.01
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Certificates & Compliance Information
Download Certificates & Compliance Information v1.0
