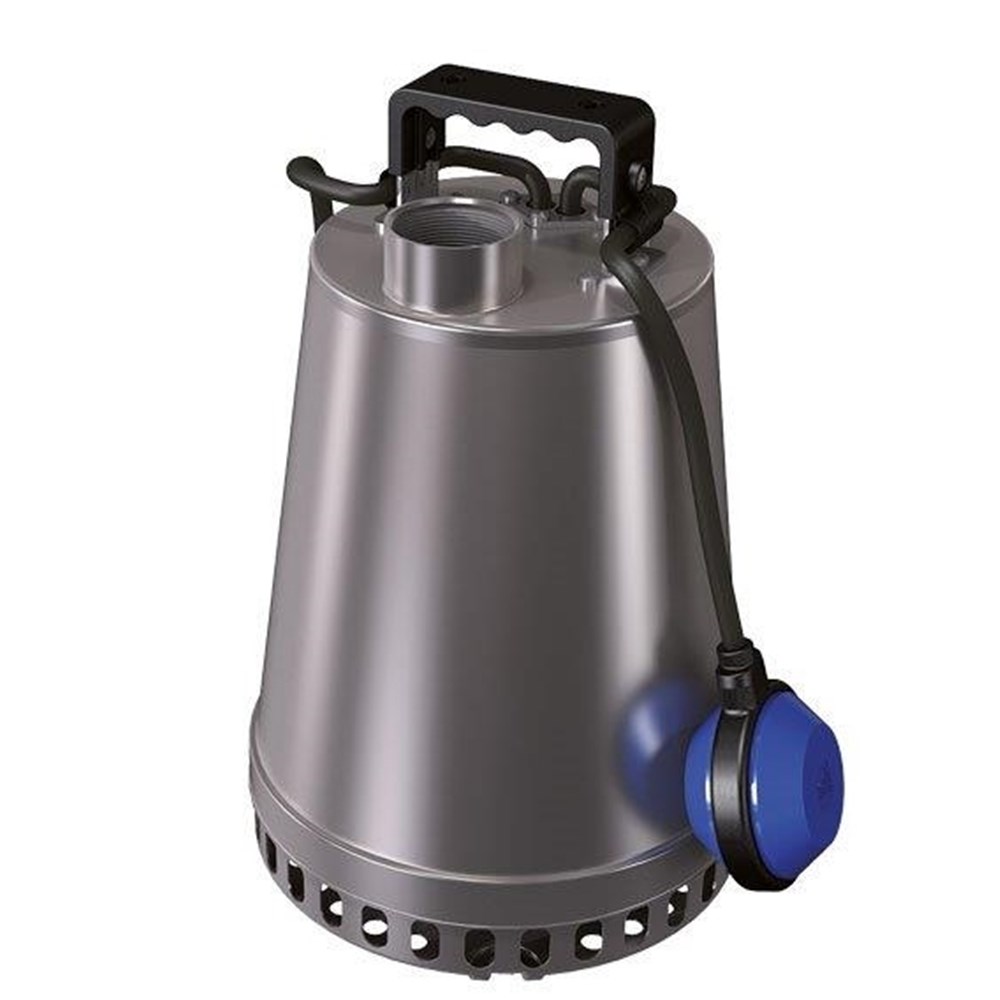

ZEN-DRSTEEL75MA - PUMP SUBMERSIBLE SLIGHTLY DIRTY WATER 330L/M 16M 0.75KW 240V

Code: 711355

Print
Product Code
ZEN-DRSTEEL75MA
RRP: $1870.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 1.6 Bar
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 330 L/min
Hp 1 Hp
Kilo Watts 0.75 kW
Head Range Category a. 0 - 39 m
Max Head (m) 16 m
Port Size Outlet 1 1/2" BSPF outlet
Particle Size 12 mm
Volts 240 V
Watts 750 W
Pack Weight (KG):
10.20
Description
ZENIT DR Stainless Steel Drainage

Designed for stormwater dewatering, or water from ponds and pits and for rainwater collection.

0.75kW, 1.0hp, 240V, max hd 16m, max flow 330L/m, solids up to 12mm, 1 1/2" BSPF outlet

Warranty

2 Year Zenit Warranty


Zenit DR-Steel Features
.
1. Lifting handle
Chrome-nickel steel AISI 304.
2. Cooling system
As for the internal ricycle pumped liquid system, the motor cooling is guaranted even if the pump is partially covered by the liquid.
3. Mechanical seal
Three mechanical seals; double seal (SiC-Al) in oil sump with food-grade oil lubrication, one V-ring in direct contact with the liquid.
4. Strainer
A special set allows the sewage pump to be transformed into a dry floor one. The minimum level of liquid can be lowered to 5 mm from the ground by setting two special shimming.
5. Impeller
Chrome-nickel steel AISI 304.
