ZEN-DRSTEEL55MA - PUMP SUBMERSIBLE SLIGHTLY DIRTY WATER 300L/M 12.4M 0.55KW 240V

Code: 711354

Print
Product Code
ZEN-DRSTEEL55MA
RRP: $1082.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Product Type Submersible Pump
Brand Zenit Pumps
Bar 1.24 Bar
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 300 L/min
Hp 0.75 Hp
Kilo Watts 0.55 kW
Head Range Category a. 0 - 39 m
Head (max) 12.4 m
Port Size Outlet 1 1/2" BSPF outlet
Particle Size 12 mm
Volts 240 V
Watts 550 W
Pack Weight
0.00
Description
ZENIT DR Stainless Steel Drainage

Designed for stormwater dewatering, or water from ponds and pits and for rainwater collection.

0.55kW, 0.75hp, 240V, max hd 12.4m, max flow 300L/m, solids up to 12mm, 1 1/2" BSPF outlet

Warranty

2 Year Zenit Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0

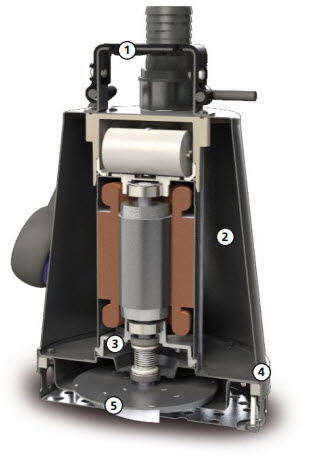

Zenit DR-Steel Features
.
1. Lifting handle
Chrome-nickel steel AISI 304.
2. Cooling system
As for the internal ricycle pumped liquid system, the motor cooling is guaranted even if the pump is partially covered by the liquid.
3. Mechanical seal
Three mechanical seals; double seal (SiC-Al) in oil sump with food-grade oil lubrication, one V-ring in direct contact with the liquid.
4. Strainer
A special set allows the sewage pump to be transformed into a dry floor one. The minimum level of liquid can be lowered to 5 mm from the ground by setting two special shimming.
5. Impeller
Chrome-nickel steel AISI 304.
