Order Code: 711301

Product Code
RRP: $3025.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 1.7 Bar
Approval IECex Zone 2 Approved
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 690 L/min
Float Float Not Included
Hp 2 Hp
Kilo Watts 1.5 kW
Head Range Category a. 0 - 39 m
Max Head (m) 17 m
Port Size Outlet 2" BSPF outlet
Particle Size 10X30 mm
Volts 415 V
Watts 1500 W
Pack Weight (KG):

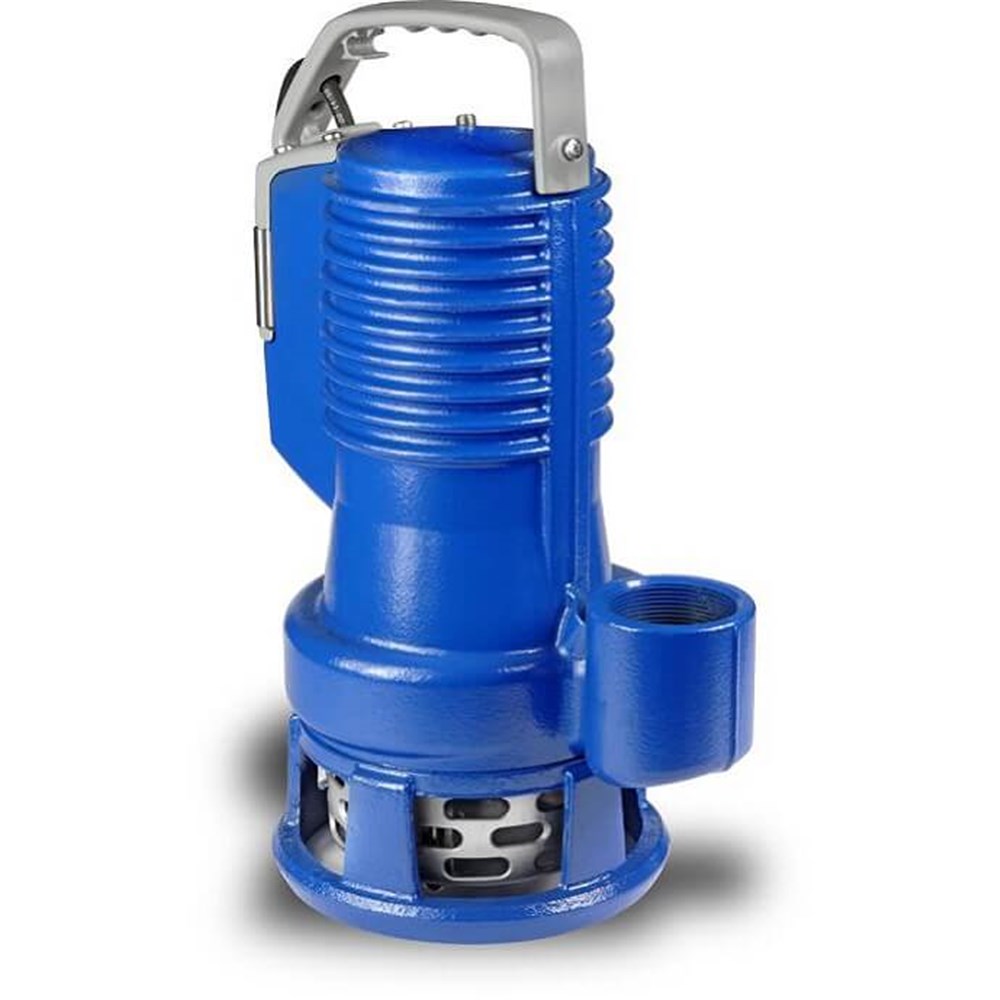

ZENIT DR Blue Professional Series - Open multi-vane fully submerged impeller

Suitable for use with clear or slightly soiled wastewaters containing small solids, strained water, rainwater,seepage and water pumped from underground, where high pumping rates are required. This electric pump is intended for both domestic and professional use.

1.5kW, 2.0hp, 415V without float switch, max hd 17m, max flow 690L/m, 2" BSPF outlet. Particle size 10x30mm.

3 phase pumps require contactor and overload.


2 Year Zenit Warranty

Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

Zenit DR BluePRO Features
1. Lifting handle
Ergonomic aluminium lifting and carrying handle, coated for excellent mechanical strength and corrosion resistance. Clip floatswitch adjustment.
2. Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.
3. Motor and electrical accessories
Dry motor with thermal protections. Single-phase models with internal capacitor. Three-phase models with motor protection relay (option).
4. Mechanical seals
Two silicon carbide mechanical seals (2SiC), and V-ring in direct contact with the liquid.
5. Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.
6. Breather
Breather which allows the air to be vented and ensure reliable pump priming even after long periods out of use.
7. Intake strainer
Stainless steel intake strainer and diffuser plate (models 50, 75 and 100). Polypropylene intake strainer with cast iron diffuser plate and foot (models 150 and 200).

IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification

Spare Parts
Part Number
ZEN 230005040150000000
Zenit Pumps Product Selection Tool
