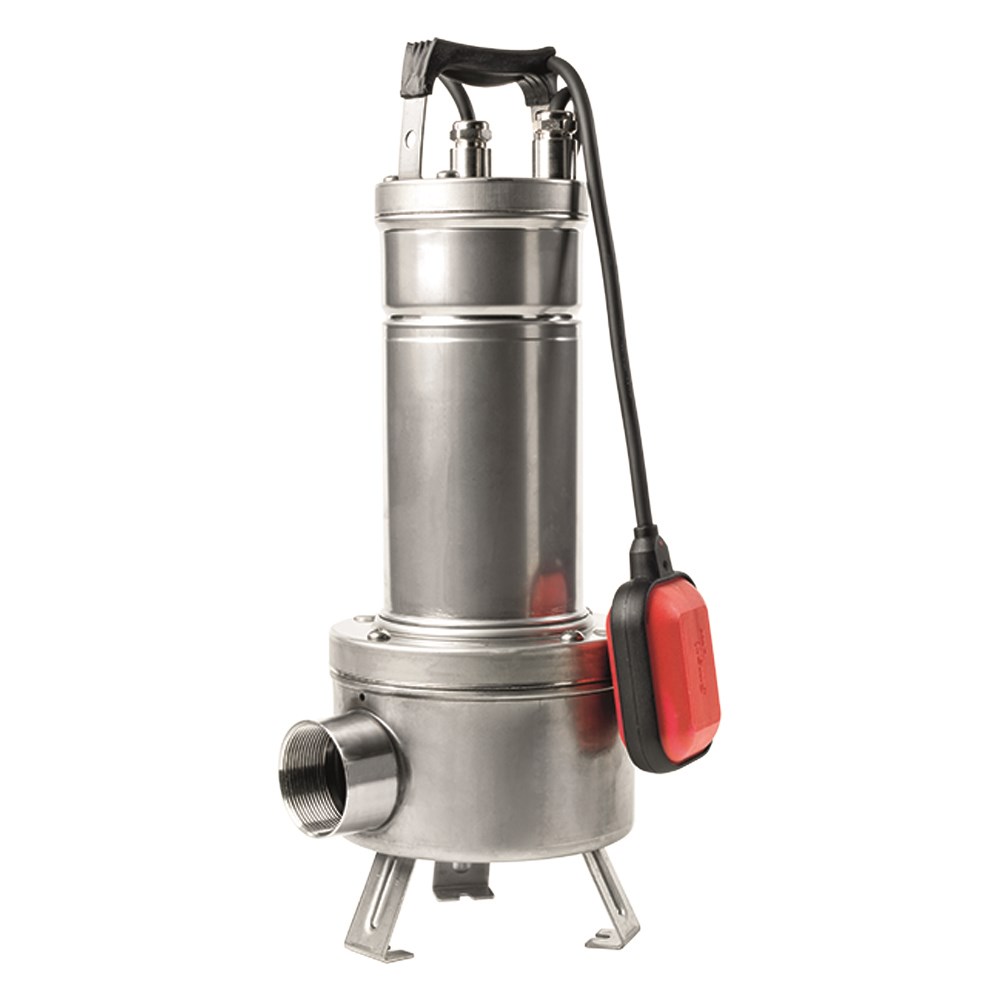

DAB-FEKAVS750MA - PUMP SUBMERSIBLE HEAVY DUTY WITH FLOAT 400L/MIN 9.6M 0.75KW 240V

Code: 701560

Print
Product Code
DAB FEKAVS750MA
RRP: $990.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Product Type Vortex Pump
Brand DAB Pumps
Suitable For Dirty Water
Bar 0.96 Bar
Flow Range Category e. 400 - 499 L/min
Flow Rate (L/min) 400 L/min
Hp 1 Hp
Kilo Watts 0.75 kW
Head Range Category a. 0 - 39 m
Head (max) 9.6 m
Port Size Outlet 2" BSPF outlet
Powered Electric
Particle Size 50 mm
Volts 240 V
Warranty (months) 24 Months
Watts 750 W
Pack Weight
13.86
Description
DAB Heavy Duty Stainless Steel Vortex Pumps

Submersible centrifugal pump with liquid vortex cast steel impeller (technopolymer impeller for Feka VX), suitable for pumping sewer water and waste water in general containing solids up to a maximum size of 50 mm. Handle with insulating rubber cover. AISI 316 stainless steel drive shaft. Double mechanical seal with intermediate oil chamber (atoxic oil), in carbon/alumina on the motor side and silicon carbide/silicon carbide on the pump side.

0.75kW, 1.0hp, 240V, max hd 9.6m, max flow 400L/m, 2" BSPF outlet. Particle size 50mm.

Warranty

2 Year DAB Pumps Warrranty
