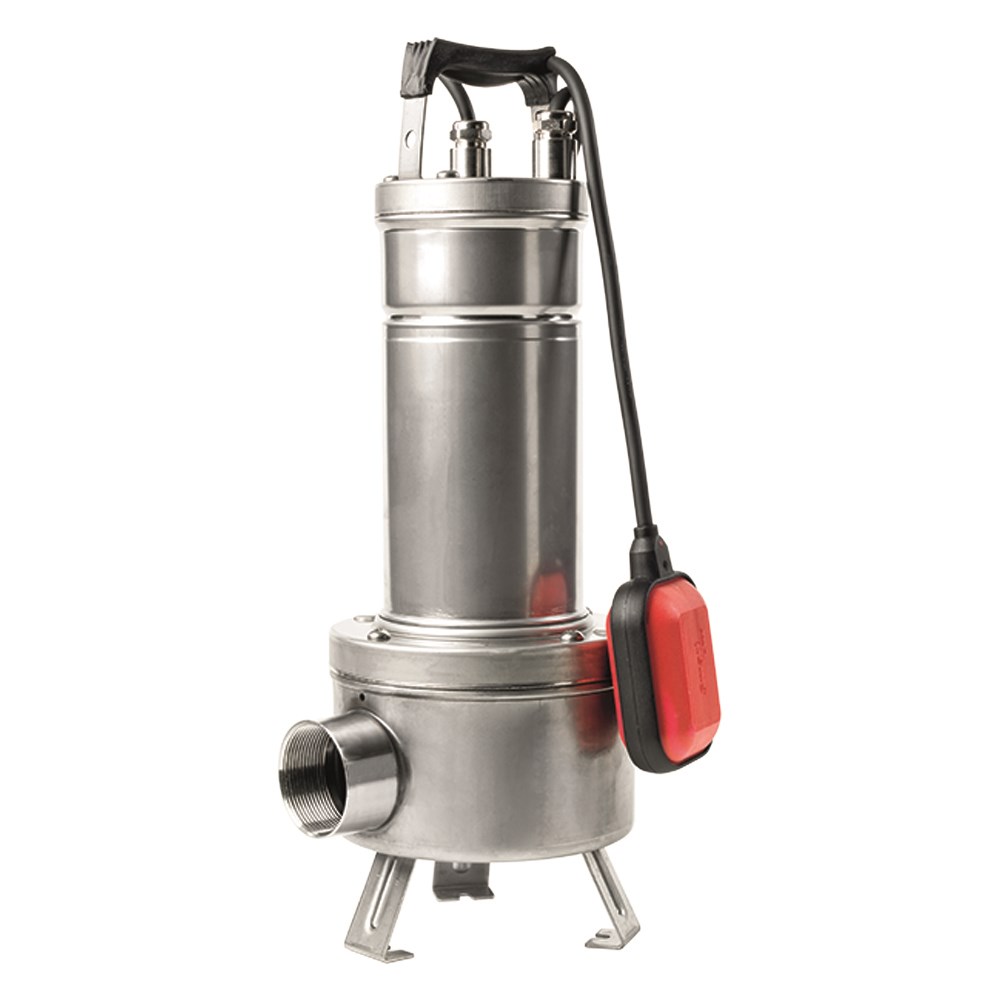

DAB-FEKAVS550MA - PUMP SUBMERSIBLE HEAVY DUTY WITH FLOAT 330L/MIN 7.4M 0.55KW 240V

Code: 701559

Print
Product Code
DAB FEKAVS550MA
RRP: $1008.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Flow Rate (L/min) 330 L/min
Hp 0.75 Hp
Kilo Watts 0.55 kW
Head (max) 7.4
Particle Size 50mm
Volts 240 V
Pack Weight
14.10
Description
DAB Heavy Duty Stainless Steel Vortex Pumps

Submersible centrifugal pump with liquid vortex cast steel impeller (technopolymer impeller for Feka VX), suitable for pumping sewer water and waste water in general containing solids up to a maximum size of 50 mm. Handle with insulating rubber cover. AISI 316 stainless steel drive shaft. Double mechanical seal with intermediate oil chamber (atoxic oil), in carbon/alumina on the motor side and silicon carbide/silicon carbide on the pump side.

0.55kW, 0.75hp, 240V, max hd 7.4m, max flow 330L/m, 2" BSPF outlet. Particle size 50mm.

Warranty

2 Year DAB Pumps Warrranty
