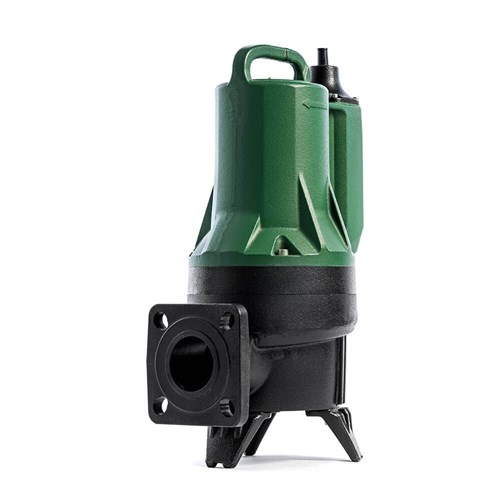

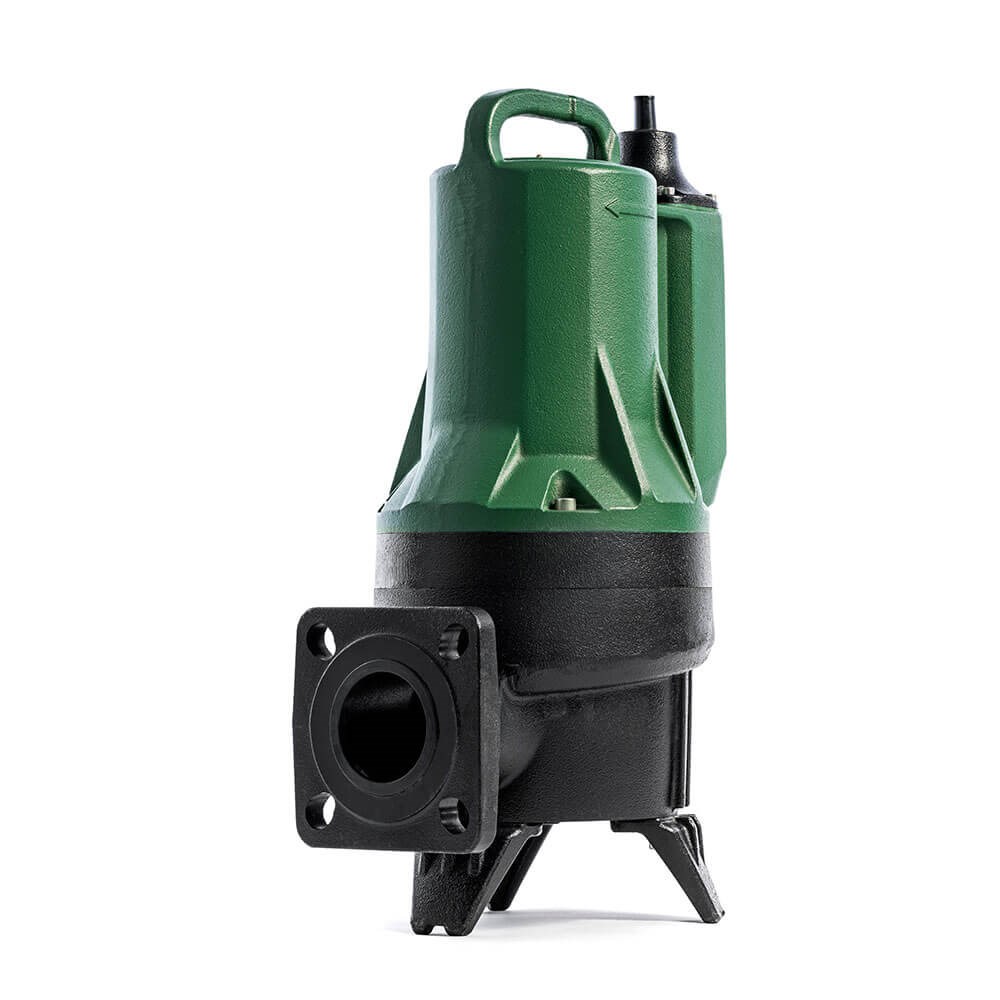

DAB-FEKAFXC20.07TEX - Drainage IECX Approved Submersible Pump 600 L/M 9.8M 0.7KW 415V

Code: 809449

Print
Product Code
DAB-FEKAFXC20.07TEX
RRP: $2420.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Bar 1
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 600 L/min
Kilo Watts 0.7 kW
Head Range Category a. 0 - 39 m
Max Head (m) 9.8 m
Volts 415 V
Pack Weight (KG):
37.00
Description

Drainage Pump

Max head 9.8m, max flow 600 L/m, 2"BSPF

Features
  • Anti-clogging channel impeller.
  • Suitable for drainage and the transfer of effluent and sewage water, containing solids up to 50mm
  • Pump with patented super vortex impeller increase performance without compromising the ability to work in the presence of large solids and long fibres, guaranteeing a completely free passage.
  • Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid direct contact with the pumped liquid.
  • Motor shaft in anticorrosion stainless steel AISI 304
  • External cataphoresis and two component coating for corrosion resistance
  • Resin sealed cable gland
  • Compliant with waste water standards EN 12050
  • Super Vortex impeller, patented by DAB
  • Threaded and flanged outlet
Warranty

2 Year Pump Parts and Labour Warranty

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
