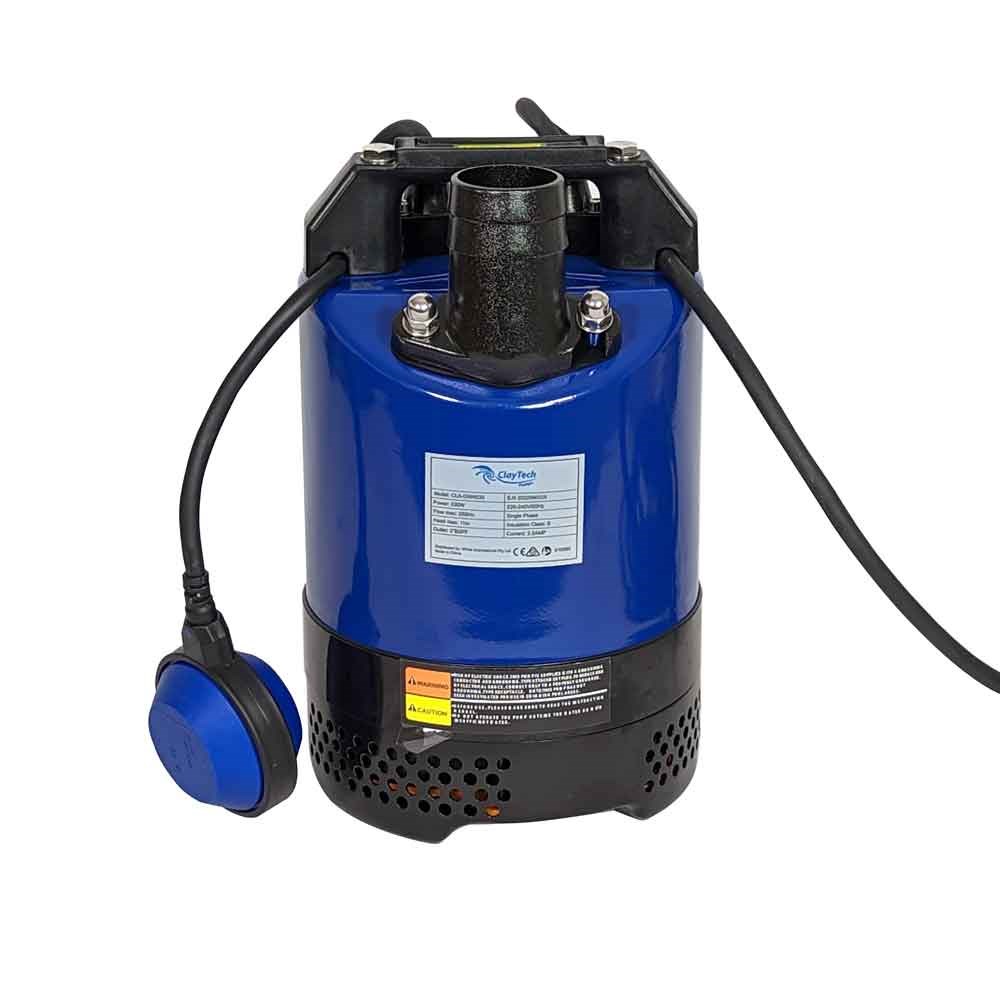

Claytech DWA530 DeWatering Pump

Order Code: 810680

Print
Product Code
CLA-DWA530
RRP: $528.00 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand Claytech Pumps
Product Type Drainage Pump
Suitable For Clean Water
Flow Range Category c. 200 - 300 L/min
Flow Rate (L/min) 250
Float Yes
Kilo Watts 0.53
Max Flow (L/min) 250
Head Range Category a. 0 - 39 m
Max Head (m) 11
Port Size Outlet 2"
Powered Electric
Volts 240
Watts 530
Pack Weight (KG):
0.00
Description

The ClayTech DWA530 is a light duty, occasional use pump with a flexible control float suitable for pumping mostly clean water with minimum soft solids or other contamination.

The DWA530 offers outstanding fl ow and head for its size and is ideal for de-watering tasks – emptying sumps and flooded areas or for transferring water from a tank, shallow well or pond.

Features
  • Automatic Operation
  • Quality pump materials and construction to ensure reliable operation
  • Industrial grade coating
  • 10m H07RN-F Neoprene power lead and fl oat lead
  • Easy to install and use
Benefits
  • Light weight - easy to lift and lower
  • Compact and able to be employed in sumps where space is limited
Hydrulic Performance

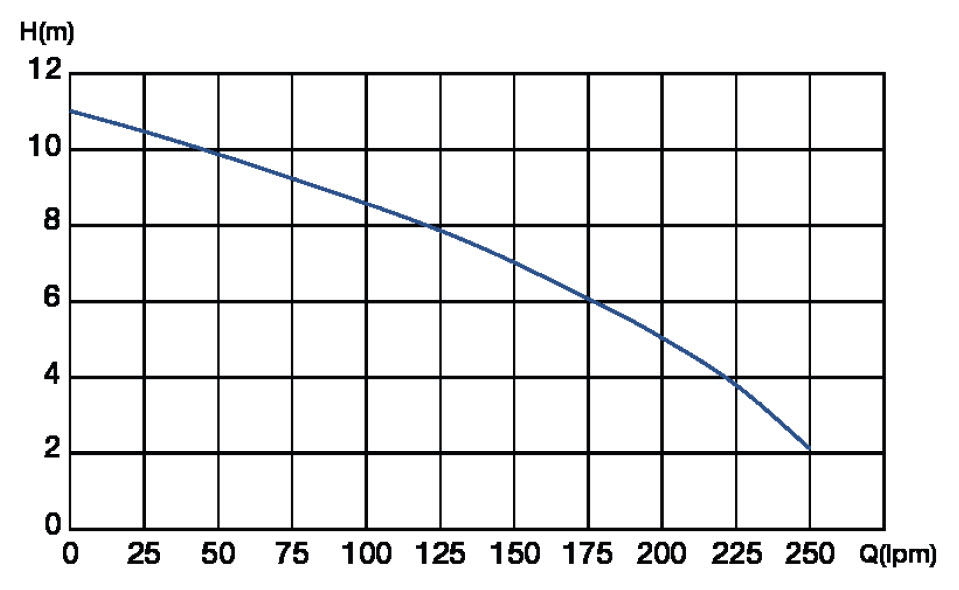

Pump Curves

Technical Data
RATED POWER (W) 530W
MAX. FLOW [LPM] 250 lpm
MAX. HEAD [M] 11m
WORKING TEMPERATURE < 40°C
LIQUID TEMPERATURE 3°C - 40°C
MAX. IMMERSION DEPTH 10m
MAX. DIA. OF PARTICLE < 6mm
MOTOR DUTY S1 Continuous
MOTOR PROTECTION LEVEL Class B
MOTOR PROTECTION In-built auto re-setting thermal overload
CAPACITOR 10 uF +/-5% 450V
MOTOR SHAFT Stainless Steel 201
RATED VOLTAGE 220V-240V 50 Hz
RATED CURRENT 2.0A @ 230V
POWER CABLE TYPE 10m H07RN-F
PROTECTION CLASS IPX8
IMPELLERS Single Impeller
HYDRAULIC BODY Coated AISi12
INLET STRAINER Yes
OUTLET 2” DN hose tail
MECHANICAL SEALS Graphite/Ceramic
AUTOMATION FUNCTION Flexible Float Switch
NET WEIGHT (KG) Pump only 13.0kg
PACKAGE DIMENSION 220Lx220Wx340H (mm)
