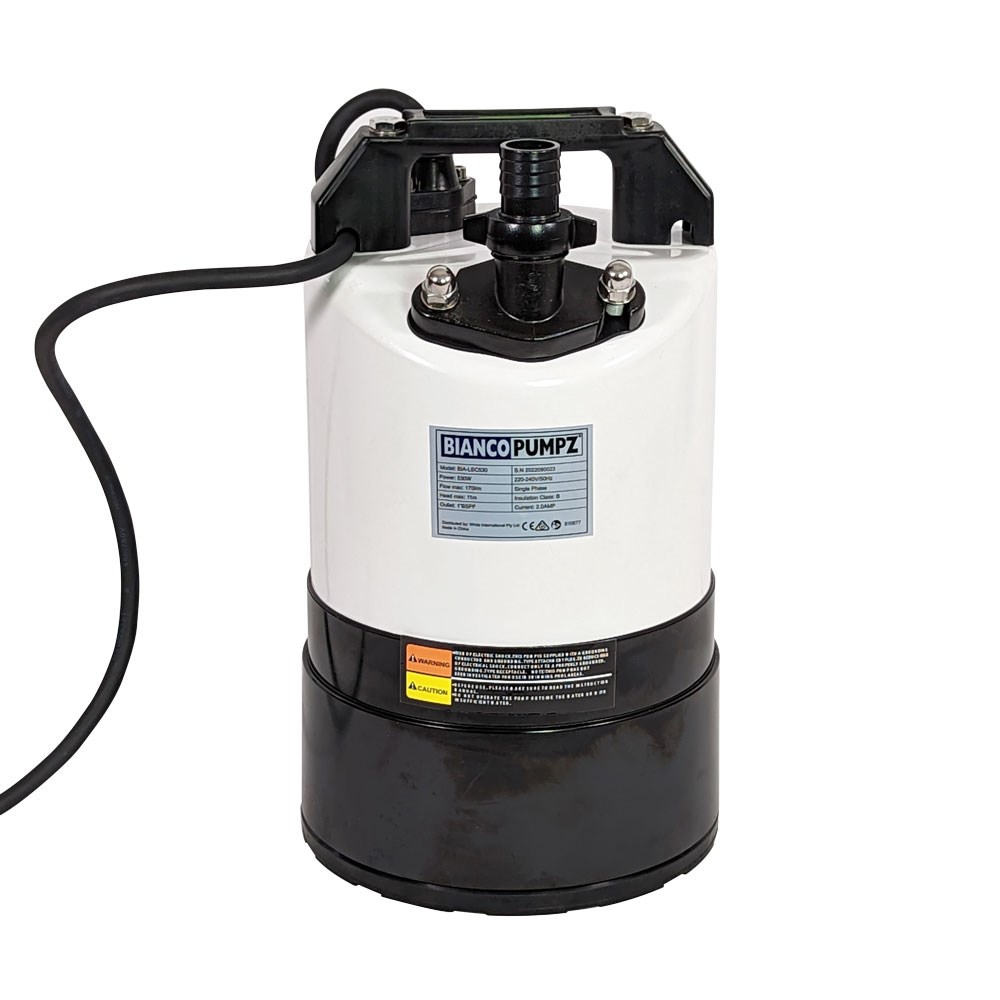

The Bianco LSC530 is a manually operated, light duty, occasional use pump suitable for pumping mostly clean water with minimum soft solids or other contamination
The LSC530 is a ‘puddle sucker’ type pump. Once primed and pumping, it will pump down to depths less than 3mm making it ideal for basement, garage or pool drainage applications.
Benefits:
- Light weight - easy to lift and lower
- Compact and able to be employed in sumps where space is limited
Features:
- Pump can be primed through discharge outlet for startup at any water level. The Internal check valve holds prime and restricts back flow through pump when stopped.
- Quality pump materials and construction to ensure reliable operation
- Industrial grade coating
- 10m H07RN-F Neoprene power lead and float lead
- Easy to install and use

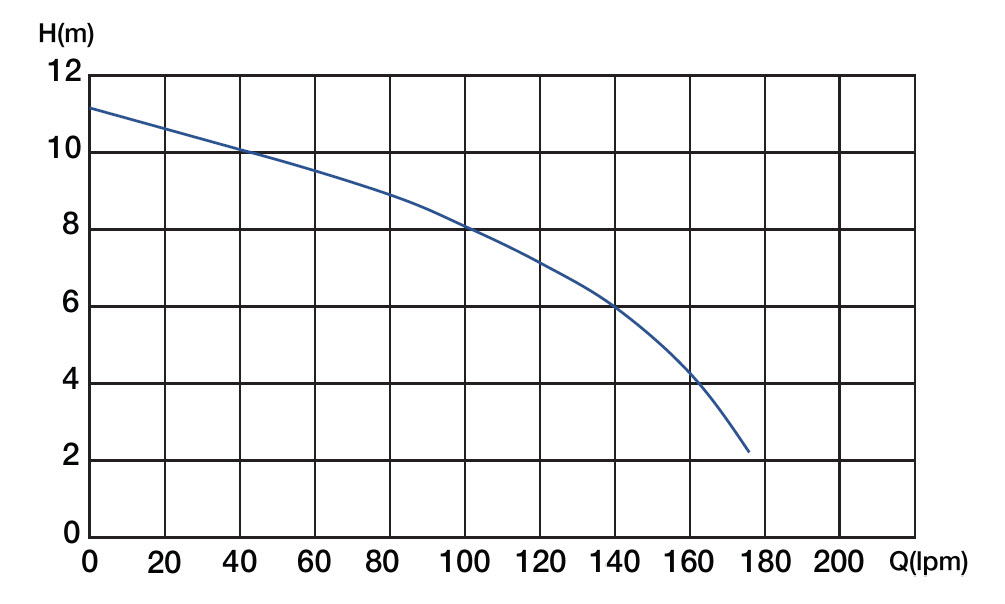

Hydraulic Performance
| Technical Data |
| RATED POWER (W) |
530W |
| MAX. FLOW [LPM] |
170 lpm |
| MAX. HEAD [M] |
11m |
| WORKING TEMPERATURE |
< 40°C |
| LIQUID TEMPERATURE |
3°C - 40°C |
| MAX. IMMERSION DEPTH |
10m |
| MAX. DIA. OF PARTICLE |
< 2mm |
| MOTOR DUTY |
S1 Continuous |
| MOTOR PROTECTION LEVEL |
Class B |
| MOTOR PROTECTION |
In-built auto re-setting thermal overload |
| CAPACITOR |
10 uF +/-5% 450V |
| MOTOR SHAFT |
Stainless Steel 201 |
| RATED VOLTAGE |
220V-240V 50 Hz |
| RATED CURRENT |
2.0A @ 230V |
| POWER CABLE TYPE |
10m H07RN-F |
| PROTECTION CLASS |
IPX8 |
| IMPELLERS |
Single Impeller |
| HYDRAULIC BODY |
Coated AISi12 |
| INLET STRAINER |
No |
| OUTLET |
1” DN hose tail |
| MECHANICAL SEALS |
Graphite/Ceramic |
| AUTOMATION FUNCTION |
N/A - Manual Operation |
| NET WEIGHT (KG) |
Pump only 13.5kg |
| PACKAGE DIMENSION |
220Lx220Wx340H (mm) |
