RS6-JETCOM82NXT RAINSAVER MK6PUMP KIT CLEAN WATER DOMESTIC 60L/MIN 47M 240V

Code: 809825

Print
Product Code
RS6 JETCOM82NXT
RRP: $1444.30 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco Rainsaver
Product Type Pressure System
Suitable For Rainwater Harvesting
Bar 4.6 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 0.8HP
kPa 476kPa
Kilo Watts 0.6 kW
Head Range Category b. 40 - 59 m
Max Head (m) 47 m
Position 3/4" Rainsaver
Port Size Inlet 3/4" Rainsaver
Powered Electric
Taps 6 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 600
Pack Weight (KG):
0.00
Description

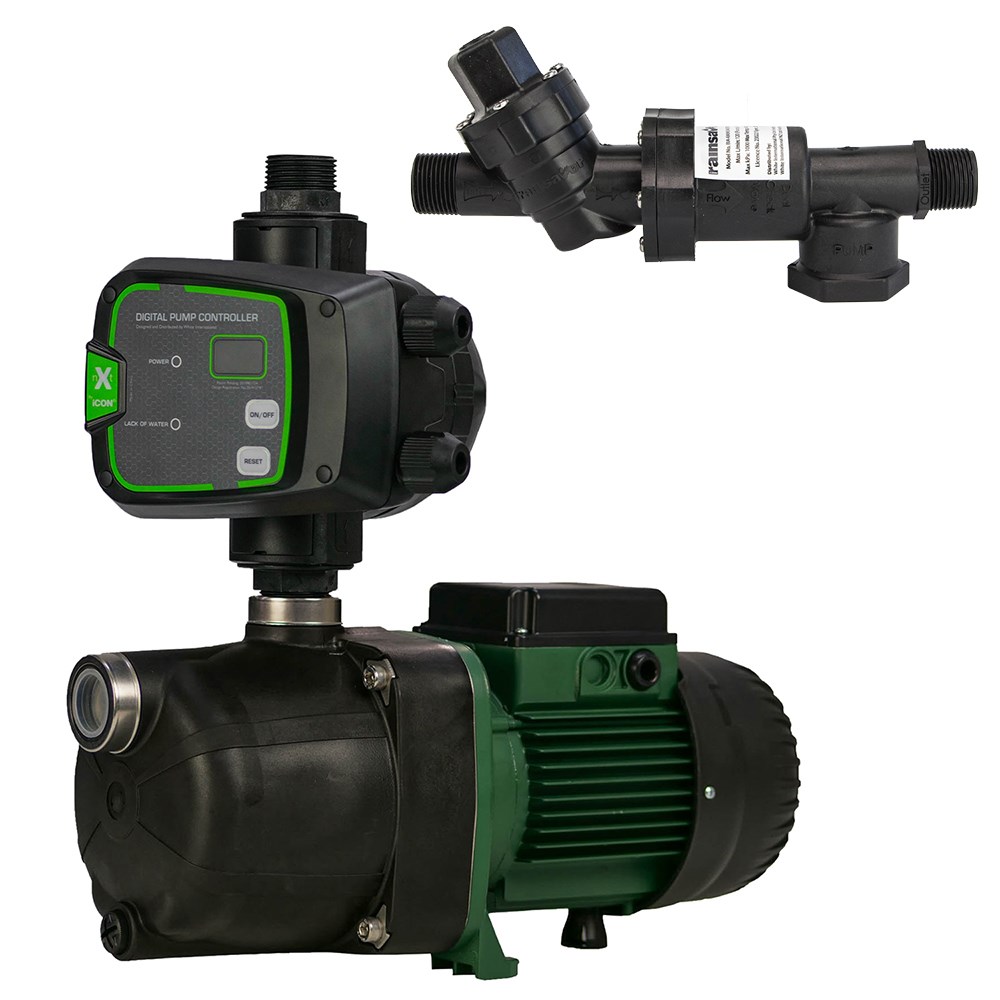

Rainsaver MK6 and DAB-JET82NXT 600W Electronic Self Priming Pump with Auto Restart

6 taps, 47m hd, 60L/m

  • Proven components
  • Requires no power supply and consumes no electrical energy
  • Designed to operate with pumps and mains up to 1000 kPa (145 psi)
  • Pump flows to 105 l/m, mains flows to 40 l/m (at 500kPa mains)
  • Designed to further save water resources by reducing incoming mains to 200 kPa
  • Requires no weather proofing
  • Can be mounted any distance from the pump underground or inside a tank
  • UV stabilised technopolymer for long life and good looks
  • All Rainsaver MK6 pumps are independently controlled to regulate flows and pressures whilst protecting the pump against voltage fluctuations, loss of water and incorporate a 24 hour automatic pump restart
  • WaterMark approved components for connection to all Town Water supplies. Safe against water borne bacteria, dezincification and lead poisoning Australian owned and designed
Control Features

Control Features:

  • Proven components
  • Requires no power supply and consumes no electrical energy
  • Designed to operate with pumps and mains up to 1000 kPa (145 psi)
  • Pump flows to 105 l/m, mains flows to 40 l/m (at 500kPa mains)
  • Designed to further save water resources by reducing incoming mains to 200 kPa
  • Requires no weather proofing
  • Can be mounted any distance from the pump underground or inside a tank
  • Completely waterproof - Can be hosed down without the fear of electrocution
  • UV stabilised technopolymer for long life and good looks
  • All Rainsaver MK6 pumps are independently controlled to regulate flows and pressures whilst protecting the pump against voltage fluctuations, loss of water and incorporate a 24 hour automatic pump restart
  • WaterMark approved components for connection to all Town Water supplies. Safe against water borne bacteria, dezincification and lead poisoning
  • No unsightly controller power, water level float cables or the need for a dedicated controller power point
  • Australian owned and designed

Warranty

2 Year Rainsaver MK6 Warranty

Approvals
WaterMark Approved

WATERMARK APPROVAL - ATS 5200.477:2006.

The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.

The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.

Read more about WaterMark Approvals

Notes

Pressure Systems calculated at 10 L/m

RAINSAVER MK6 - Not for sale seperately
* Warranty Service is provided at the nearest authorised service agent

Controller

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.



Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Flow Curve


Controller Brochure
View Brochure


nXt Controller Data
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) -
1 ¼” Union Kit
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
702109
DABSR00004187
702163
DABSR00010751
702175
DABS R00005129
702079
DABSR00008871 12.5UF
702077
DABSR00004002
702108
DABSR00004183
702084
DABSR00004017
702185
DABSR00005146
702197
DABSR00005172
702085
DABSR00004018
702157
DABSR00005106
702119
DABS R00009575
702083
DABSR00004016
702195
DABSR00005170
