ClayTech AQUASAVER 3 - 1 Inch AcquaSaver Rainwater to Mains Water Diversion Valve

Code: 807703

Print
Product Code
CLA ACQUASAVER 3
RRP: $605.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand AcquaSaver
Product Type Rain Harvesting Kit
Suitable For Clean Water
Pack Weight (KG):
1.60
Description

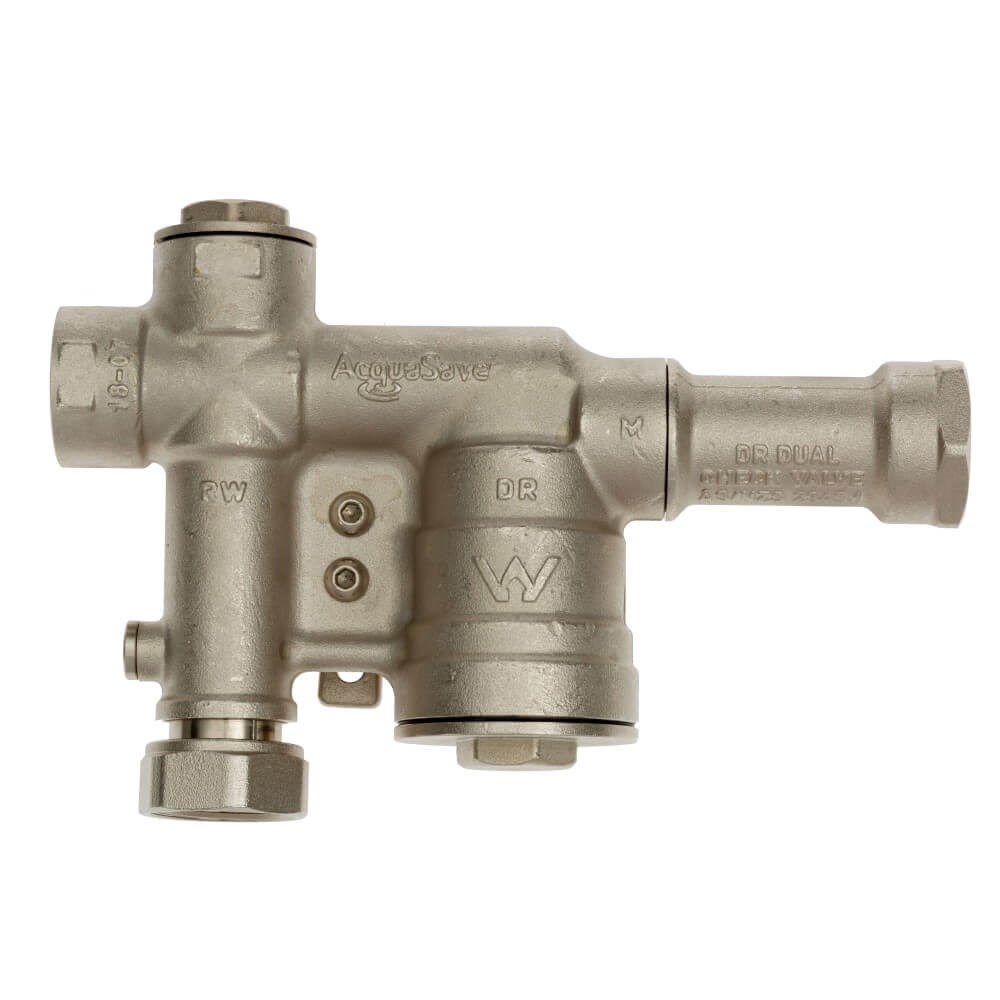

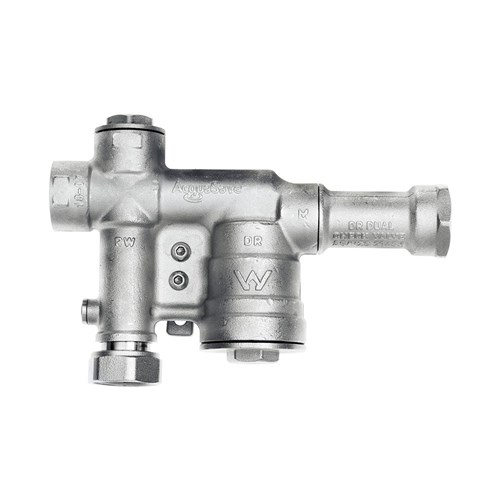

AcquaSaver Water Diversion Valve - 1 Inch

Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves. Prioritise the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.

Features

The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.

  • Watermark approved
  • Does not require regular maintenance
  • No electrical consumption - No electronic components
  • Solid brass construction - Fully weatherproof - Built to last
  • Suitable for any pressure pump with sufficient head pressure
  • Can be mounted in any position
  • Built-in dual check valve for backflow prevention
  • 2 Year warranty
Operation

The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure

When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.

The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to mains position.

The pump controller starts and stops the pump when it detects a demand - for example flushing a toilet or using a washing machine.

The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.



1 Inch AcquaSaver - A3 Technical Data
Acquasaver Max Mains Pressure1000Kpa
Acquasaver Max Pump Pressure350Kpa
Acquasaver Max Flow Rate100 l/min
Acquasaver Outlet & inlets1"
