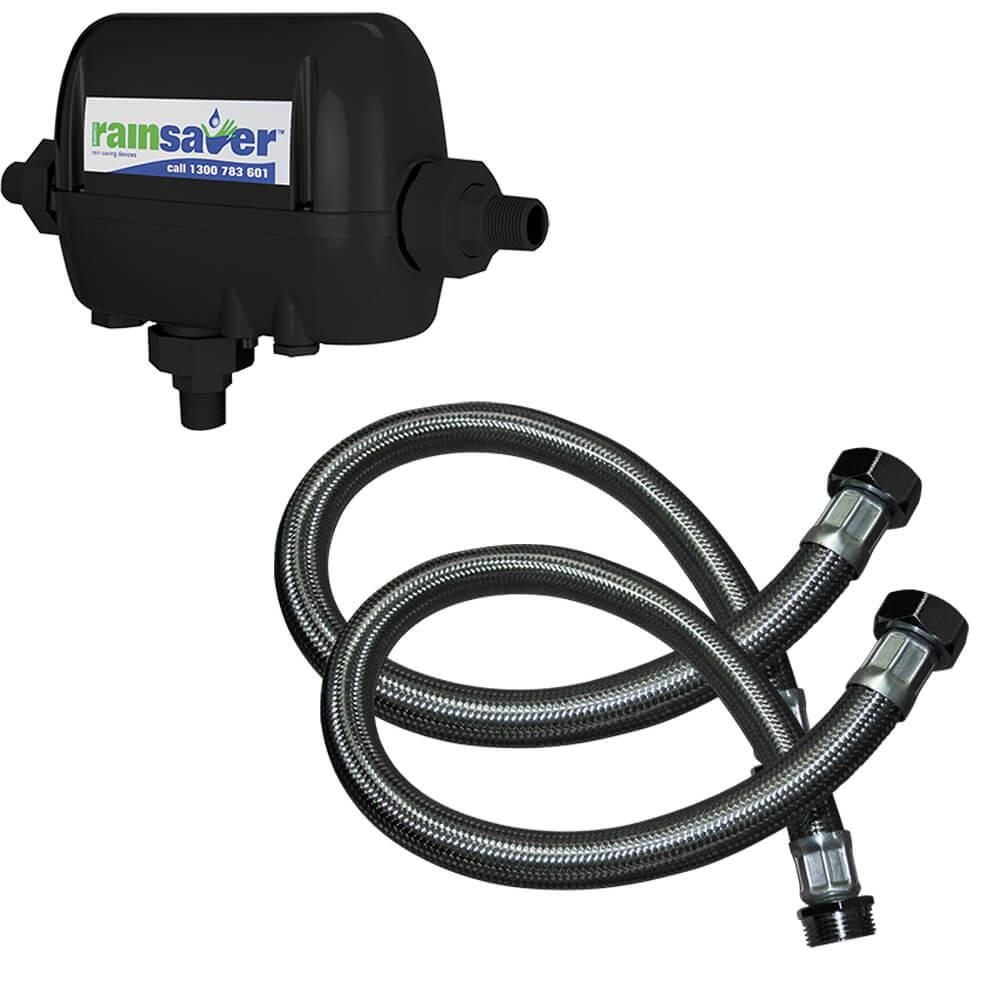

BIA-RAINSAVERMK4E-P - Rainsaver MK4E with 2 x WaterMark Stainless Steel Connection Kits

Code: 805430

Print
Product Code
BIA-RAINSAVERMK4E-P
RRP: $735.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Bianco Rainsaver
Suitable For Clean Water
Bar 8 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 100 L/min
Float Float Included
Hp 1.5 Hp
Kilo Watts 1.1 kW
Head Range Category c. 60 - 99 m
Max Head (m) 80 m
Port Size Outlet 3/4" BSPM outlet
Powered Electric
Taps 10 Taps
Warranty (months) 24 Months
Watts 1100 W
Pack Weight (KG):
3.40
Description
1 x Rainsaver MK4E
Designed to operate with pumps up to 800kPa. 100L/m flow. 12V Low voltage Float.

2 x WaterMark Stainless Steel Connection Kits
3/4” FF x 600mm
Features

Bianco Rainsaver MK4E

  • Rainsaver MK4E Changeover Device.
  • 2 Year Rainsaver MK4E Infield Warranty
  • Designed to operate with pumps up to 800kPa.
  • 100L/m flow.
  • 12V Low voltage Float.
  • WaterMark approved for connection to all town water supplies.
  • Aesthetically designed and requires no weather proofing.
  • IP33
  • For self controlled pumps up to 1.5hp, 1.1kW, 240V.

Stainless Steel Braided Connection Kits

3/4” FF x 600mm Watermarked

Includes nuts, bolts, washers, thread tape and instruction sheet for mounting pumps onto horizontal pressure tanks. Some dealer supplied fittings may be required for some pressure systems. Maximum working pressure 6 bar for higher pressures, rigid pipework is recommended.

Control Features
  • Rainsaver MK4E Changeover Device.
  • 2 Year Rainsaver MK4E Infield Warranty
  • 12V Low voltage Float.
  • WaterMark approved for connection to all town water supplies.
  • Aesthetically designed and requires no weather proofing.
  • IP33

Notes

Pressure Systems calculated at 10 L/m

Warranty

2 Year Rainsaver MK4E Infield Warranty



Approvals

WaterMark Approved

WATERMARK APPROVAL - ATS 5200.477:2006.

The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.

The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.

Read more about WaterMark Approvals
