RS6-INOX90S2MPCX RAINSAVERMK6 PUMP KIT CLEAN WATER DOMESTIC 68L/MIN 46M 600W 240V

Order Code: 804716

Print
Product Code
RS6 INOX90S2MPCX
RRP: $1540.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco Rainsaver
Product Type Rain Harvesting Kit
Suitable For Clean Water
Bar 4.6 Bar
Amps 6.0 Amps
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 68 L/min
Float Float Not Included
Hp 1.0 Hp
Kilo Watts 0.75 kW
Head Range Category b. 40 - 59 m
Max Head (m) 46 m
Port Size Inlet 3/4" Rainsaver
Port Size Outlet 3/4" Rainsaver
Powered Electric
Taps 6 Taps
Volts 240 V
Warranty (months) 24 Months
Pack Weight (KG):
0.00
Description

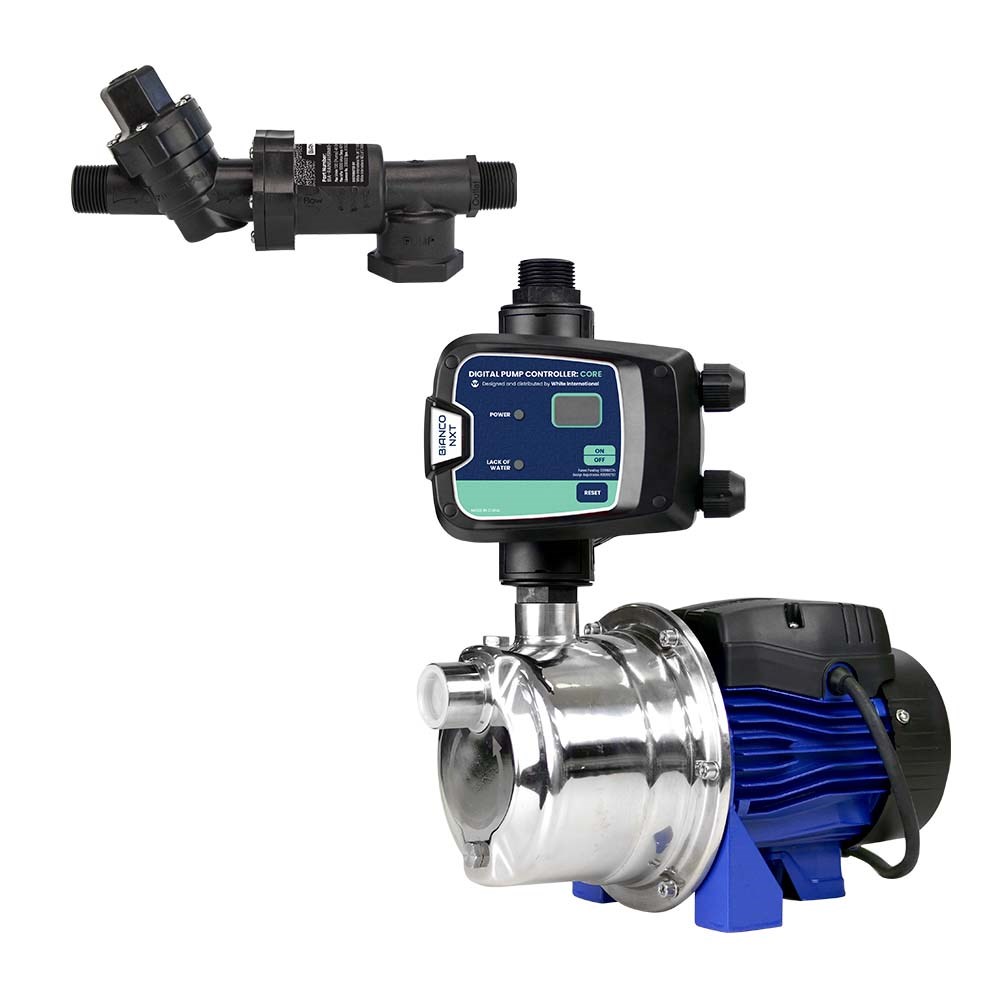

Rainsaver MK6 & BIA-INOX90S2MPCX

Stainless Steel 750W Electronic Self Priming Pump with Auto Restart

6 taps, 460kPa, 68L/m

2 Year Rainsaver MK6 Warranty*

Supplied as a kit for assembly.

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Product Brochures
Download Brochures v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Certificates & Compliance Information
Download Certificates & Compliance Information v1.0
Control Features

Control Features:

  • Proven components
  • Requires no power supply and consumes no electrical energy
  • Designed to operate with pumps and mains up to 1000 kPa (145 psi)
  • Pump flows to 105 l/m, mains flows to 40 l/m (at 500kPa mains)
  • Designed to further save water resources by reducing incoming mains to 200 kPa
  • Requires no weather proofing
  • Can be mounted any distance from the pump underground or inside a tank
  • Completely waterproof - Can be hosed down without the fear of electrocution
  • UV stabilised technopolymer for long life and good looks
  • All Rainsaver MK6 pumps are independently controlled to regulate flows and pressures whilst protecting the pump against voltage fluctuations, loss of water and incorporate a 24 hour automatic pump restart
  • WaterMark approved components for connection to all Town Water supplies. Safe against water borne bacteria, dezincification and lead poisoning
  • No unsightly controller power, water level float cables or the need for a dedicated controller power point
  • Australian owned and designed

Warranty

2 Year Rainsaver MK6 Warranty

Approvals
WaterMark Approved

WATERMARK APPROVAL - ATS 5200.477:2006.

The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.

The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.

Read more about WaterMark Approvals

Notes

Pressure Systems calculated at 10 L/m

RAINSAVER MK6 - Not for sale seperately
* Warranty Service is provided at the nearest authorised service agent

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
