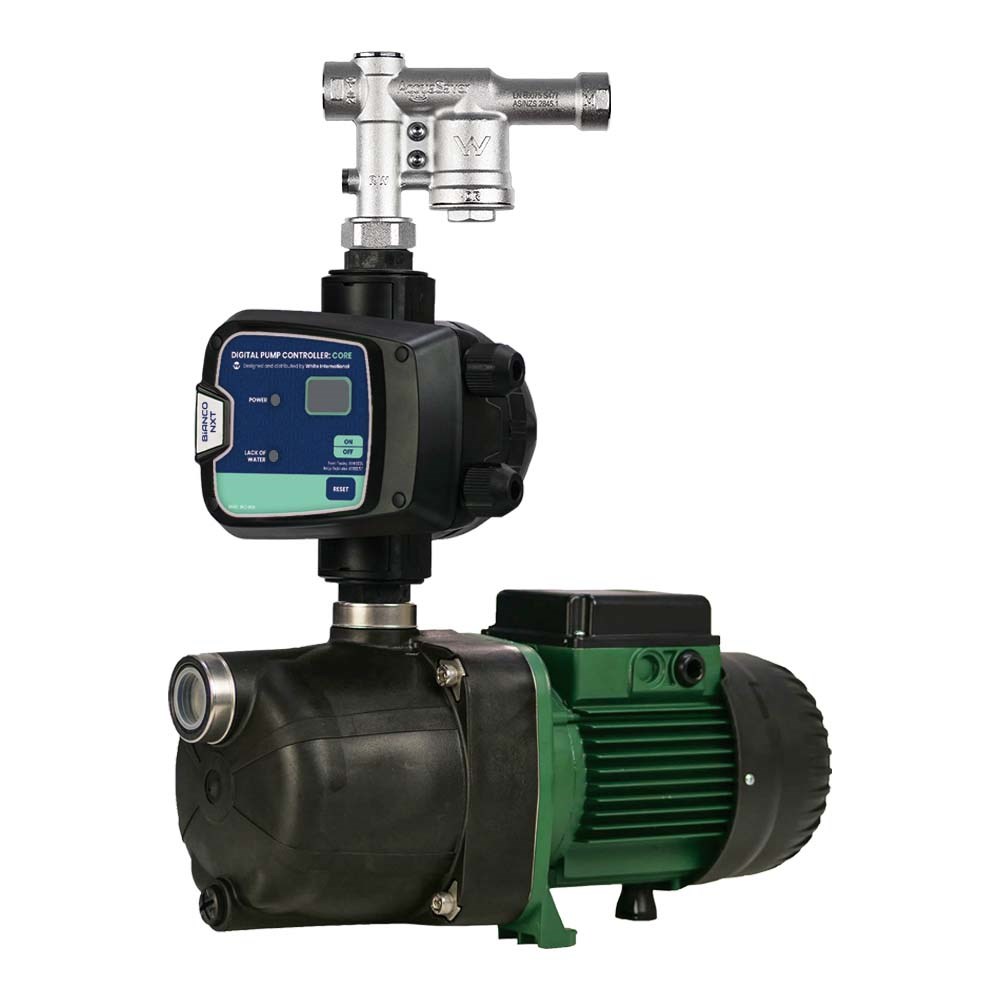

A2-JETCOM82NXT - TechnopolymerSurface Mounted with nXt Controller with 3/4" AcquaSaver Device Kit

Code: 808468

Print
Product Code
A2 JETCOM82NXT
RRP: $966.90

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.6 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 0.8HP
kPa 476kpa
Kilo Watts 0.6 kW
Head Range Category b. 40 - 59 m
Max Head (m) 47m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 6 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 600 W
Pack Weight (KG):
0.00
Description
Acquasaver ¾" and DAB-JET82NXT 450W Electronic Self Priming Pump with Auto Restart

6 taps, 47m hd, 60L/m

2 Year Rainsaver MK4E Infield Warranty

AS/NZS4020 Approved for Drinking Water

AcquaSaver Water Diversion Valve - 3/4 Inches

Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves. Prioritise the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.

The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.

  • Watermark approved
  • Does not require regular maintenance
  • No electrical consumption - No electronic components
  • Solid brass construction - Fully weatherproof - Built to last
  • Suitable for any pressure pump with sufficient head pressure
  • Can be mounted in any position
  • Built-in dual check valve for backflow prevention

How does the AcquaSaver Work?

The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure

When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.

The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to mains position.

The pump controller starts and stops the pump when it detects a demand - for example flushing a toilet or using a washing machine.

The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.

Controller

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.



Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Flow Curve


Controller Brochure
View Brochure


nXt Controller Data
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) -
1 ¼” Union Kit
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
