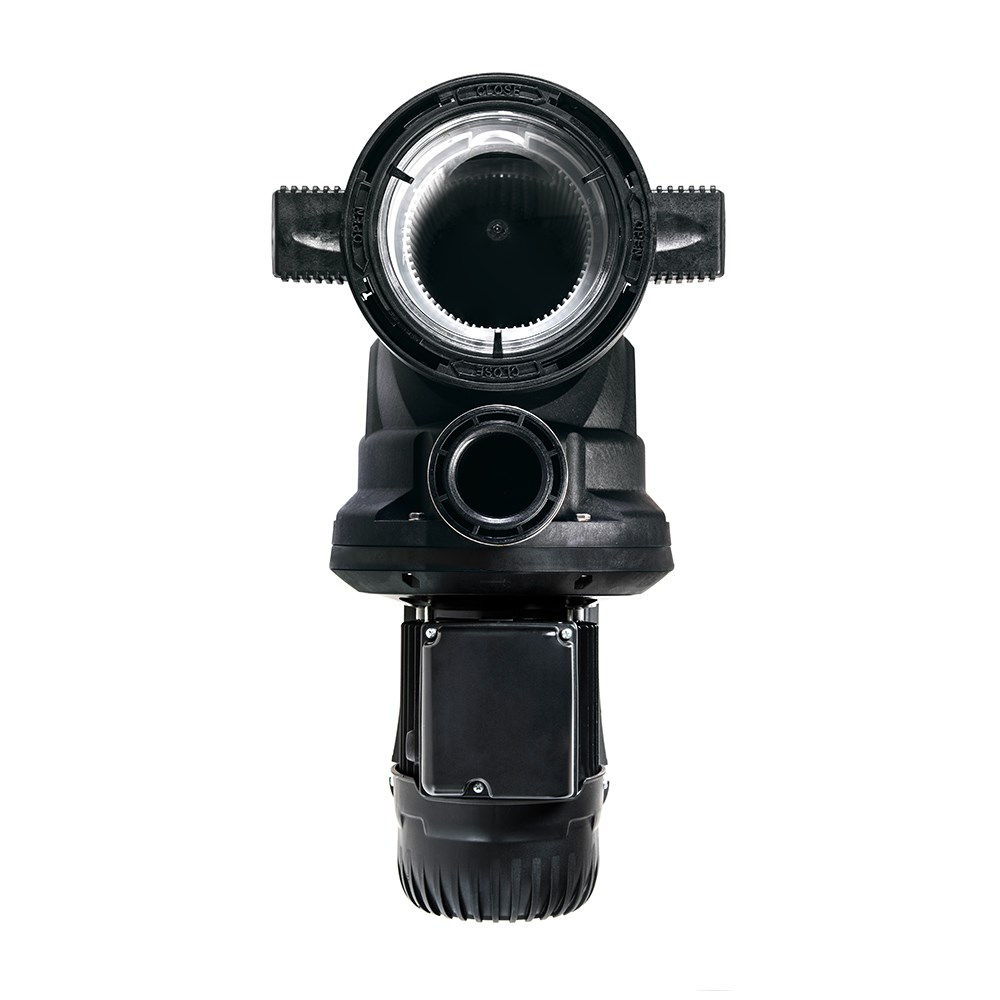

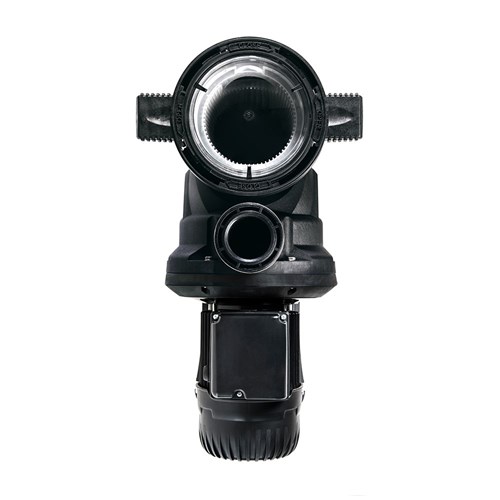

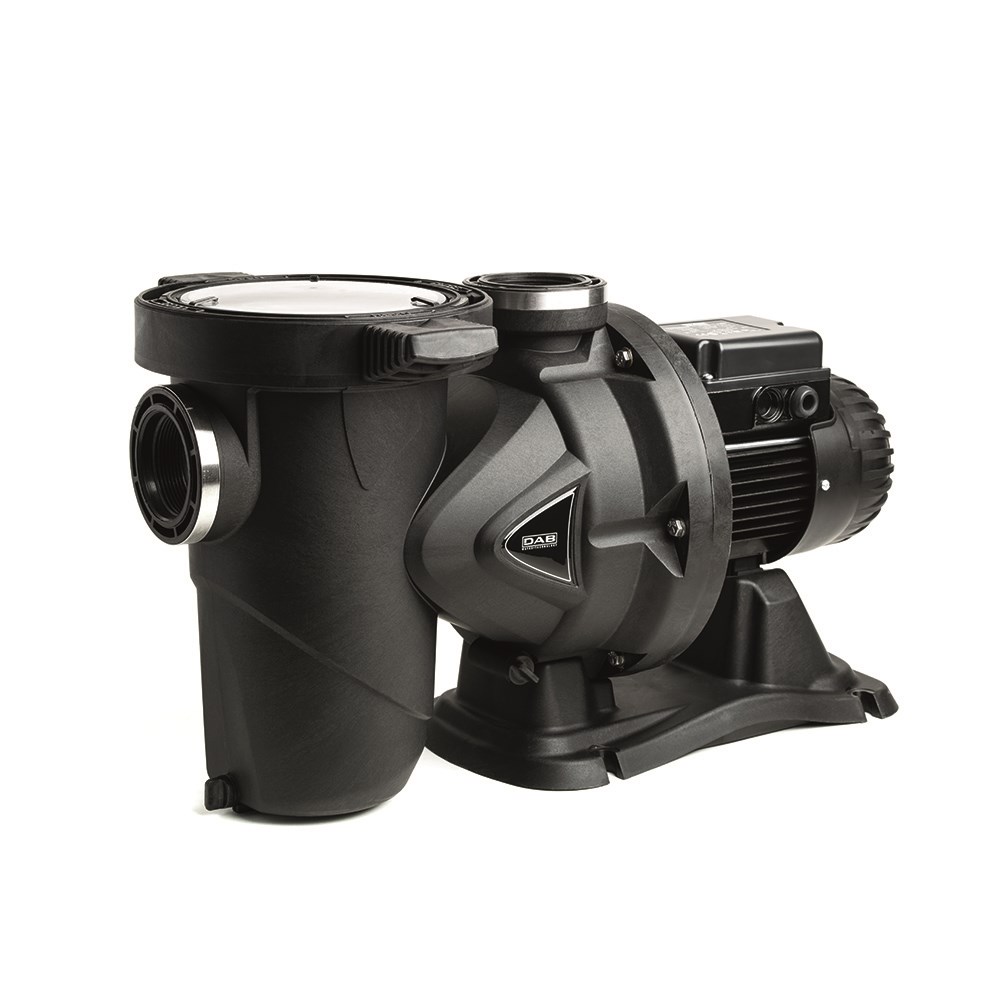

DAB-EUROSWIM150M - Pool Pump 1.1kW, 1.5hp, 240V, max hd 16.2m, max flow 500L/m

Order Code: 701550

Print
Product Code
DAB-EUROSWIM150M
RRP: $1210.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Pool Pump
Hp 1.5 Hp
Kilo Watts 1.1
Max Flow (L/min) 500
Max Head (m) 16.2
Volts 240 V
Pack Weight (KG):
22.80
Description
DAB Swimming Pool Pump
1.1kW, 1.5hp, 240V, max hd 16.2m, max flow 500L/m
Ports 2" BSPF and sockets suit DN40, DN50 PVC
Features
  • Energy Saving - high performance with low energy consumption
  • Noiseless (60 DBA) - Silent running
  • Reliability - Corrosion resistant materials for a long life even at extreme conditions
  • Easy to clean - easy-to-open transparent cover for quick cleaning of the filter

High performance self-priming centrifugal pump with built-in pre-filter for the circulation of swimming pool water (including salt water) for residential and domestic environments. Quiet and reliable.

  • Suitable for Salt Water swimming pools
  • High efficiency hydraulics
  • Highly reliable and durable components
  • Small size for easy installation

Product Brochure


Brochure


DESIGN

This innovative solution combines aesthetics with sturdy materials highly resistant to corrosion and oxidation.

HYDRAULIC COMPONENTS

All components in contact with the liquid are made in polypropylene or noryl with glass fiber High efficiency Impeller with special design to cover and protect motor shaft against corrosion (motor is completely insulate)

MOTOR

All metallic components are with surface treatment Suitable for working at high temperature environment (up to 50°C) With exhaust condensate holes Capacitor is internal in the terminal board box Water proof bearings

TERMINAL BOARD BOX

Easy and fast line connection, It is totally closed against electrical motor to avoid any accidentally solid bodies entry

LARGE PREFILTER

It has a large canister, up to 6 liters Motor (suitable up to 60°) a trasparent lid that can be removed without tools, and an internal filter easy to take out and clean.

ANTI-VIBRATION FEET

The support base guarantees stability and is equipped with rubber feet that reduce vibrations.

QUICK AND EASY CONNECTION

In & Out connection female, threaded 2” (unions included).

DAB EURO Swim Preformance Graph


Selection Guide
Pool Dimensions Volume of Water Flow Model
RESIDENTIAL SWIMMING POOL
8m x 4m 35,000L to 50,000L 150 L/min
8m x 4m to 10m x 5m 50,000L to 70,000L 200 L/min
10m x 5m 70,000L to 90,000L 250 L/min
11m x 6m to 12m x 6m 90,000L to 110,000L 300 L/min
POOL WITH IN-FLOOR CLEANING AND POOL/SPA JETS
8m x 4m 35,000 to 50,000 150 L/min
8m x 4m to 10m x 5m 50,000 to 70,000 200 L/min
10m x 5m 70,000 to 90,000 250 L/min
11m x 6m to 12m x 6m 90,000 to 110,000 300 L/min
PUBLIC SWIMMING POOL
8m x 4m 35,000L to 50,000L 233 L/min
8m x 4m to 10m x 5m 50,000L to 70,000L 400 L/min
10m x 5m to 12m x 5m 70,000L to 90,000L 500 L/min
11m x 6m to 12m x 6m 90,000L to 110,000L 667 L/min

*Times for complete recirculation of water within 6 hours for private pool and 2/3 hours for public pool

DAB EURO Swim Preformance Graph
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
