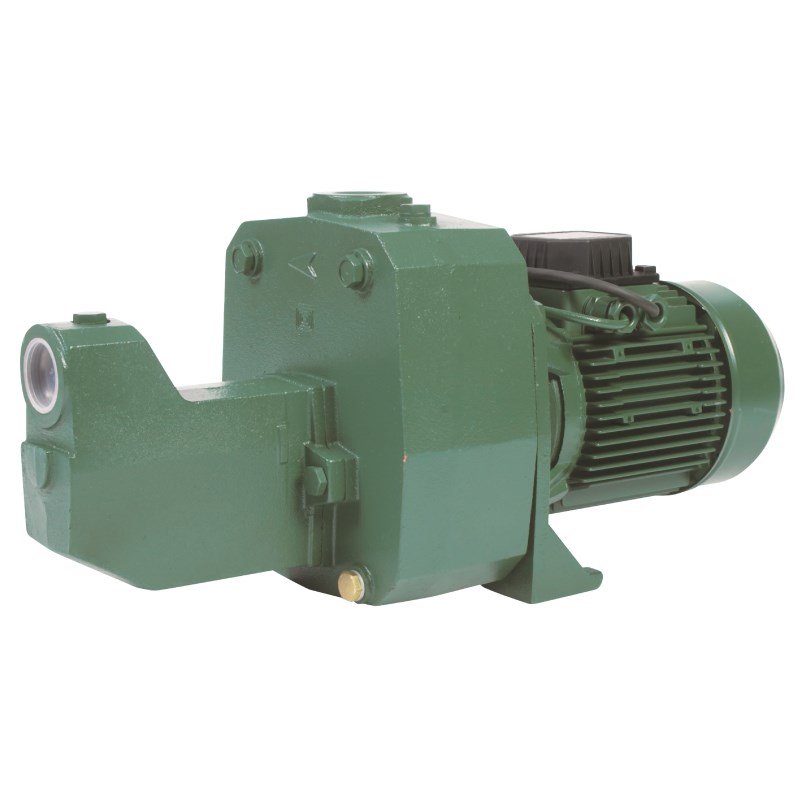

DAB-251T - PUMP SURFACE MOUNTED CAST IRON 120L/MIN 62M 1.85KW 415V

Code: 701405

Print
Product Code
DAB-251T
RRP: $1270.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Product Type Multistage Jet Pump
Brand DAB Pumps
Suitable For Tank Transfer
Bar 6.2 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120 L/min
Hp 2.5 Hp
kPa 628 kPa
Kilo Watts 1.85 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Head (max) 62 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 415 V
Warranty (months) 24 Months
Watts 1850 W
Pack Weight
30.68
Description
Self Priming Multistage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.85kW, 2.5hp, 415V, max hd 62m, max flow 120L/m Ports 1 1/4” BSPF In, 1" BSPF Out
3 phase pumps require contactor and overload.

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.
