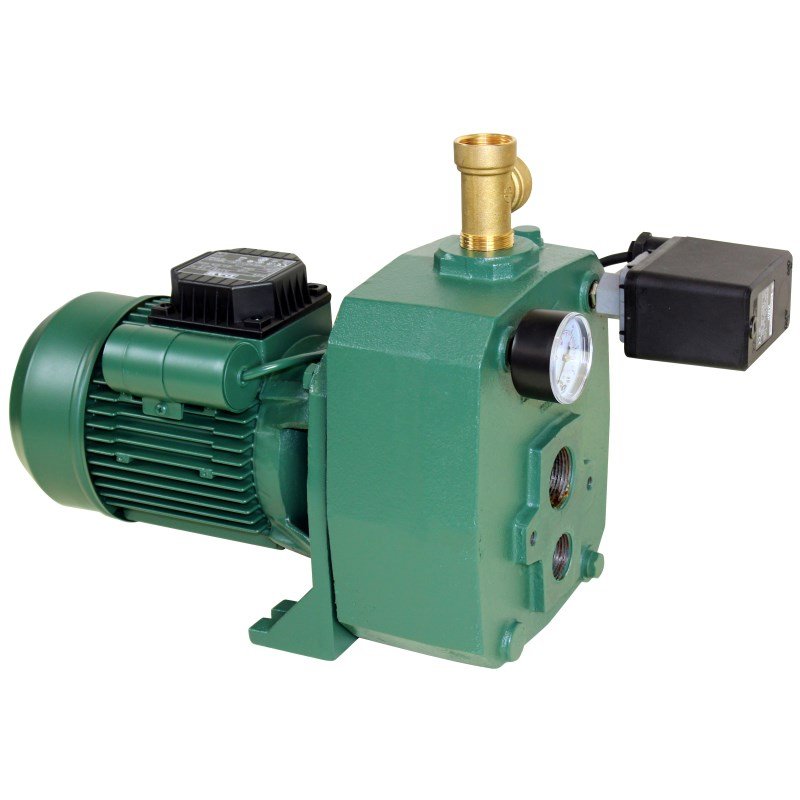

DAB-DP251MP - PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 72L/MIN 70M 1.85KW 240V

Order Code: 701511

Print
Product Code
DAB-DP251MP
RRP: $2090.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Jet Pressure System
Suitable For Tank Transfer
Bar 7 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 72 L/min
Hp 2.2 Hp
kPa 709 kPa
Kilo Watts 1.9 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 70 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 7 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 1850 W
Pack Weight (KG):
32.50
Description
Deep Well Multistage Cast Iron Pressure Systems

1.85kW, 2.5hp, 240V, max hd 70m, max flow 72L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Note: Deep well injector kits sold seperately

Warranty

2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

You may also need these:

Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702222
DABSR00005230 40UF CABLE
DABS R00005230 - 40UF CABLE CAPACITOR DP251M-N.1
702231
DABSR00005244
DABS R00005244 - FRONT BEARING
702240
DABSR00005254
DABS R00005254 - Impeller Kit,includes 2 Impellers, Diffuser, O-ring, Key, Impeller Nut & Spacer
702242
DABSR00005256
DABS R00005256 VENTURI JET251M-N.1
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702235
DABSR00005249
INJECTOR BODY
702238
DABSR00005252
JET251M-N.1
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702224
DABSR00005232
MOTOR COVER DP251M-N.1
702239
DABSR00005253
NUTS AND BOLTS JET251M-N.1
702236
DABSR00005250
PLUG JET151M-N.3
702252
DABSR00005274
PUMP BODY DP-M-N.3
702677
DABSR00007849
SEAL DP-M
702227
DABSR00005240
SUPPORT JET-DP-M-N.3
702226
DABSR00005234
TERMINAL BOARD JET251M-N.1
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
