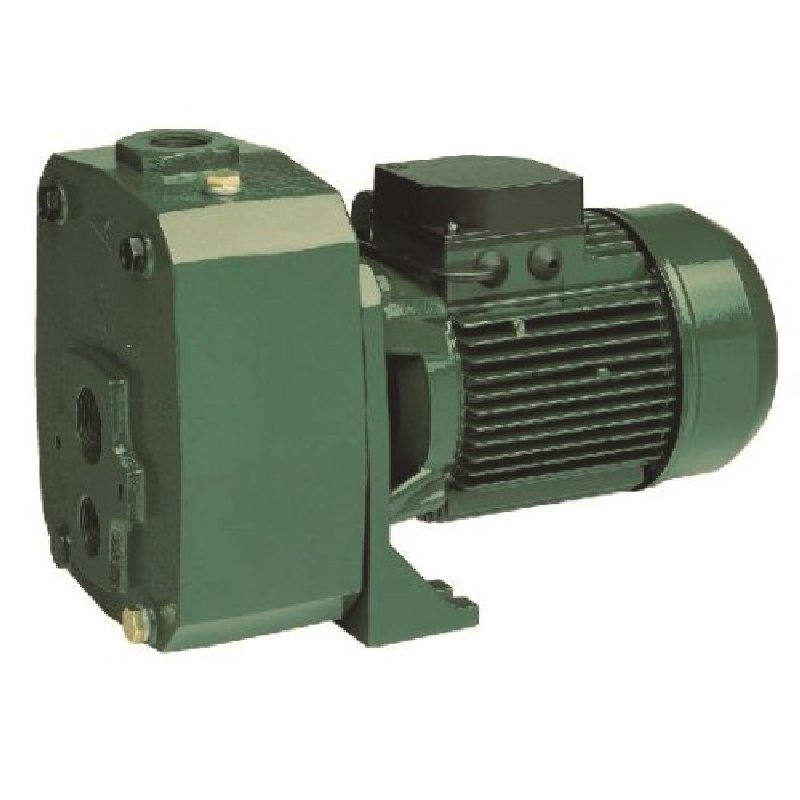

DAB-DP251M - PUMP SURFACE MOUNTED DEEP WELL 72L/MIN 70M 1.85KW 240V

Order Code: 701510

Print
Product Code
DAB-DP251M
RRP: $1870.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Multistage Jet Pump
Suitable For Tank Transfer
Bar 7 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 72 L/min
Hp 2.5 Hp
kPa 709 kPa
Kilo Watts 1.9 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 70 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 7 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 1850 W
Pack Weight (KG):
32.00
Description
Self Priming Multistage Jet Assisted Cast Iron Jet Pumps

For use in supplying water to farmhouses and in small scale agriculture.

1.85kW, 2.5hp, 240V, max hd 70m, max flow 72L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Note: Deep well injector kits sold seperately

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
