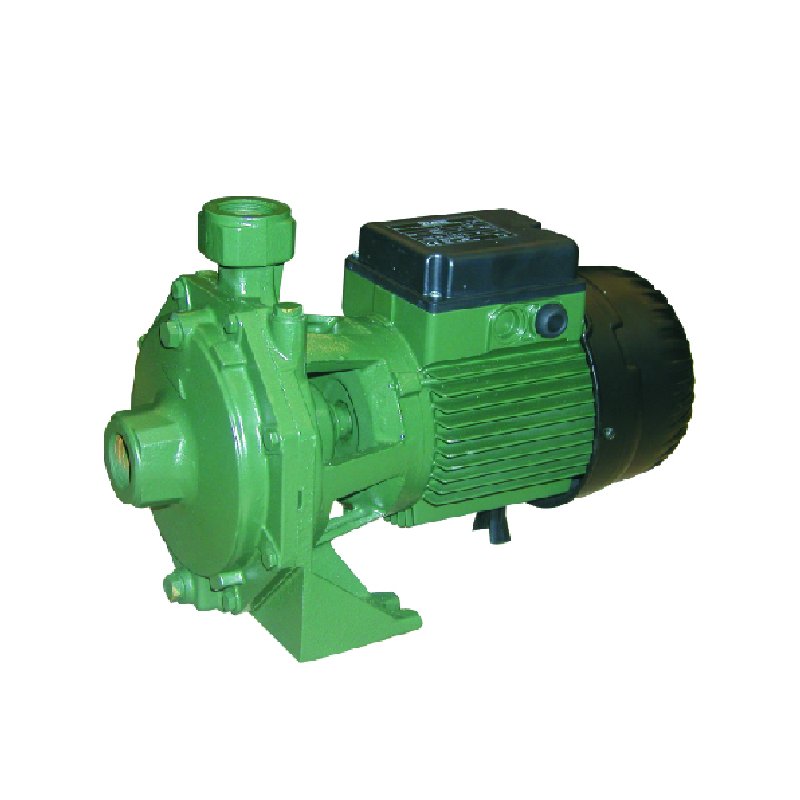

DAB-K55-50M - PUMP SURFACE MOUNTED CENTRIFUGAL TWIN IMPELLER 110L/MIN 62M 1.85KW 240V

Order Code: 701634

Print
Product Code
DAB-K55-50M
RRP: $2200.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Impeller Cast Iron Pump
Suitable For Water Transfer
Bar 6.2 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 110 L/min
Hp 2.5 Hp
kPa 628 kPa
Kilo Watts 1.85 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 62 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 240 V
Watts 1850 W
Pack Weight (KG):
28.00
Description
Twin Impeller Centrifugal PumpsIdeal for rivers, tanks, dams and water transfer applications.

1.85kW, 2.5hp, 240V, 2 pole, max hd 62m, max flow 110L/m, Ports 1 1/4” BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702222
DABSR00005230 40UF CABLE
DABS R00005230 - 40UF CABLE CAPACITOR DP251M-N.1
702231
DABSR00005244
DABS R00005244 - FRONT BEARING
702431
DABSR00005638
DABS R00005638 - 2 Impellers, includes Diffuser, Key, Nut tosuit DAB K55-50
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702224
DABSR00005232
MOTOR COVER DP251M-N.1
