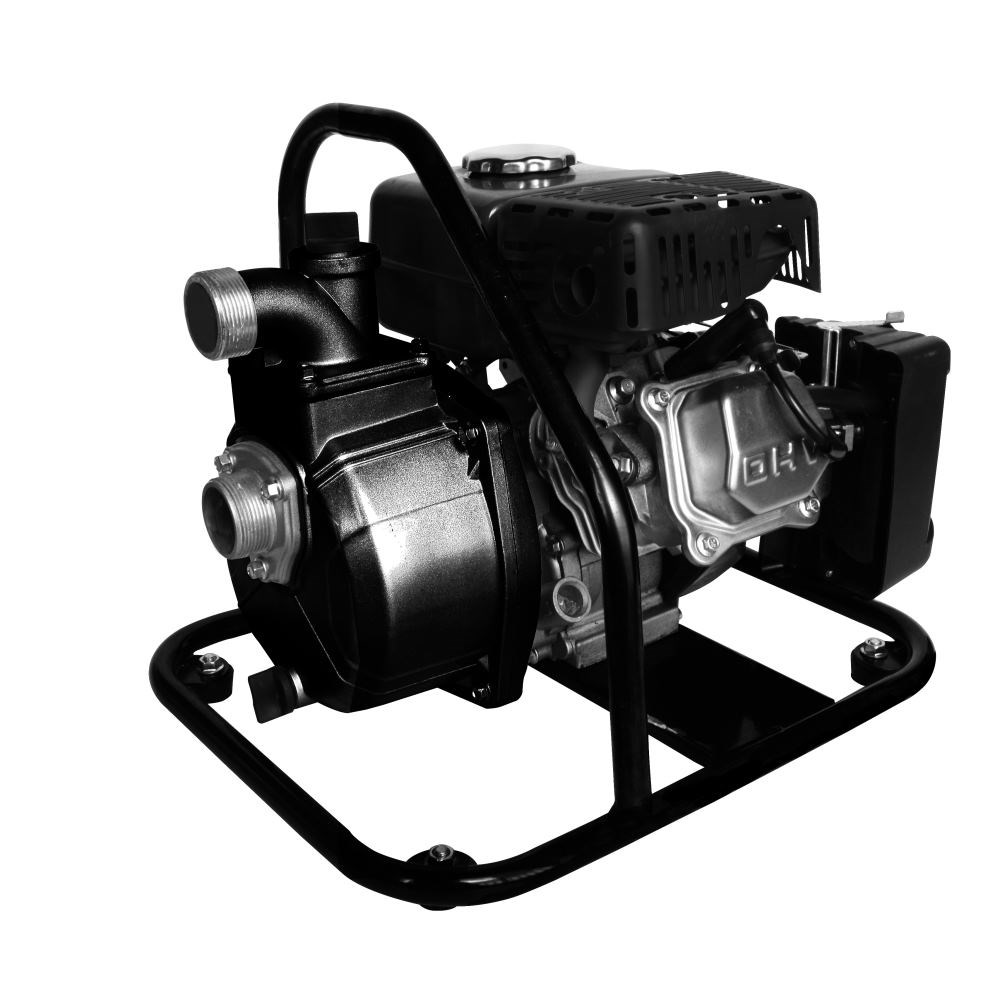

BIA-WP15A - Bianco Vulcan 3.0HP Engine Driven Compact Portable Pump

Order Code: 804449

Print
Product Code
BIA-WP15A
RRP: $880.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Bianco Pumpz
Product Type Engine Driven Pump
Suitable For Water Transfer
Fuel Petrol
Hp 3.0
Max Flow (L/min) 300
Max Head (m) 25
Port Size Outlet 1-1/2" BSPM
Warranty (months) 24 Months
Pack Weight (KG):
17.50
Description

3.0HP Compact Portable Pumps

  • Custom Built Frame
  • Spark Arrester
  • Full Serviceability
  • Single cylinder, 4 stroke, forced air cooled, OHV engine
  • Heads to 25 metres
  • Flows to 300 l/min
  • Suction to 8m
  • 1 x 1.5” BSP male discharge ports
  • 1 x 1.5” BSP male suction port

Applications

  • Dust Suppression
  • Water Transfer
  • Tank Filling
  • De-watering

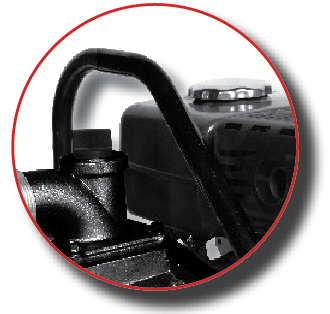

Roll Frame
Custom engineered easy access roll frame that provides ongoing protection of the pump and engine whilst being fully accessible for ease of servicing.

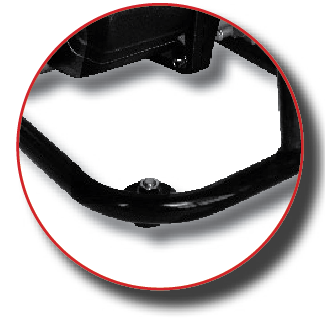

Rubber Mounting Feet
Integrated rubber mounting feet pre fitted to the frame reducing vibration and movement during operation.

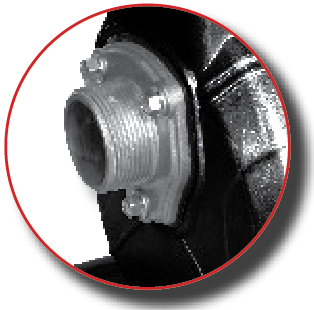

Discharge Port
1 x 1½” BSP male discharge port

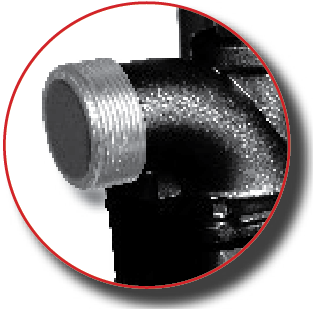

Suction Port
1 x 1½” BSP male suction port

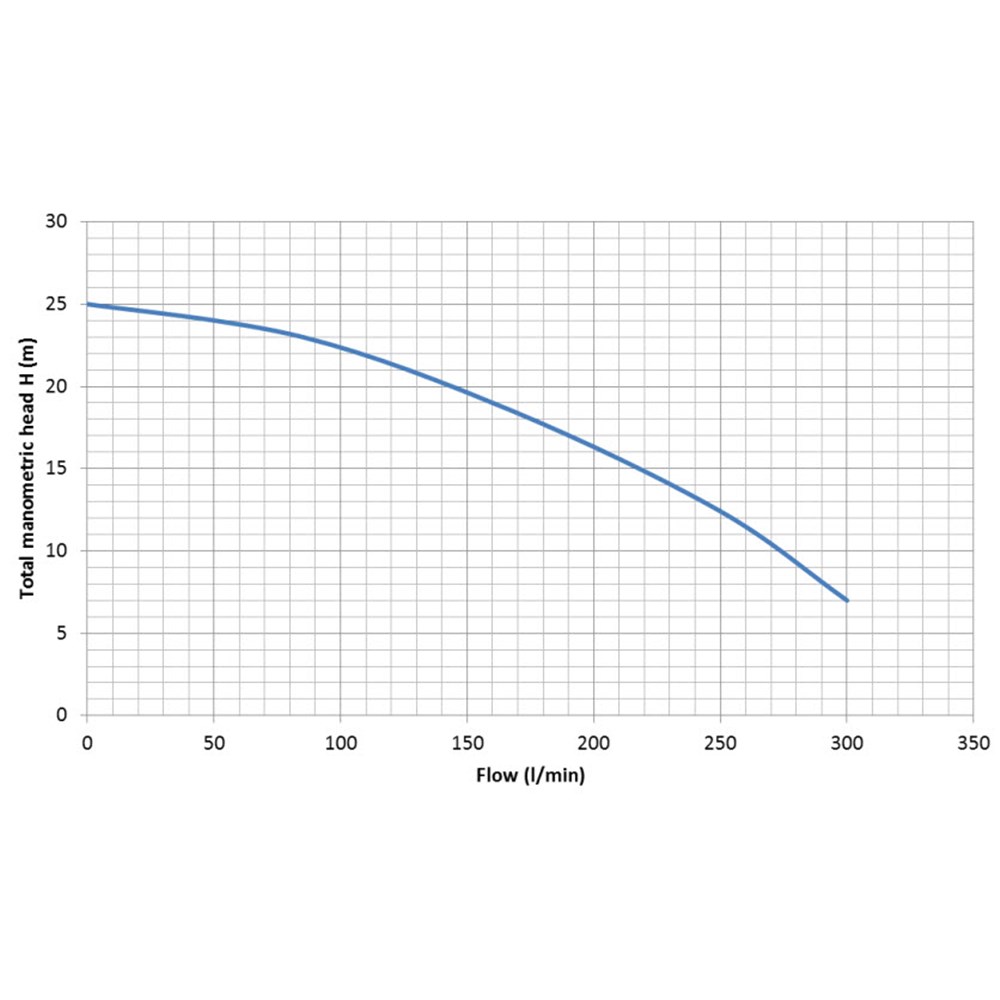

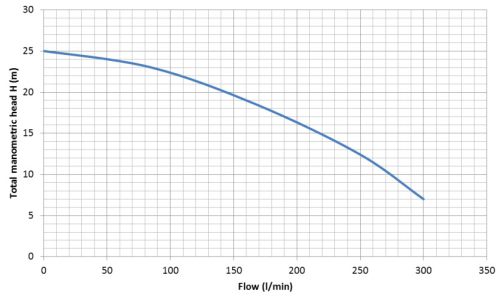

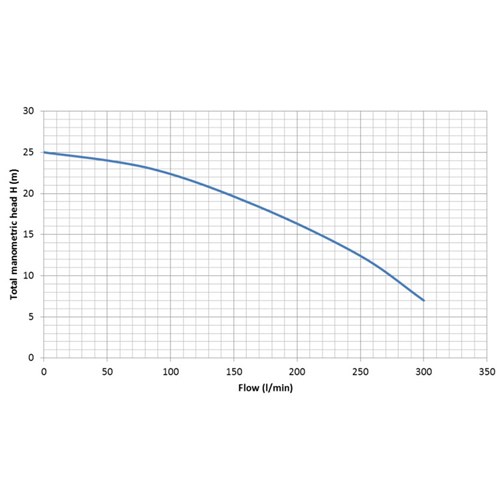

Performance

Product Range Brochure
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

Similar Products

Spare Parts
Code
Part Number
Description
804546
BIA-HP15ABS-11
BIA HP15ABS 11 MECHANICAL SEAL BIA-HP15ABS-11
