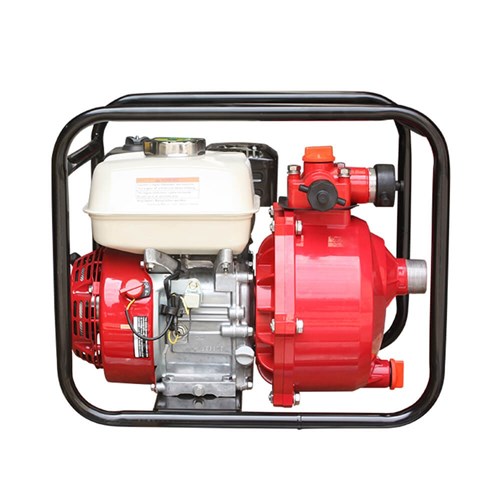

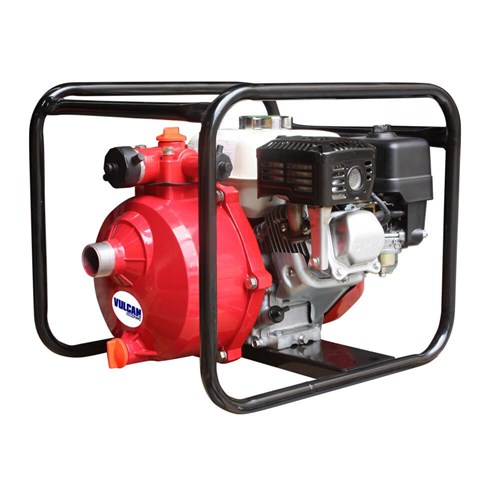

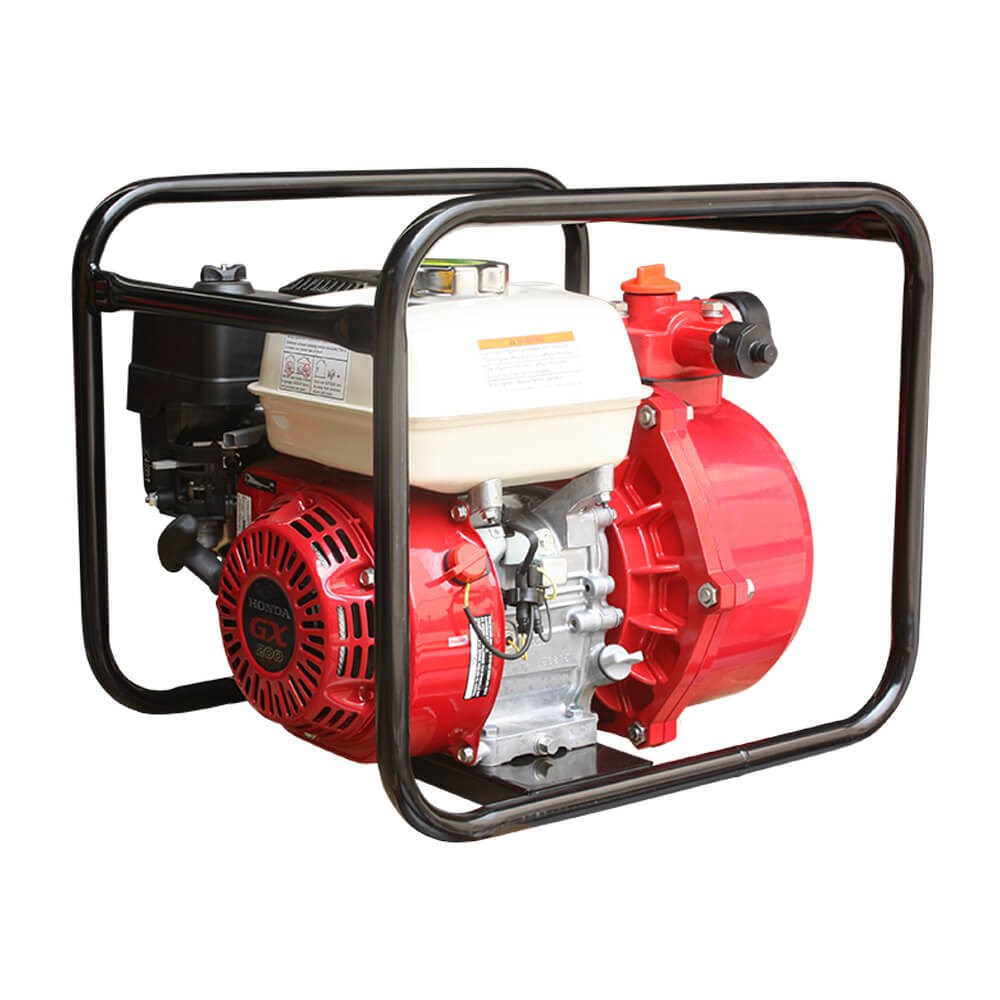

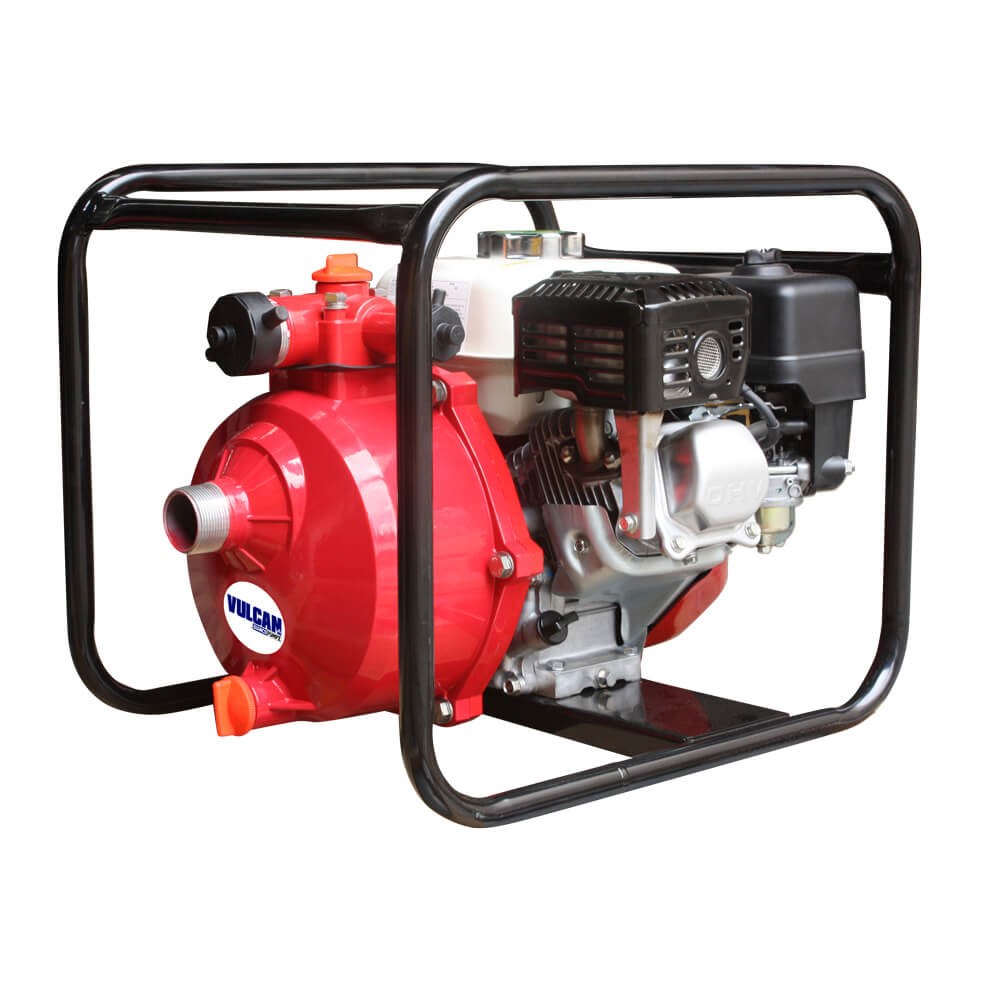

BIA-MH215SHP - Bianco Vulcan Engine Driven Fire Pump - Powered by Honda GX200

Code: 809994

Print
Product Code
BIA-MH215SHP
RRP: $2750.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Bianco Pumpz
Product Type Engine Driven Pump
Suitable For Water Transfer
Fuel Petrol
Hp 6.5
Max Flow (L/min) 570
Max Head (m) 74.5
Port Size Outlet 1 x 1-1/2" + 2 x 1"BSPM
Pack Weight (KG):
27.00
Description
Bianco Vulcan HONDA GX200 Fire Fighting Pump

Max head 74.5m, max flow 570L/m, (GX200 Motor)
Features
  • Reliable HONDA GX200 Fire Fighting Pump
  • Single Impeller & Self Priming
  • 3.1L Fuel Tank Capacity
  • Fuel Type: Unleaded Petrol
  • High Performance Pump
  • Manufactured in Australia Using High Quality Parts
  • Applications: Fire Fighting, Water Transfer, Tank Filling & Crop Spraying
  • 2 Year Pump Parts and Labour Warranty
Product Range Brochure
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

You may also need these:

Similar Products

Spare Parts
Code
Part Number
Description
810032
BIA MH15SHP-1
BIA-MH152HP-1 PUMP BODY (BACK) BIA MH15SHP-1
810041
BIA MH15SHP-10
BIA-MH15SHP-10 SEAL B (FRONT) BIA MH15SHP-10
810042
BIA MH15SHP-11
BIA-MH15SHP-11 O�RING BIA MH15SHP-11
810043
BIA MH15SHP-12
BIA-MH15SHP-12 MECHANICAL SEAL BIA MH15SHP-12
810044
BIA MH15SHP-13
BIA-MH15SHP-13 GASKET WITH NYLON BIA MH15SHP-13
810045
BIA MH15SHP-14
BIA-MH15SHP-14 BOLT M10 X 35 WASHER & NUT BIA MH15SHP-14
810046
BIA MH15SHP-15
BIA-MH15SHP-15 BOLT M10 X 60 WASHER & NUT BIA MH15SHP-15
810047
BIA MH15SHP-16
BIA-MH15SHP-16 GASKET FOR 3-WAY OUTLET BIA MH15SHP-16
810048
BIA MH15SHP-17
BIA-MH15SHP-17 RUBBER FOOT BIA MH15SHP-17
810033
BIA MH15SHP-2
BIA-MH15SHP-2 FRONT COVER BIA MH15SHP-2
810034
BIA MH15SHP-3
BIA-MH15SHP-3 WAY OUTLET BIA MH15SHP-3
810035
BIA MH15SHP-4
BIA-MH15SHP-4 DIFFUSER (IMPELLER & HOUSING) BIA MH15SHP-4
810036
BIA MH15SHP-5
BIA-MH15SHP-5 IMPELLER BIA MH15SHP-5
810037
BIA MH15SHP-6
BIA-MH15SHP-6 COVER (BIG) BLACK BIA MH15SHP-6
810038
BIA MH15SHP-7
BIA-MH15SHP-7 COVER (SMALL) BLACK BIA MH15SHP-7
810039
BIA MH15SHP-8
BIA-MH15SHP-8 PLASTIC PLUG RED BIA MH15SHP-8
