WHI-SK10AXHS2 DSK8-1.5 X -CONTROL SK10AXHS2 AUTO RESTART 1.5BAR

Order Code: 711943

Print
Product Code
WHI-SK10AXHS2 DSK8-1.5 X
RRP: $275.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand White International
Product Type Pump Controller
Bar 10 Bar
Kilo Watts 1.5 kW
Casing Material Technopolymer
Port Size Inlet 1" BSPM Inlet
Port Size Outlet 1" BSPM outlet
Volts 240 V
Pack Weight (KG):
1.60
Description
AUTO RESTART AUTOMATIC PUMP CONTROLLER PLUG AND PLAY with round 3 pin socket and pressure gauge. 240V, 1 ph, 10A max, 1.5kW, 2.0hp, IP65, Ports 1” BSPM. Cut in pressure 1.5 bar. Min pump pressure 300kPa. 12 Month Warranty
Features

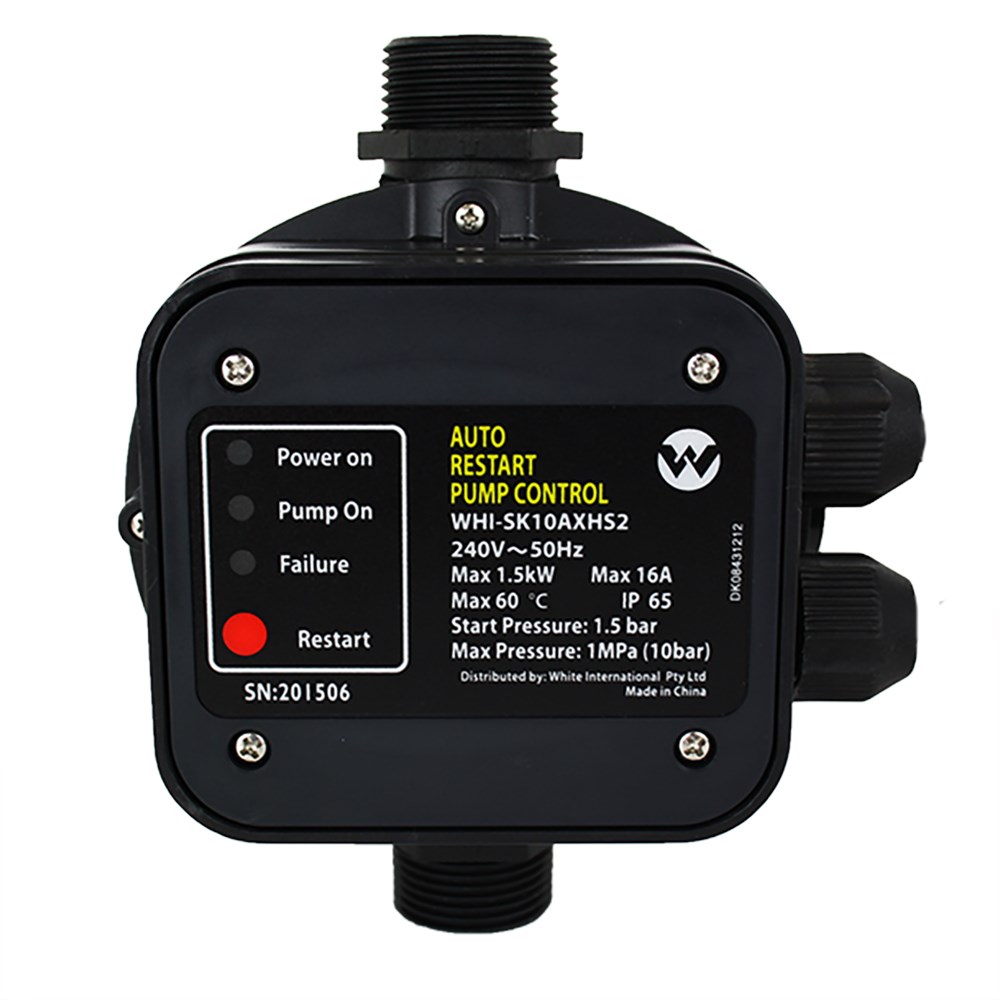

The White International WHI-SK10AXHS2 controllers are devices used to control electric 240V pumps of 1.5kW or less.

The controller monitors both the pressure and the flow. It controls the operation of the pump automatically. Because of its design, there is no need for a separate pressure (expansion) tank, nor is there any need to adjust start and stop pressures as per traditional pressure switches.

The unit will protect the pump should the water supply fail (due to blockage in the pipe or tank running dry) and will automatically restart normal operation once water is restored.

Features and Benefits
  • Starts and stops the pump automatically when the tap is open or closed. This means the pump does not need to be turned off manually.
  • Maintains a constant pressure from the pump during operation resulting in a reliable water supply.
  • Automatically stops the pump in the situation of no flow (due to inlet pump blockage) and will automatically resume normal operation once the blockage is removed.
  • Automatically restarts the pump in the event of power failure. This gives the homeowner peace of mind that the unit will continue to operate even if they are away for a long period of time.
  • The controller eliminates pressure fluctuations at flows as low as 1L/min.

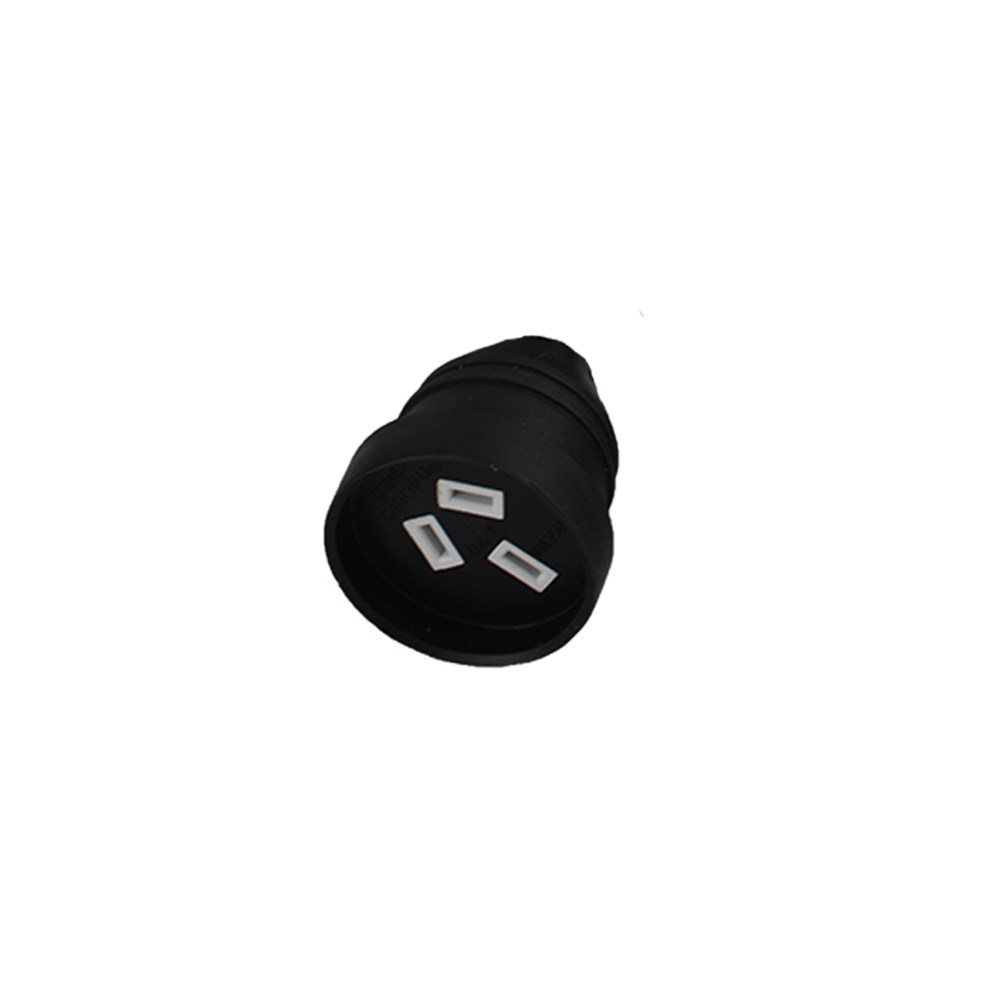

  • WHI-SK10AXHS2 comes with an approved 3 pin socket lead.

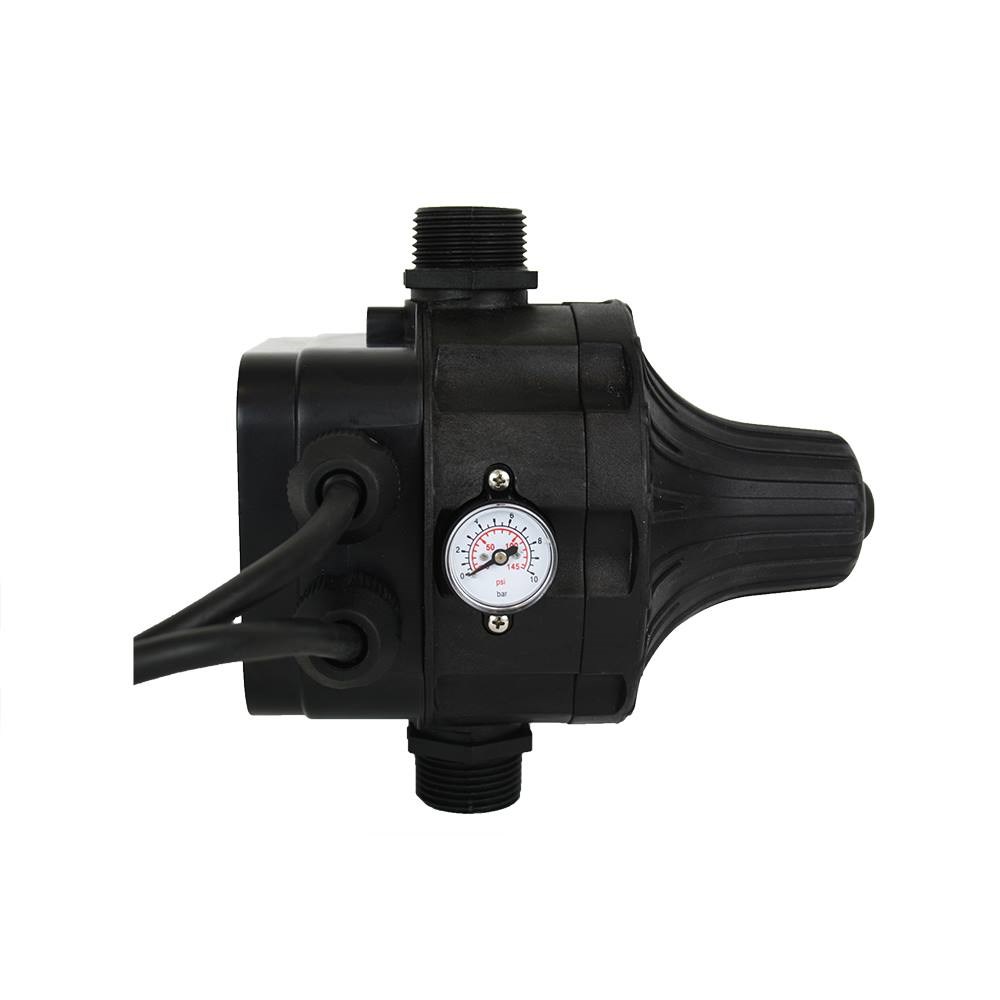

  • The controller incorporates an inbuilt pressure gauge to enable the homeowner to monitor the system pressure without the need of a separate inline pressure gauge. The pressure gauge can also diagnose nuisance upstream water.
  • Drinking water AS/NZS4020 approved in Australia and New Zealand.

Construction Characteristics
Inlet 1" BSP male
Outlet 1" BSP male
Built in non-return valve
No flow/loss of prime protection
Manual start switch (RESET)
Voltage LED (GREEN power on light)
Pump working LED (ORANGE pump on light)
No flow LED (RED failure light)
1.5 metre lead and 3 pin Australian/New Zealand plug
0.6 metre pump power lead, plug and play
Inbuilt 10 bar pressure gauge

Technical Information
Voltage 220V (-6%) / 240V (+6%)
Maximum Current 16(8) Amps
Maximum kW 1.5kW
Frequency 50Hz
Ingress Protection IP65
Maximum Water Temperature 60 deg C.
Starting Pressure 1.5 bar
Recommended Minimum Pump Pressure Required   3.0 bar
Maximum Working Pressure 10 bar
Minimum Flow 1.0 l/m
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Product Brochures
Download Brochures v1.0 Download Brochures v1.01
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Certificates & Compliance Information
Download Certificates & Compliance Information v1.0
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
