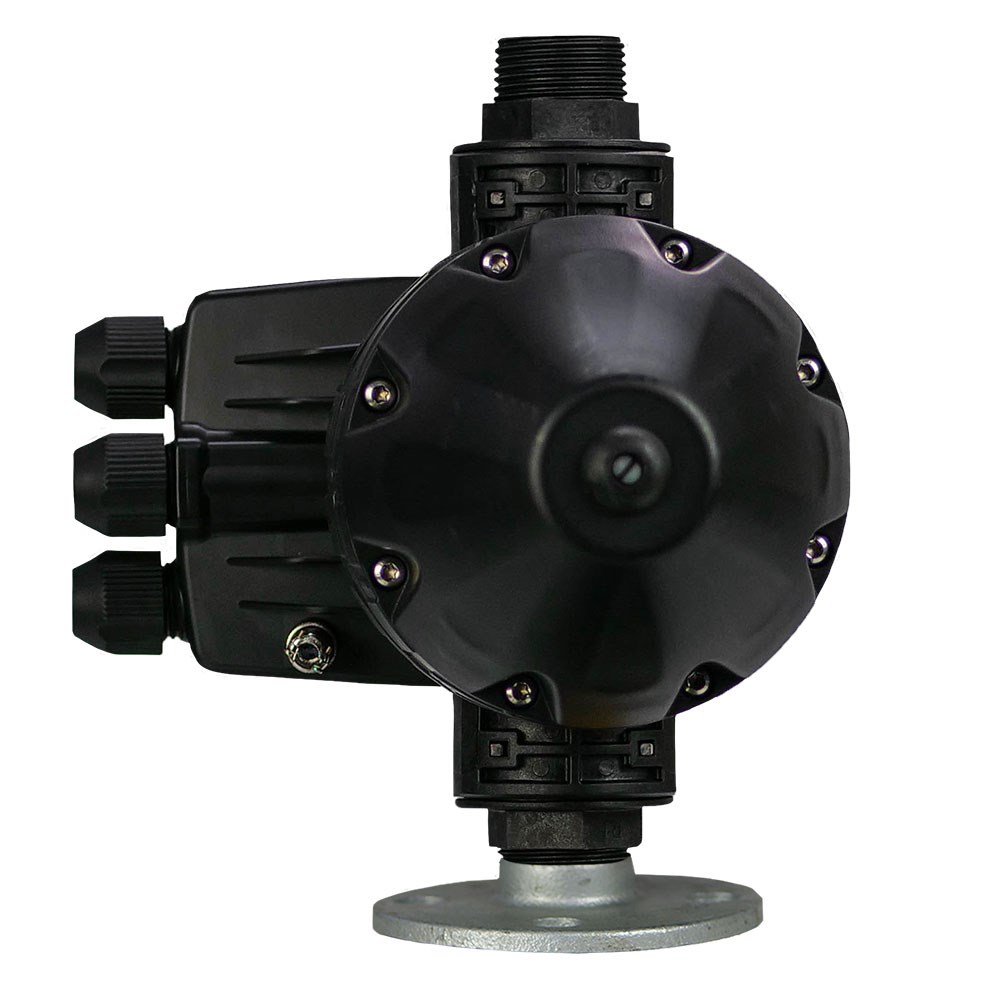

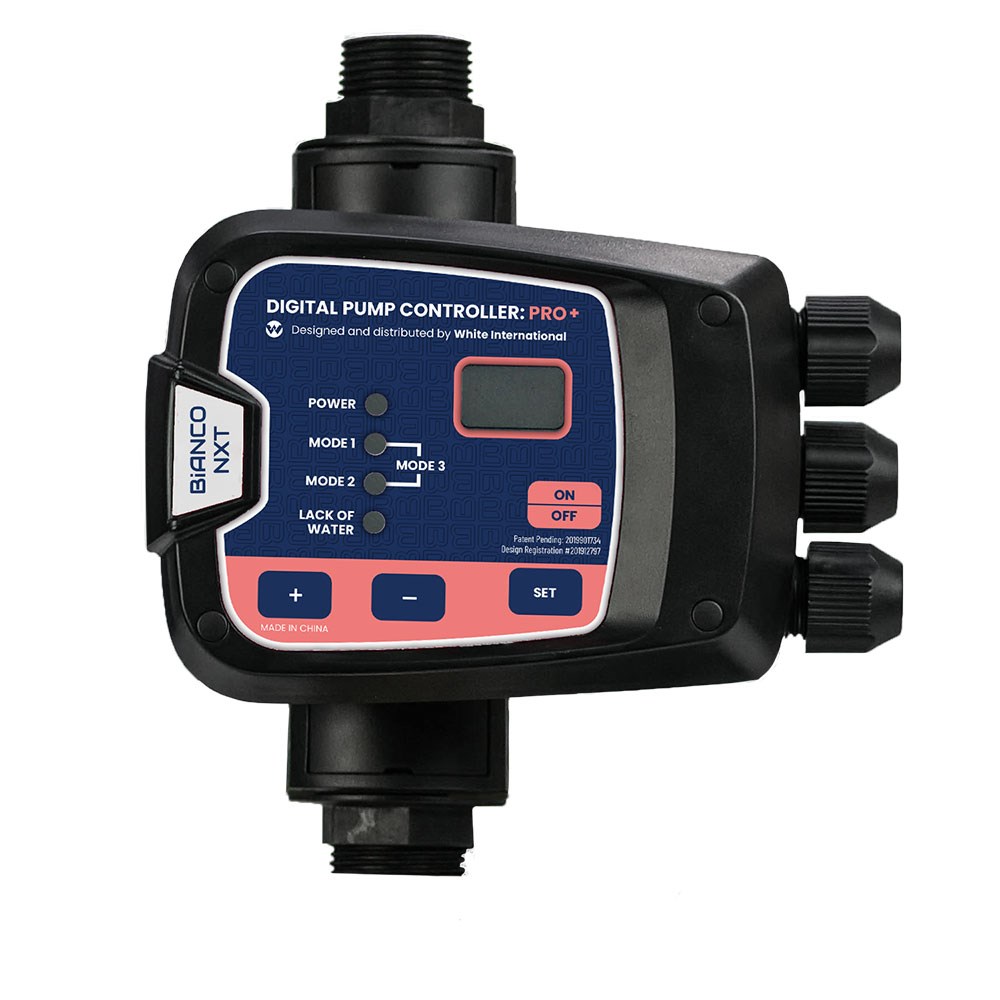

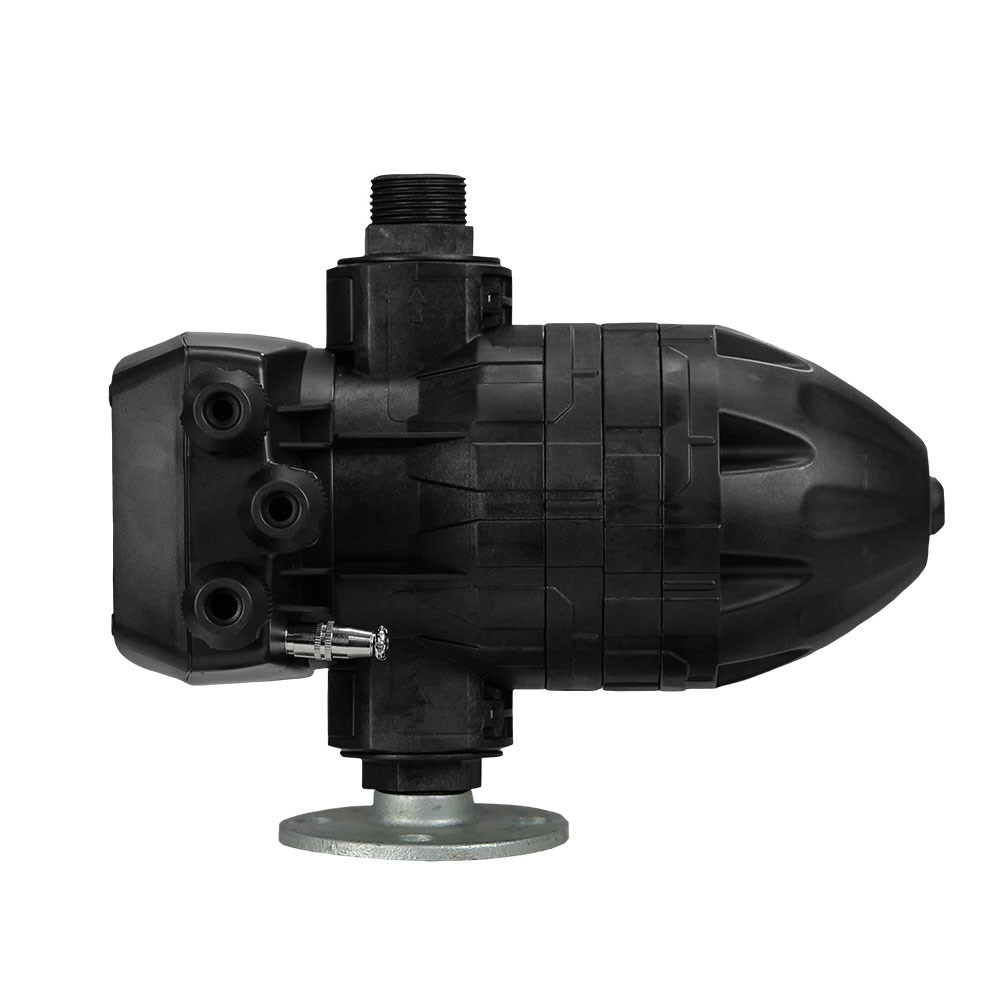

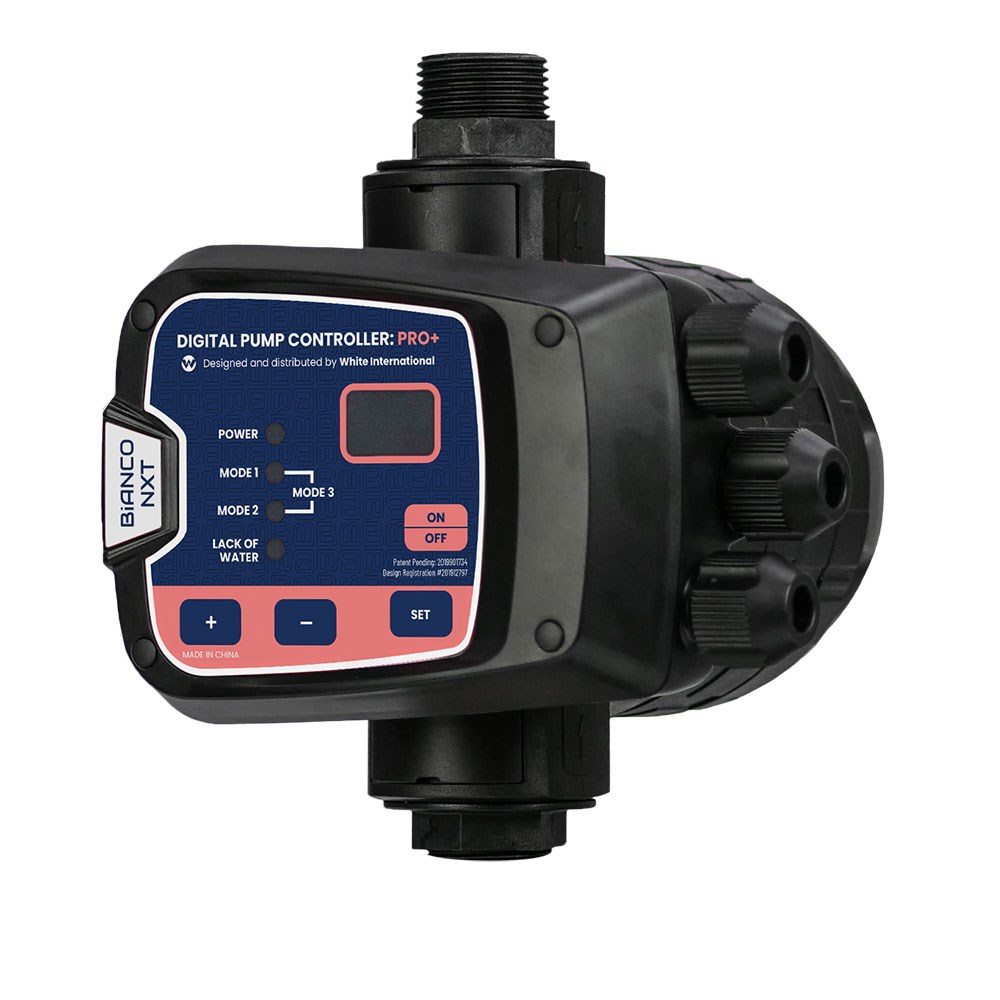

BIA-NXTPROPLUS - Bianco ICON nXt PRO PLUS Pump Controller

Code: 808036

Print
Product Code
BIA-NXTPROPLUS
RRP: $462.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco iCON nXt
Product Type Pump Controller
Bar 10 Bar
Kilo Watts 2.2 kW
Casing Material Technopolymer
Port Size Inlet 1" BSPM Inlet
Port Size Outlet 1" BSPM outlet
Volts 240 V
Pack Weight (KG):
0.00
Description

The nXt series of pump controls represents the next step in pressurised pump control.

Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as:

  • Household water supply
  • Irrigation
  • Water transfer
  • Washing systems
  • Pressure boosting

Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection

Three operational modes:

  • Mode One - Adjustable cut in pressure setting.
    • Controller stops pump when flow drops.
  • Mode Two - Adjustable cut in and cut out pressure.
    • Shut down governed by pressure. Requires pressure tank.
  • Mode Three - Duty/Assist dual pump pressure boosting.
    • Requires pressure tank.
NXT PRO PLUS
Function ON/OFF + Config + Comms
Modes 3
Size 2.2Kw
Rated Voltage 220-240V AC
Max Amps 16
Rated Power 2200w
Rating IP65
Union Size 1"
Start Pressure Adjustable
Stop Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Hardwired (No Cable)
Flylead for Pump -
Power Cable Hardwired (No Cable)
Communication ModBus RS485
Accessories (Sold Separately) 15 AMP Cable
1 ¼” Union Kit
