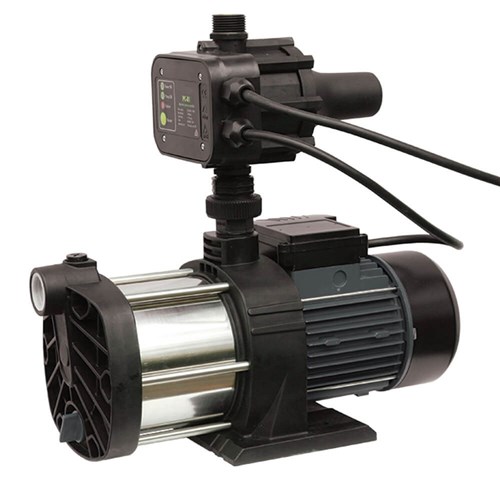

UP-MULTI1100PC - Universal Pumps Electronic Pressure System - 45m Max Head, 90L/minMax Flow

Order Code: 804910

Print
Product Code
UP MULTI1100PC
RRP: $1151.70 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Universal Pumps
Max Flow (L/min) 90
Max Head (m) 45m
Taps 8
Pack Weight (KG):
13.80
Description

The UP-MULTI1100 is a self-priming jet pump surface mounted pressure system with auto-restart electronic pump control for automatic operation.

The pump is characterised by:
Fully electronic pump controller for automatic pump starting, stopping and resart after power loss or water loss.

  • Dry run protection to prevent pump damage.
  • 2.2 bar cut in pressure.
  • Corrosion resistant pump components to ensure durability.
  • 240V single phase TEFC motor with built-in auto reset thermal overload to prevent the pump from overheating.

Applications:

  • Garden and Rainwater use.
  • Multi storey homes and high pressure applications
Features
Liquid:
  • Liquid Type: Clean Water
  • Clean water temperature range: 2 – 35oC
Materials:
  • Pump body: 304 Stainless Steel
  • Impeller, Jet/Venturi, Diffuser: Noryl Glass Reinforced
  • Mechanical seal: Carbon/Ceramic/Nitrile
  • O rings: Nitrile
  • Power Cable: 1.2m Cable H05 3G1.0
Installation:
  • Maximum ambient temperature: 40oC
  • Maximum operating pressure: 6 bar
  • Pipe connections suction/discharge: 1” BSPF / 1” BSPM
  • Dimensions: L495mm x D305mm x H480mm
Electrical data:
  • Rated voltage: 220 (-6%) - 240V (+6%)
  • Mains frequency: 50 Hz
  • P2 (shaft power) (kW): 1.1
  • Current: 8A
  • Capacitor: 16 uF
  • Motor duty: Continuous
  • Motor type: Asynchronous, TEFC
  • Motor protection: In-built thermal overload
  • Ingress protection: IPX4
  • Insulation class: F
Hydraulic Data:
  • Max Head: 45 m
  • Max Flow: 90 l/min
  • Number taps: 8
  • Weight: 14kg
