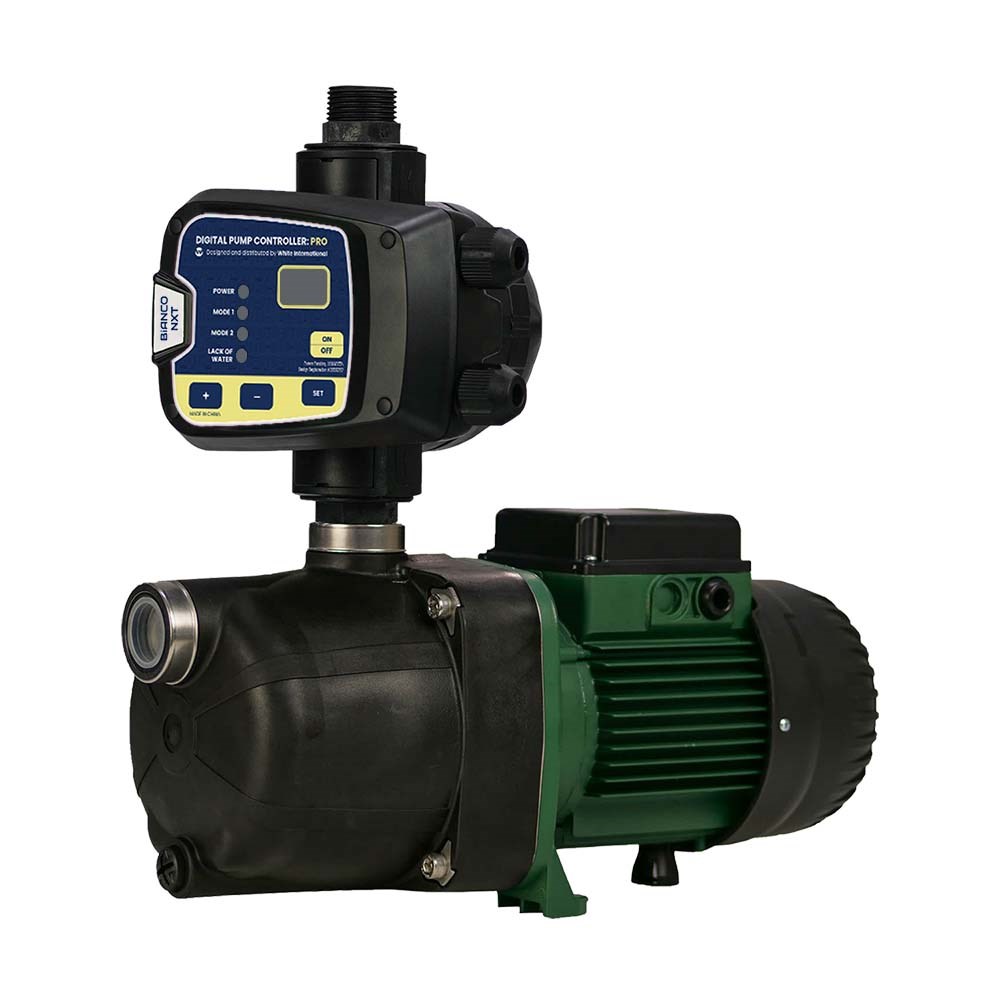

DAB-JETCOM102NXTP - DAB Pressure System with nXt PRO Pump Controller

Order Code: 808412

Print
Product Code
DAB JETCOM102NXTP
RRP: $990.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 5.3 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 1.0HP
kPa 527 kPa
Kilo Watts 0.75 kW
Head Range Category b. 40 - 59 m
Max Head (m) 53.8m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 6 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 750 W
Pack Weight (KG):
12.20
Description
DAB Surface Mounted - Jet Pump with NXT intelligent 2 mode controller

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

0.75kW, 1.0hp, 240V, max hd 53.8m, max flow 60L/m, 6 taps
Ports 1" BSPF In, 1" BSPM Out

Warranty
2 Year DAB Pumps Warranty
Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.


Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Modes

Two operational modes:

  • Mode One - Adjustable cut in pressure setting.
    • Controller stops pump when flow drops.
  • Mode Two - Adjustable cut in and cut out pressure.
    • Shut down governed by pressure. Requires pressure tank.


Controller Flow Curve


Controller Brochure
View Brochure


nXt PRO Controller Data
Function ON/OFF + Config
Modes 2
Size 2.2Kw
Rated Voltage 220-240V AC
Max Amps 16
Rated Power 2200w
Rating IP65
Union Size 1"
Start Pressure Adjustable
Stop Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) 15 AMP Cable
1 ¼” Union Kit
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
702109
DABSR00004187
702163
DABSR00010751
702158
DABSR00005107
702121
DABSR00004650
702084
DABSR00004017
702188
DABSR00005151
702161
DABSR00005110
702085
DABSR00004018
702157
DABSR00005106
702684
DABSR00010429
702083
DABSR00004016
702199
DABSR00005178
